Automated line for the preparation of ready-made lapshas quickly

INTRODUCTION

With advanced technology, compact structure, unique design and stable performance, the automatic ready-made noodle production line is based on similar products and demand in the world market. It requires high automation, convenient operation, low energy and small area, which ensures that all work procedures from flour feeding to finished products are performed once.

The investment for this line is only a tenth of that of large-scale equipment, especially suitable for small manufacturing enterprises. The corrugated ready-made noodles produced in this direction are durable, smooth and transparent. It is very easy to saturate with water.



EQUIPMENT LINE	FLOW TABLE
1. Dough mixer	Knead
2. Roller press	Formation
3. Boiling equipment	Boiling
4. Cutting equipment	Cutting
5. Electric fryer (steam fryer)	Fry
6. Cooler	Cooling
	Package



TECHNICAL PARAMETER:
Model	US-XH-II
Voltage	220 V, 50 Hz
Power	130-160 KW
Effective width	300 mm
Performance	11000 qadoq / 8 soat
Dimension	18960 x 1200 x 1200 mm



MIXER
	Mix flour and water and other raw materials.
Dimension	0.7 x 0.5 x 11 m
Power	3 KW
Capacity	25 kg / per time



FORMING PART
Shaping and cooking noodles.
Dimension	2.1 x 0.6 x 1.25 m
Power	3 KW
Capacity	60 - 80 kg / hour



STEAM AND CUT
	Cutting noodles piece by piece.
Boiling temperature	96 〜98℃
Dimension	11 x 0.44 x 1.25 m
Power	90 KW



FRYING
Frying noodles.
Power	84 KW
Dimension	3.3 x 0.6 x 1.3 m



	Cooling machine
Cooling length	3 m
Power	0.97 Kwt
Dimension	3.08 x 0.5 x 1.1 m

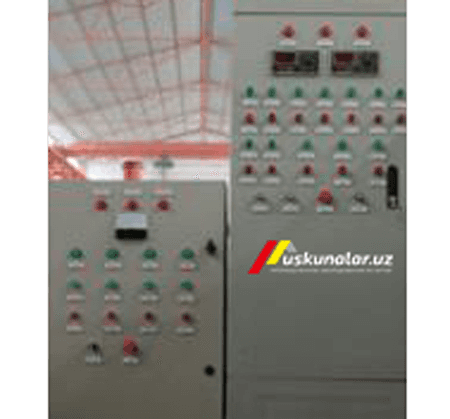

Control cabinet
Dimension	0.6 x 0.34 x 1 m



	Packaging equipment
Performance	11000 packs within 8 hours



PRODUCT DESCRIPTION:
