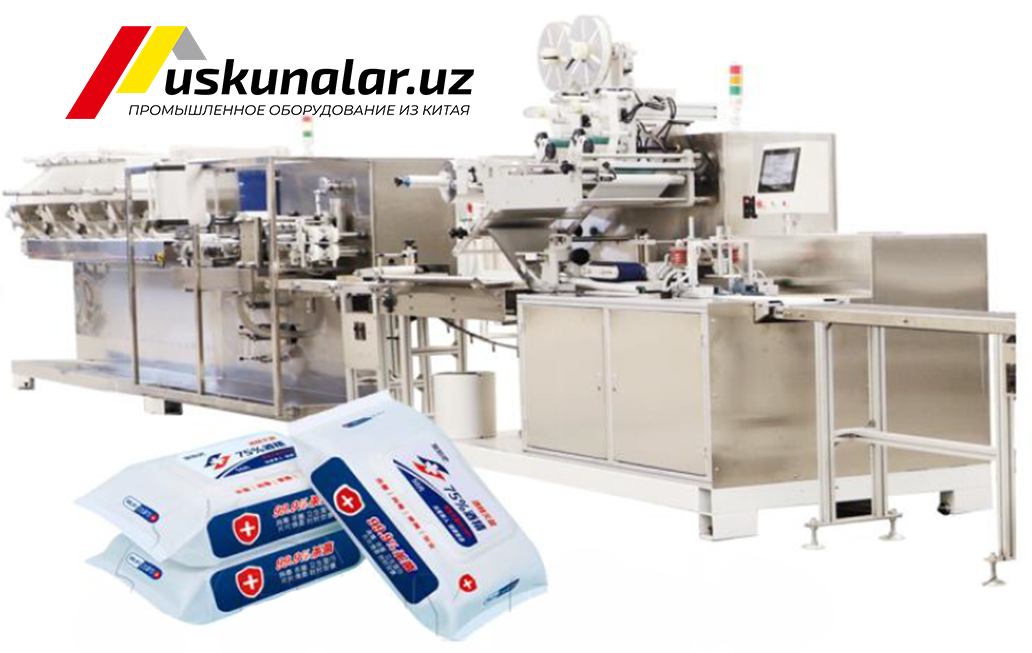

Wet Wipes Folding and Stacking Machine (6 lines)
Various industries in our country are developing day by day, and entrepreneurs are provided with business opportunities.
A napkin is one of the most used things in everyday life, and today's life requires its production. In addition, there is a growing demand for equipment for the production of wet wipes in accordance with global standards.
You can find more information about this line in the description below. The line consists of the following equipment:
1. Wet Wipes Folding Machine +Packaging Machine
2. 400L Water Tank
3. Auto Lid Applicator Machine (15-45 pack/min)
| Raw Material Rack | Slitting Part |
 |
 |
| Folding Part |
 |
| Liquid Filling Part |
 |
| Stacking Part |
 |
Main Technical Parameter:
| 1 | Capacity | 1500-2520pcs per min. (6 lanes, 300-420cutting times, 15-45packs/min basic on 60pcs/pack wet wipes) |
| 2 | Tissue material | 40-80g/ ㎡ airlay paper, spunlace /hot-rolling non-woven fabric |
| 3 | Raw Material Size | Φmax1100* W900-1200mm |
| 4 | Material Loading Device | ONE jumbo roll loading stations 6 lanes |
| 5 | Wet tissue unfolded size: | L100-180mm*W90-210mm (Support Customize) |
| 6 | Wet tissue folded size: | L110-120mm*W90-110mm (Support Customize) |
| 7 | Folding Way | “N” and “C”(customized) |
| 8 | Water Tank Size | 1 * 400L SUS304 stainless (normally) |
| 9 | Wetting System | Preset frequency full-auto continuous |
| 10 | Control System | Full servo drive system(6 Axis) |
| 11 | Total Power | 18KW |
| 12 | Power Supply | 380V 50/60HZ Three phase |
| 13 | Machine weight | 3000kgs |
| 14 | Machine dimension | 5500×2665×2230(L*W*H) |

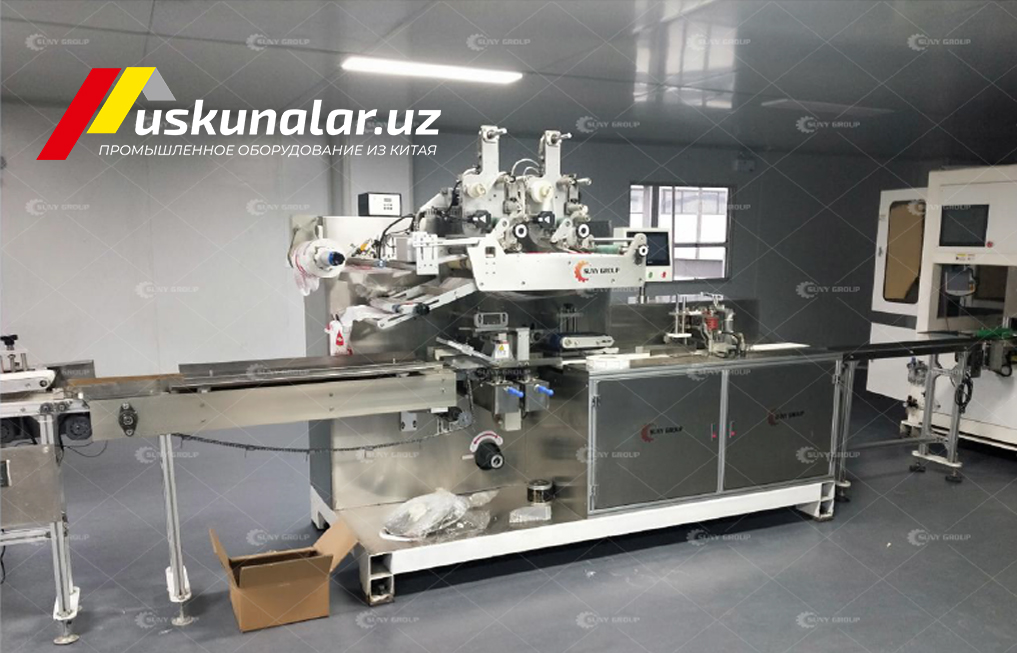

Automatic Packaging Machine
Main Technical Parameter:
| 1 | Capacity | 40packs/min |
| 2 | Tissue material | PP, OPP, PET, PE |
| 3 | Film Roll Width/Dia | W max380 / Φ max350mm |
| 4 | Label | Double label, Transparent/printed label |
| 5 | Packing size: | L 110-300mm*W80-120mm*H20-85mm |
| 6 | Film Loading Device | 1 roll loading stations |
| 7 | Control System | Full servo drive system(7 Axis) |
| 8 | Power Supply | 220V 50/60HZ single phase |
| 9 | Machine weight | 1000kgs |
| 10 | Machine dimension | 3700x1150x2160mm (L*W*H) |
Lid Applicator Machine
Main Technical Parameter:
| 1 | Capacity | 15-45pack/min, single sucker |
| 2 | Wastage | Less than 1% |
| 3 | Raw Material Requires | Plastic cover and labeling, hot melt adhesive |
| 4 | Applicable Lid Size | Width:≤80mm, Length≤120mm |
| 5 | Applicable Label size: | Width≤60mm，Diameter: ≤300mm |
| 6 | Control System | Full servo motor control + vision + cover correction control + automatic labeling control + automatic gluing |
| 7 | Total Power | 5KW |
| 8 | Power Supply | 220V 50/60HZ single phase |
| 9 | Machine dimension | 2600*1000*1660(L*W*H) |
| 10 | Machine Weight | 900Kgs |
If you are interested in our business tools and machines, you can contact us.
