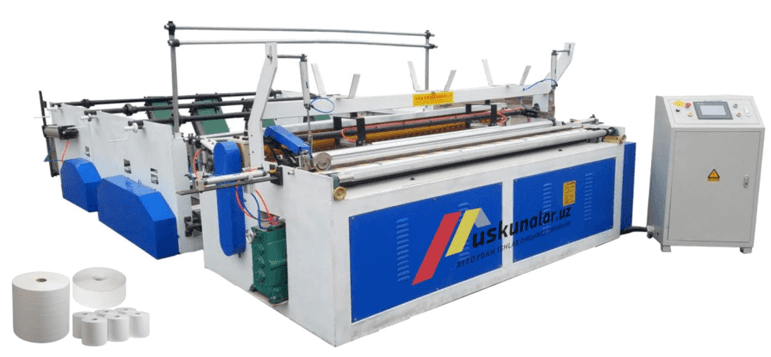

Toilet paper and paper napkin production line

Toilet paper and paper napkins are the most commonly used and most demanded hygiene products in social life. This line serves for the production of such tools. The production capacity of the large-to-small wrapping machine is 1.5t/h, the original paper width is 1800mm, the motor power is 5KW, and the dimensions are 6500*3100*1900mm.

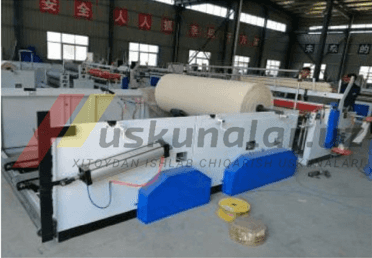

Wrapping equipment from large to small packages

General parameters
Original paper width	1800mm
Production volume	1.5t / 8h
Engine power	5KW
Auxiliary power	0.75KW
Dimensions	6500*3100*1900
Weight	2000kg

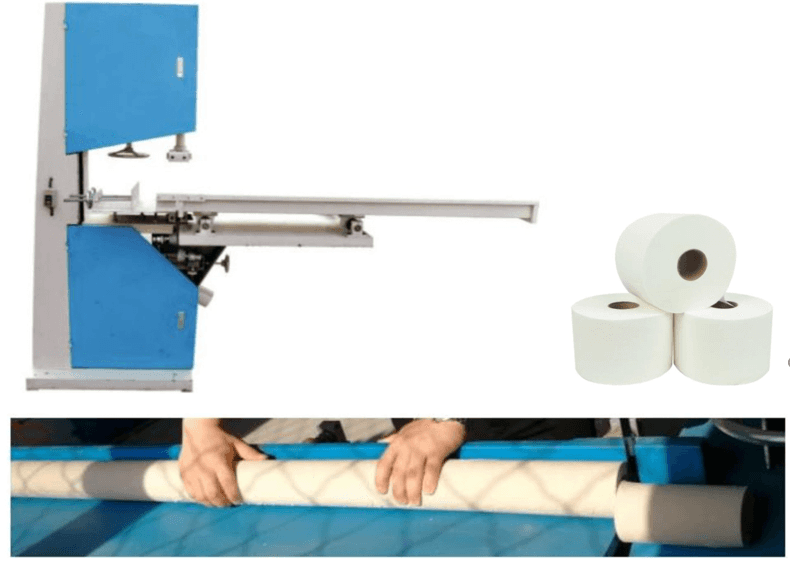

Small package cutting equipment

General parameters
Cutting length	changable
Production volume	2t / a day
Saw blade length	3750mm
Power source	1.5KW
Dimensions	2000*700*1800mm
Weight	460kg

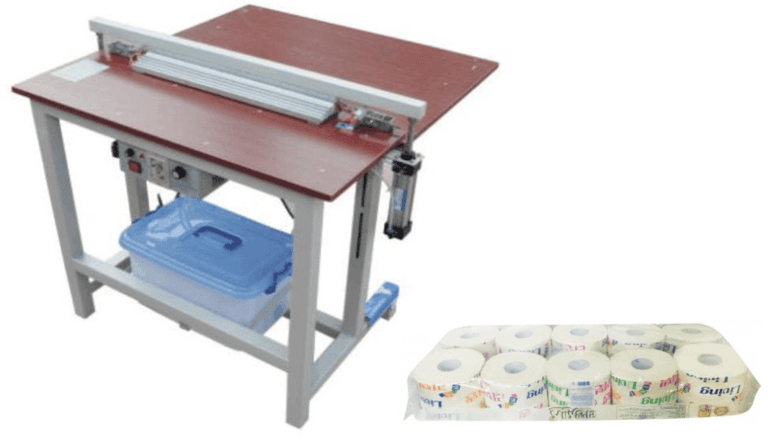

Equipment for packing toilet paper into bundles

General parameters
Power	220V
Pump capacity	0.15KW
Compression width	450mm
The width of the small heating wire	6mm
Diameter of round heating wire	0.5mm
Dimensions	750*700*800mm
Weight	40kg

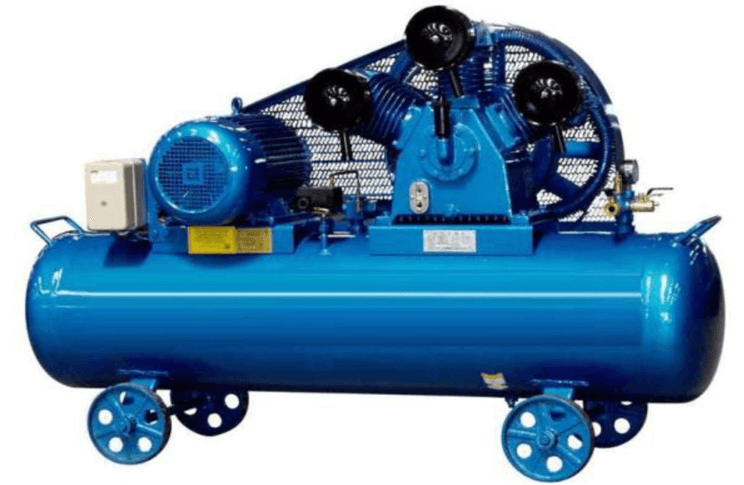

Air compressor

Basic parametres
Air pressure	0.6m3
Power	4KW
Speed	2890 r/ min
Voltage	380V
