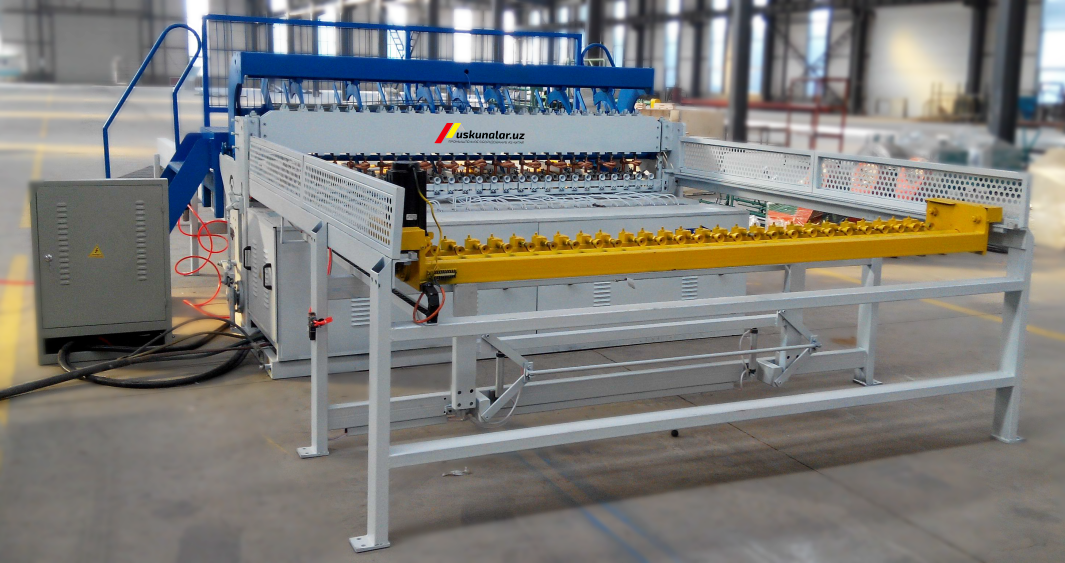

Euro mesh production line 2.4*2.5 m
Various means are used to fence off a certain area, i.e. bricks, concrete barriers, barbed wire, etc. But they cause inconvenience and take a lot of time. Using these euro meshes instead is both time saving and hassle free. This line serves for the production of such euro meshes, and meshes are formed by welding metal wires with a diameter of 2.5 mm to 5 mm. The maximum height of wire meshes is 2.4 m, and the width is 2.5 m.
| Basic parameters | |||
| Welding wire diameter | 2.5-5 mm | Welding speed | 65-75 time/min |
| Width of mesh | 2500 mm | Welding spot number | 48 |
| Mesh size | 50-300 mm | Power | 125kva |
| Weight | 5.5 t |
Dimension |
13*3.8*2.5 m |
| Rated voltage | 380V± 10%, 3 phase, 50Hz | Welding power | 380V/50Hz, |
| Welding transformer | 125KVA*7 (water coling) | Welding time | 10 ms - 100 ms |
| Power line connected | 3 pcs 200mm2 li aluminum wire | ||
| Line parts | |
 |

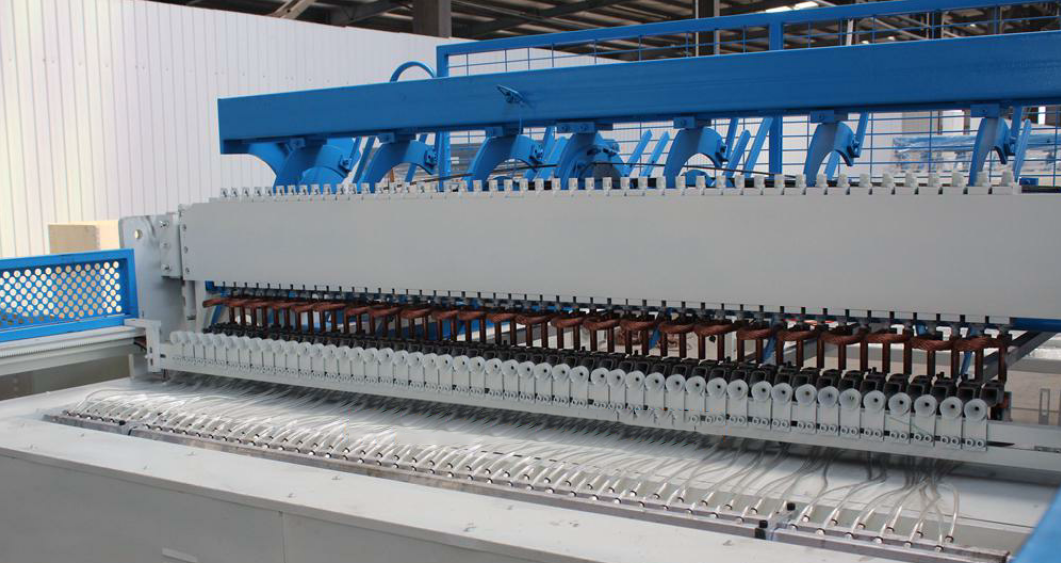

Wire welding part. This part serves for welding the wires together. It is equipped with a water cooling system so that the equipment does not overheat during continuous operation. .............................................................................................................................. |
 |
Wire transfer part. This part automatically feeds the wire to the welding part. |
 |

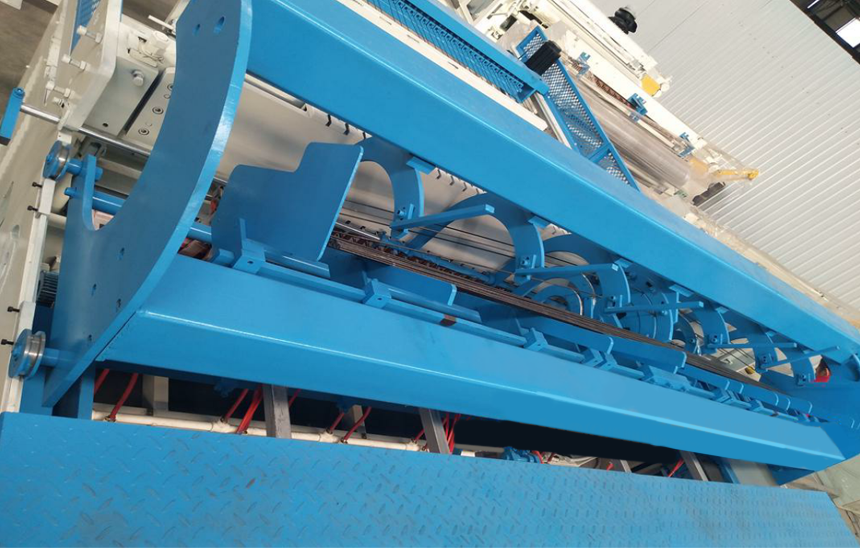

Cross-wire auto-falling part This section leads the wires in a crosswise pattern to the upper and lower welders. |
 |

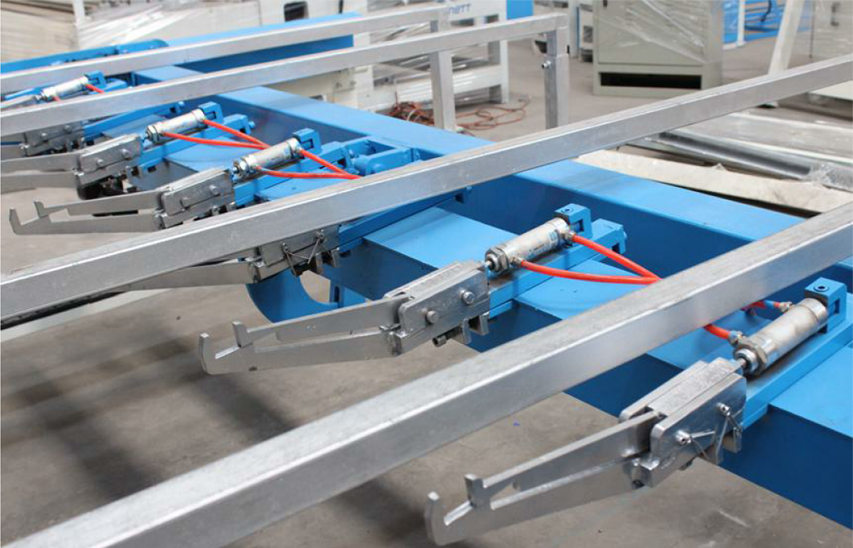

Mesh pulling part. This part automatically pulls out the welded nets with a hook. |
 |
PLC control box This unit is used to control the above equipment and is supervised by one worker. |

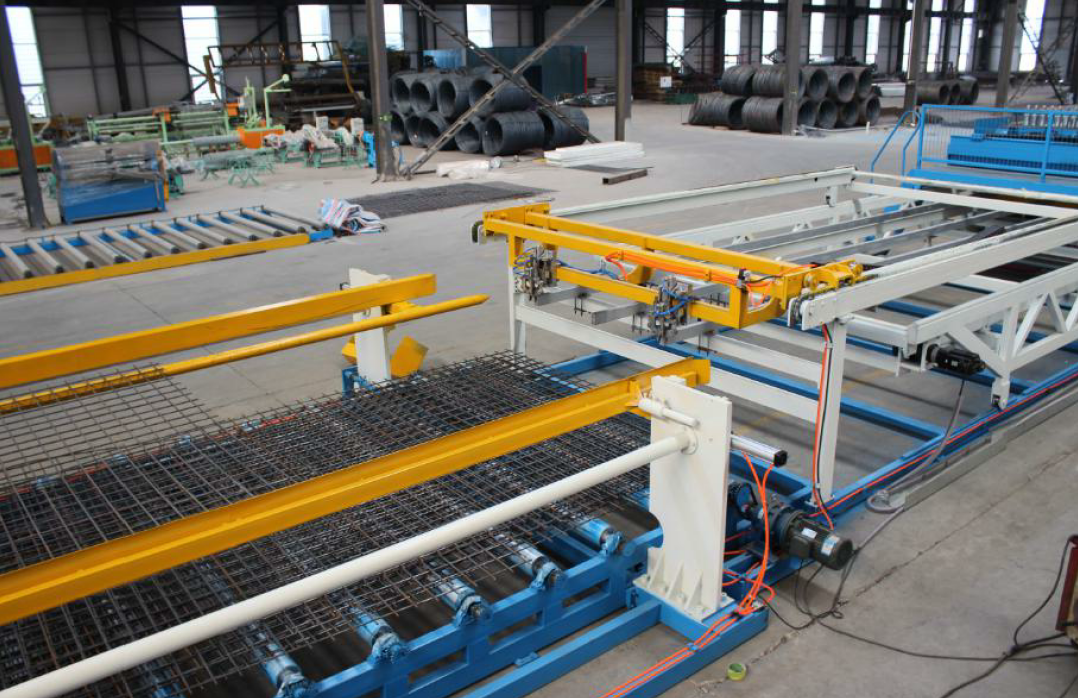

| Automatic stacking device (choose or not as you need) | |
 |
Automatic mesh drawing part. This part pulls the meshes that have been welded to itself and transfers it to the place where the mesh is collected. |
 |
Automatic mesh pulling part. In this part, all the products are collected and it is very easy to move them. |

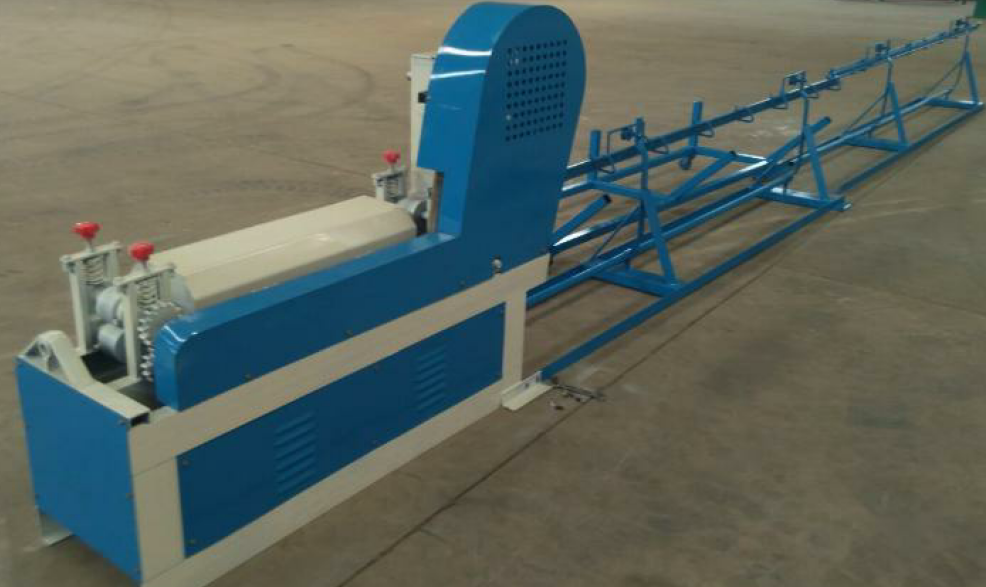

| Wire starightening and cutting machine (auxiliary) | ||
 |
Wire diameter................................................................ | 3-6 mm....................................................................................... |
| Speed | 40 m/min | |
| Cutting type | mechanical | |

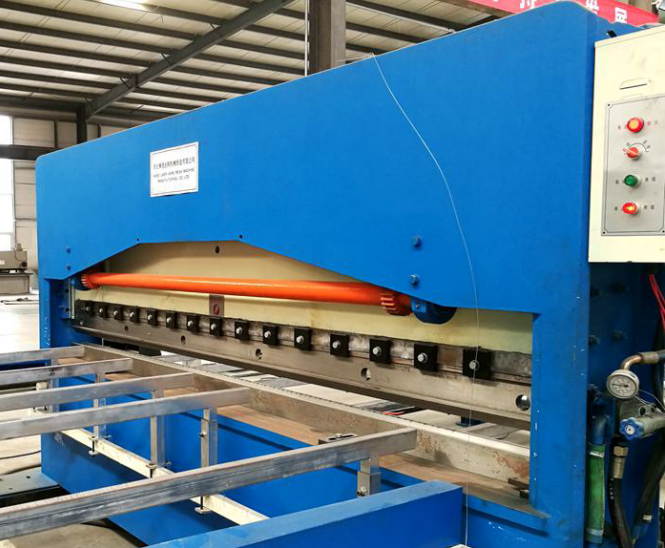

| Mesh bending machine (press) | ||
 |
Nominal pressure.................................................................. | 125 t........................................................................................... |
| Bending width | 2500 mm | |
| Working process | 120 mm | |
| Power | 11 kW | |
| Voltage | 380V, 50Hz, 3 phase | |
| Dimensions | 3340*1000*2100 mm | |
| Weight | 3 t | |
