Grid ceiling roll-forming machine

Day by day, the types and number of building materials are increasing. Also, the construction is dominated by decorations in the style of minimalism. The checkered grid ceilings produced by this line are a modern solution for ceiling decoration. The installation of this bed takes less time and is convenient. Detailed parameters are covered in the description below.





Basic parameters
Profile		Coil thickness: 0.2-0.4 mm
		Coil material: galvanized sheet

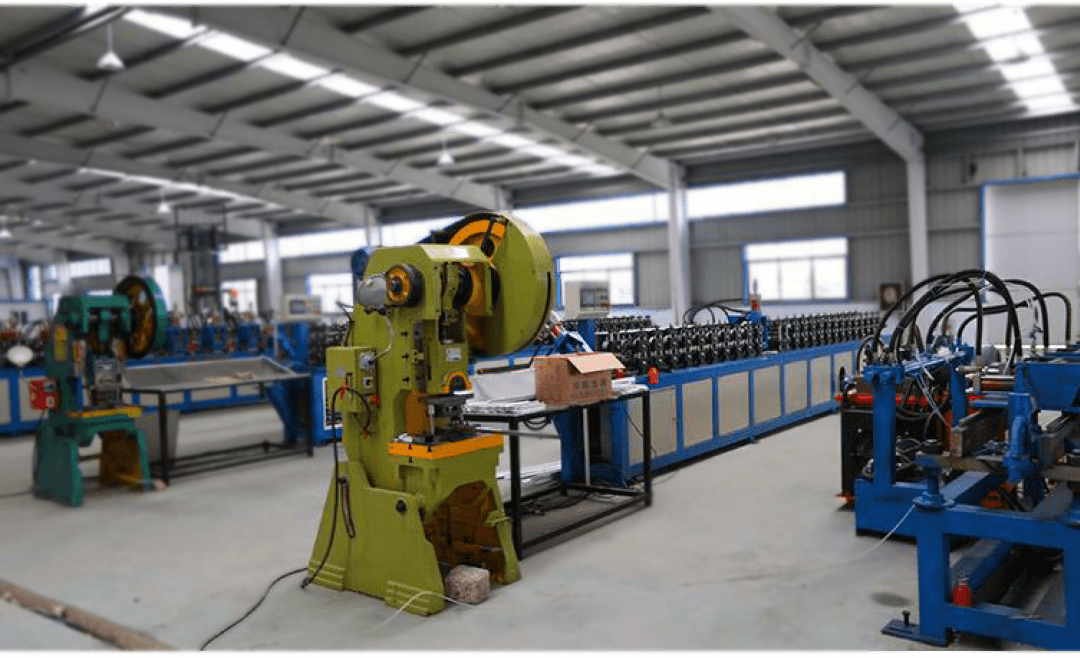

Process flow		decoiling - feeding - forming - cutting - production
Manual decoiler		Max. inner diameter: 280-550 mm
		Max. coil width: 300 mm
		Carrying capacity: 1.5 t

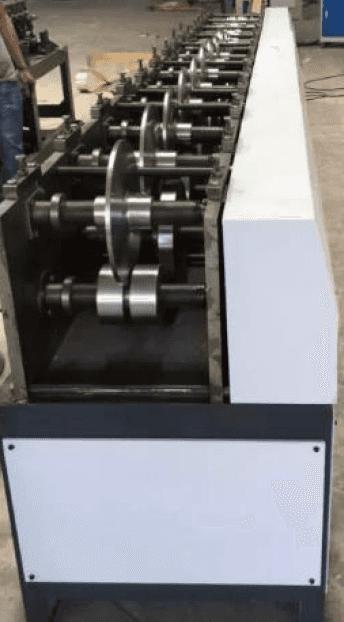

Forming device.........................................................	..	Shaft material: steel; outer diameter 50 mm
		Forming rollers: 13 pairs
		Forming speed: 15-20 m/min
		Main motor power: 3 kW...............................................................................
Hydraulic cutting device		hydraulic station: 1 set
		Motor power: 3 kW
		Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting, no wasting and high level safety factor
Controlling device		Computer is used to control length and quantity. Machine will autmatically cut to length and stop when required quantity is achieved

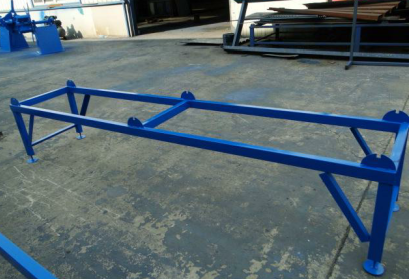

Simple output frame		Easy to stack products.

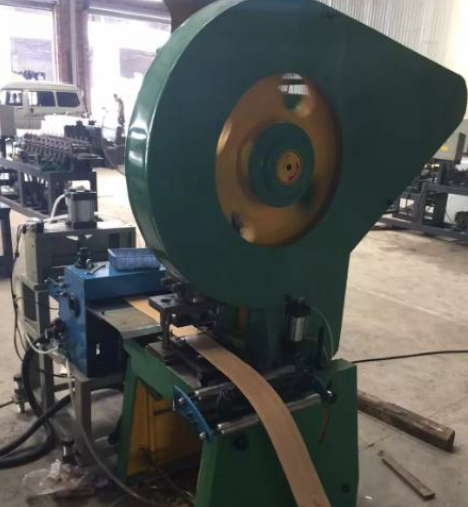

16t punching machine		Punching machine with 2 set mould.
