Non woven production line for quilt

There are many types of lines and equipment and one of them is this line, fiber processing equipment. The line treats these products to be suitable for bedding. The line consists of equipment that performs various tasks: it performs tasks such as tying the fiber, collecting it, gluing it together, straightening it, cutting it and filling a certain package with the product.





Basic parameters

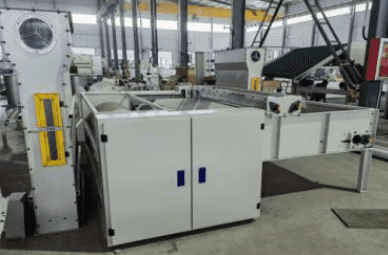

Opening machine
	Working width........................................................................................	1300 mm................................................
	Capacity	150-300 kg/hour
	Dia of feeding roller	86 mm
	Dia of opening roller	400 mm
	Feeding power	1.5 kW
	Opening roller power	7.5 - 5.5 kW
	Fan	4 - 5.5 kW

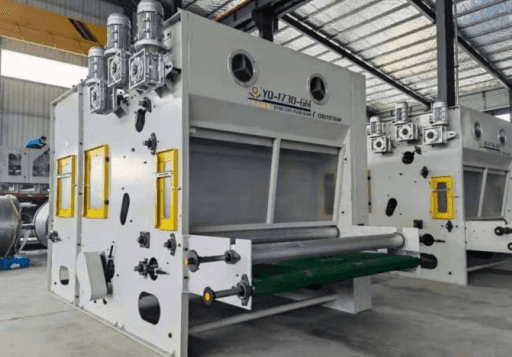

Fiber feeding machine
This machine is used to transported the fiber (after opening and blending) to the carding machine for the next process
	Working width	1670 mm
	Dimension	2700*2200*2100 mm
	Weight	1.8 t
	Capacity	150-300 kg/hour
	Power	5.25 kW

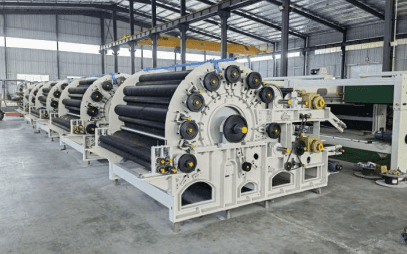

Doffer carding machine
	Working width	1850 mm
	Capacity	100-450 kg/hour
	Dia of cylinder	1230 mm
	Dia of feeding roller	86 mm
	Cylinder power	18.5 kW
	Ventilyator quvvati	4 kW

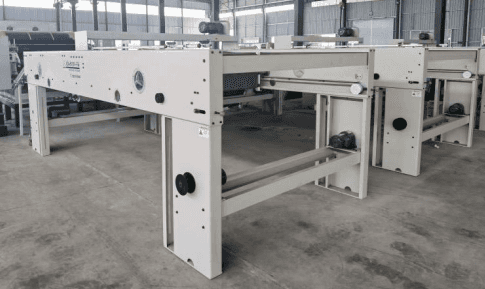

Cross lapping machine
	Working width	input: 2100 mm; output: 3200 mm
	Lapping speed	max. 40 m/min
	Reciprocating motor	4 kW
Quilt filling machine
The equipment serves to put the finished product in a specific package or folder
	Working width	3200 mm
	Working speed	3-15 m/min
	Power	3.0 kW
	Dimension	4500*3600*1300 mm
	Weight	1.5 t
