This line is not small in size, and at the same time, it consists of different parts that perform different tasks. The manufactured product is widely used for various purposes. The equipment has a production rate of 50 kg to 60 kg of plastic ropes per hour. Each part is explained separately in the description below.

Это линия имеет немалые размеры и в то же время состоит из разных частей, выполняющих разные задачи. Выпускаемый продукт широко используется в различных целях. Производительность оборудования составляет от 50 до 60 кг пластиковых канатов в час. Каждая часть объясняется отдельно в описании ниже.

Ushbu uskuna kichik hajmli emas va shu bilan birga har xil vazifalarni bajaruvchi turli qismlardan tashkil topgan. Ishlab chiqariladigan mahsulot turli maqsadlarda keng foydalaniladi. Uskuna soatiga 50 kg dan 60 kg gacha plastik arqonlar ishlab chiqarish tezligiga ega. Quyidagi tavsifda har bir qism alohida yoritilgan.

This line is not small in size, and at the same time, it consists of different parts that perform different tasks. The manufactured product is widely used for various purposes. The equipment has a production rate of 50 kg to 60 kg of plastic ropes per hour. Each part is explained separately in the description below.

&nbsp;

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="3" style="background-color:#000000; text-align:center">Basic parameters</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Extruder for yarn production</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="15"><img src="/media/uploads/2024/01/15/qoplar-uchun-rulonli-ip-xomashyosini-ishlab-chiqarish-uskunasi.png" style="height:100%; width:100%" /></td>
			<td>Screw diameter...............................................................</td>
			<td>110 mm......................................................................</td>
		</tr>
		<tr>
			<td>Screw speed</td>
			<td>10-55 rpm</td>
		</tr>
		<tr>
			<td>Motor power</td>
			<td>18 kW</td>
		</tr>
		<tr>
			<td>Heating power</td>
			<td>24 kW</td>
		</tr>
		<tr>
			<td>Mold width</td>
			<td>600 mm</td>
		</tr>
		<tr>
			<td>Drum diameter</td>
			<td>320 mm</td>
		</tr>
		<tr>
			<td>Number of heating plates</td>
			<td>2 pcs</td>
		</tr>
		<tr>
			<td>Heating capacity of plates</td>
			<td>15 kW</td>
		</tr>
		<tr>
			<td>Production capacity</td>
			<td>30-80 kg/hour</td>
		</tr>
		<tr>
			<td>Winding speed</td>
			<td>20-150 m/min</td>
		</tr>
		<tr>
			<td>The number of winding bobbins</td>
			<td>12 pcs</td>
		</tr>
		<tr>
			<td>Maximum load capacity</td>
			<td>98 kW</td>
		</tr>
		<tr>
			<td>Normal working capacity</td>
			<td>64 kW</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>8000 kg</td>
		</tr>
		<tr>
			<td>Size</td>
			<td>23500*2500*1800 mm</td>
		</tr>
		<tr>

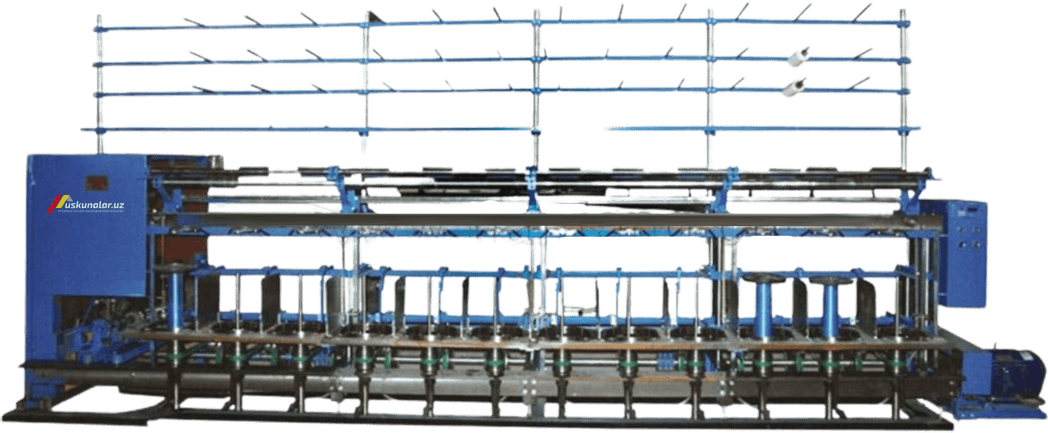

			<td colspan="3" style="text-align:center">Winding machine</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/polietilen-arqon-ishlab-chiqarish-liniyasi-50-60-kg-soat.png" style="height:100%; width:100%" /></td>
			<td>Working speed</td>
			<td>1800-2100 rpm</td>
		</tr>
		<tr>
			<td>Number of winding spindles</td>
			<td>24</td>
		</tr>
		<tr>
			<td>The distance between the spindles</td>
			<td>250 mm</td>
		</tr>
		<tr>
			<td>Size of bobbins</td>
			<td>8 inch</td>
		</tr>
		<tr>
			<td>Wnding speed</td>
			<td>33-275</td>
		</tr>
		<tr>
			<td>Motor power</td>
			<td>11 kW</td>
		</tr>
		<tr>

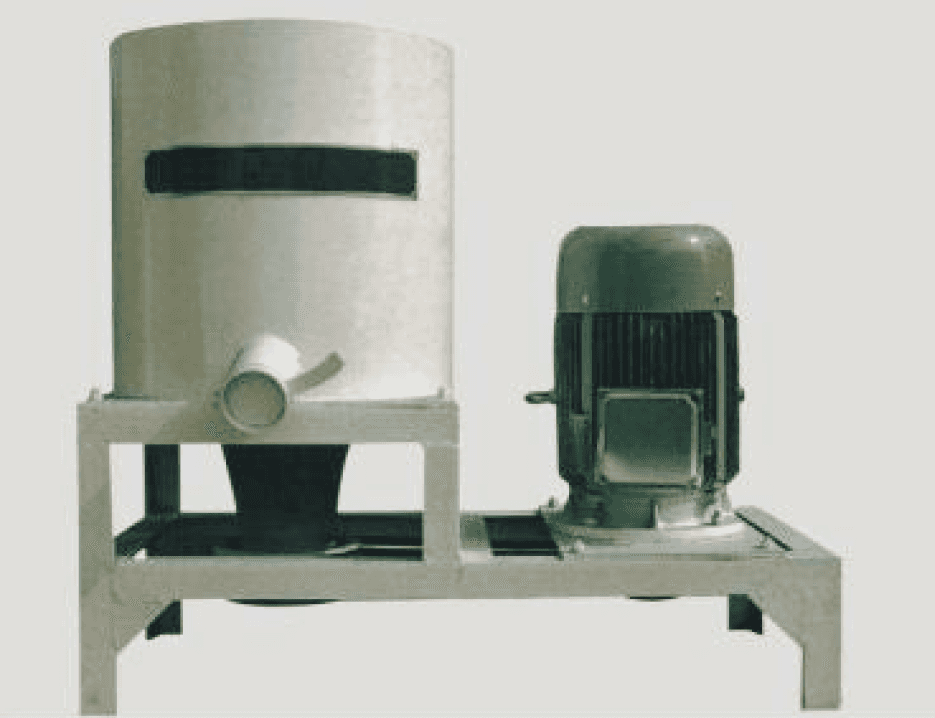

			<td colspan="3" style="text-align:center">Mixer</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="4"><img src="/media/uploads/2024/01/15/image_2024-01-12_10-42-35.png" style="height:100%; width:100%" /></td>
			<td>Mixing capcity</td>
			<td>150-300 kg/hpur</td>
		</tr>
		<tr>
			<td>Motor power</td>
			<td>15 kW</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>500 kg</td>
		</tr>
		<tr>
			<td>Dimension</td>
			<td>1500*600*1400 mm</td>
		</tr>
		<tr>

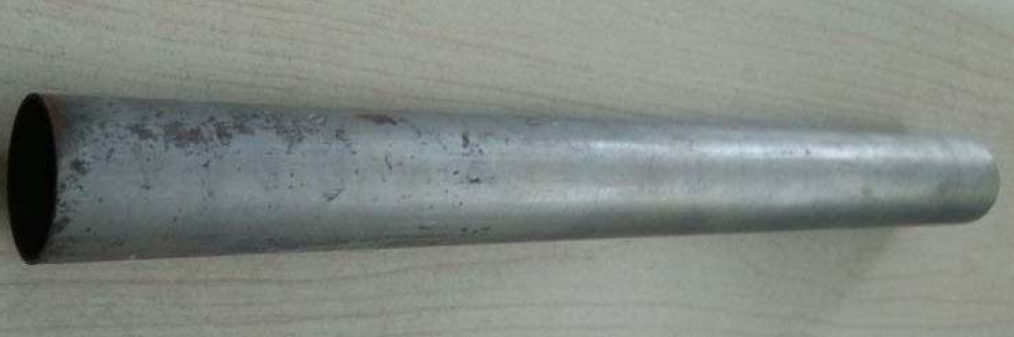

			<td colspan="3" style="text-align:center">Metal bobbin</td>
		</tr>
		<tr>
			<td colspan="1"><img src="/media/uploads/2024/01/15/image.png" style="height:100%; width:100%" /></td>
			<td>Max weight of winding</td>
			<td>25 kg</td>
		</tr>
		<tr>

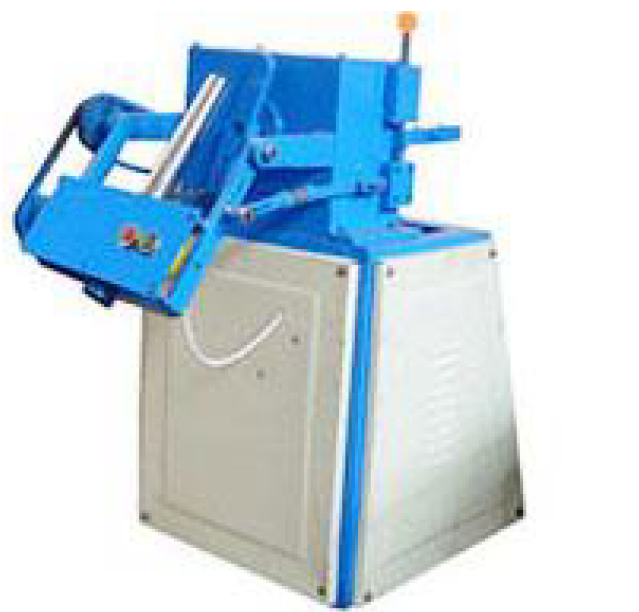

			<td colspan="3" style="text-align:center">Machine for making skeins</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/image_2024-01-15_11-37-12_tTKGeMp.png" style="height:100%; width:100%" /></td>
			<td>Wrking speed</td>
			<td>700 rpm</td>
		</tr>
		<tr>
			<td>Power</td>
			<td>0.75 kW</td>
		</tr>
		<tr>
			<td>Finished product size</td>
			<td>250*250 mm</td>
		</tr>
		<tr>
			<td>Machine dimension</td>
			<td>720*720*650 mm</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>80 kg</td>
		</tr>
		<tr>
			<td>Capacity</td>
			<td>2 pcs/min</td>
		</tr>
	</tbody>
</table>

&nbsp;

Это линия имеет немалые размеры и в то же время состоит из разных частей, выполняющих разные задачи. Выпускаемый продукт широко используется в различных целях. Производительность оборудования составляет от 50 до 60 кг пластиковых канатов в час. Каждая часть объясняется отдельно в описании ниже.

&nbsp;

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="3" style="background-color:#000000; text-align:center">Общие параметры</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Экструдер для производства пряжи</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="15"><img src="/media/uploads/2024/01/15/qoplar-uchun-rulonli-ip-xomashyosini-ishlab-chiqarish-uskunasi.png" style="height:100%; width:100%" /></td>
			<td>Диаметр винта...............................................................</td>
			<td>110 мм......................................................................</td>
		</tr>
		<tr>
			<td>Скорость винта</td>
			<td>10-55 об/мин</td>
		</tr>
		<tr>
			<td>Мощность двигателя</td>
			<td>18 кВт</td>
		</tr>
		<tr>
			<td>Мощность нагрева</td>
			<td>24 кВт</td>
		</tr>
		<tr>
			<td>Ширина формы</td>
			<td>600 мм</td>
		</tr>
		<tr>
			<td>Диаметр барабана</td>
			<td>320 мм</td>
		</tr>
		<tr>
			<td>Количество нагревательных пластин</td>
			<td>2 шт.</td>
		</tr>
		<tr>
			<td>Теплопроизводительность пластин</td>
			<td>15 кВт</td>
		</tr>
		<tr>
			<td>Производственная мощность</td>
			<td>30-80 кг/ч</td>
		</tr>
		<tr>
			<td>Скорость намотки</td>
			<td>20-150 м/мин</td>
		</tr>
		<tr>
			<td>Количество обмоточных бобины</td>
			<td>12</td>
		</tr>
		<tr>
			<td>Максимальная допустимая нагрузка</td>
			<td>98 кВт</td>
		</tr>
		<tr>
			<td>Нормальная рабочая мощность</td>
			<td>64 кВт</td>
		</tr>
		<tr>
			<td>Масса</td>
			<td>8000 кг</td>
		</tr>
		<tr>
			<td>Размер</td>
			<td>23500*2500*1800 мм</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Оборудование для намотки</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/polietilen-arqon-ishlab-chiqarish-liniyasi-50-60-kg-soat.png" style="height:100%; width:100%" /></td>
			<td>Скорость работы</td>
			<td>1800-2100 об/мин</td>
		</tr>
		<tr>
			<td>Количество намоточных шпинделей</td>
			<td>24</td>
		</tr>
		<tr>
			<td>Расстояние между шпинделями</td>
			<td>250 мм</td>
		</tr>
		<tr>
			<td>Размер бобины</td>
			<td>8 дюймов</td>
		</tr>
		<tr>
			<td>Скорость намотки</td>
			<td>33-275</td>
		</tr>
		<tr>
			<td>Мощность двигателя</td>
			<td>11 кВт</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Миксер</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="4"><img src="/media/uploads/2024/01/15/image_2024-01-12_10-42-35.png" style="height:100%; width:100%" /></td>
			<td>Скорость смешивания</td>
			<td>150-300 кг/ч</td>
		</tr>
		<tr>
			<td>Мощность двигателя</td>
			<td>15 кВт</td>
		</tr>
		<tr>
			<td>Масса</td>
			<td>500 кг</td>
		</tr>
		<tr>
			<td>Размер</td>
			<td>1500*600*1400 мм</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Металлическая бобинa</td>
		</tr>
		<tr>
			<td colspan="1"><img src="/media/uploads/2024/01/15/image.png" style="height:100%; width:100%" /></td>
			<td>Макс. вес рулона</td>
			<td>25 кг</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Оборудование для производства ниток в виде катушки (рулона).</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/image_2024-01-15_11-37-12_tTKGeMp.png" style="height:100%; width:100%" /></td>
			<td>Скорость работы</td>
			<td>700 об/мин</td>
		</tr>
		<tr>
			<td>Мощность</td>
			<td>0.75 кВт</td>
		</tr>
		<tr>
			<td>Размер готового изделия</td>
			<td>250*250 мм</td>
		</tr>
		<tr>
			<td>Размер оборудования</td>
			<td>720*720*650 мм</td>
		</tr>
		<tr>
			<td>Масса</td>
			<td>80 кг</td>
		</tr>
		<tr>
			<td>Производственная мощность</td>
			<td>2 ед./мин.</td>
		</tr>
	</tbody>
</table>

&nbsp;

Ushbu liniya kichik hajmli emas va shu bilan birga har xil vazifalarni bajaruvchi turli qismlardan tashkil topgan. Ishlab chiqariladigan mahsulot turli maqsadlarda keng foydalaniladi. Uskuna soatiga 50 kg dan 60 kg gacha plastik arqonlar ishlab chiqarish tezligiga ega. Quyidagi tavsifda har bir qism alohida yoritilgan.

&nbsp;

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="3" style="background-color:#000000; text-align:center">Umumiy parametrlar</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Ip ishlab chiqarish uchun ekstruder</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="15"><img src="/media/uploads/2024/01/15/qoplar-uchun-rulonli-ip-xomashyosini-ishlab-chiqarish-uskunasi.png" style="height:100%; width:100%" /></td>
			<td>Vint diametri...............................................................</td>
			<td>110 mm......................................................................</td>
		</tr>
		<tr>
			<td>Vint tezligi</td>
			<td>10-55 oborot/min</td>
		</tr>
		<tr>
			<td>Motor quvvati</td>
			<td>18 kW</td>
		</tr>
		<tr>
			<td>Qizdirish quvvati</td>
			<td>24 kW</td>
		</tr>
		<tr>
			<td>Qolip kengligi</td>
			<td>600 mm</td>
		</tr>
		<tr>
			<td>Baraban diametri</td>
			<td>320 mm</td>
		</tr>
		<tr>
			<td>Qizdiruvchi platalar soni</td>
			<td>2 dona</td>
		</tr>
		<tr>
			<td>Platalarning qizdirish quvvati</td>
			<td>15 kW</td>
		</tr>
		<tr>
			<td>Ishlab chiqarish quvvati</td>
			<td>30-80 kg/soat</td>
		</tr>
		<tr>
			<td>O&#39;rash tezligi</td>
			<td>20-150 m/min</td>
		</tr>
		<tr>
			<td>O&#39;rovchi bobinalar soni</td>
			<td>12 ta</td>
		</tr>
		<tr>
			<td>Maksimal yuklanma quvvati</td>
			<td>98 kW</td>
		</tr>
		<tr>
			<td>Normal ishlash quvvati</td>
			<td>64 kW</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>8000 kg</td>
		</tr>
		<tr>
			<td>O&#39;lchami</td>
			<td>23500*2500*1800 mm</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">O&#39;rash uskunasi</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/polietilen-arqon-ishlab-chiqarish-liniyasi-50-60-kg-soat.png" style="height:100%; width:100%" /></td>
			<td>Ishlash tezligi</td>
			<td>1800-2100 oborot/min</td>
		</tr>
		<tr>
			<td>O&#39;rovchi shpindellar soni</td>
			<td>24 ta</td>
		</tr>
		<tr>
			<td>Shpindellar orasidagi masofa</td>
			<td>250 mm</td>
		</tr>
		<tr>
			<td>Bobinalar o&#39;lchami</td>
			<td>8 dyum</td>
		</tr>
		<tr>
			<td>O&#39;rash tezligi</td>
			<td>33-275</td>
		</tr>
		<tr>
			<td>Motor quvvati</td>
			<td>11 kW</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Mikser</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="4"><img src="/media/uploads/2024/01/15/image_2024-01-12_10-42-35.png" style="height:100%; width:100%" /></td>
			<td>Aralashtirish tezligi</td>
			<td>150-300 kg/soat</td>
		</tr>
		<tr>
			<td>Motor quvvati</td>
			<td>15 kW</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>500 kg</td>
		</tr>
		<tr>
			<td>O&#39;lchami</td>
			<td>1500*600*1400 mm</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Metal bobina</td>
		</tr>
		<tr>
			<td colspan="1"><img src="/media/uploads/2024/01/15/image.png" style="height:100%; width:100%" /></td>
			<td>Maks. o&#39;ralish vazni</td>
			<td>25 kg</td>
		</tr>
		<tr>
			<td colspan="3" style="text-align:center">Iplarni g&#39;altak (rulon) sifatida chiqarish uskunasi</td>
		</tr>
		<tr>
			<td colspan="1" rowspan="6"><img src="/media/uploads/2024/01/15/image_2024-01-15_11-37-12_tTKGeMp.png" style="height:100%; width:100%" /></td>
			<td>Ishlash tezligi</td>
			<td>700 oborot/min</td>
		</tr>
		<tr>
			<td>Quvvati</td>
			<td>0.75 kW</td>
		</tr>
		<tr>
			<td>Tayyor mahsulot o&#39;lchami</td>
			<td>250*250 mm</td>
		</tr>
		<tr>
			<td>Uskuna o&#39;lchami</td>
			<td>720*720*650 mm</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>80 kg</td>
		</tr>
		<tr>
			<td>Ishlab chiqarish quvvati</td>
			<td>2 dona/min</td>
		</tr>
	</tbody>
</table>

&nbsp;

&nbsp;

Basic parameters
Extruder for yarn production
	Screw diameter...............................................................	110 mm......................................................................
	Screw speed	10-55 rpm
	Motor power	18 kW
	Heating power	24 kW
	Mold width	600 mm
	Drum diameter	320 mm
	Number of heating plates	2 pcs
	Heating capacity of plates	15 kW
	Production capacity	30-80 kg/hour
	Winding speed	20-150 m/min
	The number of winding bobbins	12 pcs
	Maximum load capacity	98 kW
	Normal working capacity	64 kW
	Weight	8000 kg
	Size	2350025001800 mm
Winding machine
	Working speed	1800-2100 rpm
	Number of winding spindles	24
	The distance between the spindles	250 mm
	Size of bobbins	8 inch
	Wnding speed	33-275
	Motor power	11 kW
Mixer
	Mixing capcity	150-300 kg/hpur
	Motor power	15 kW
	Weight	500 kg
	Dimension	15006001400 mm
Metal bobbin
	Max weight of winding	25 kg
Machine for making skeins
	Wrking speed	700 rpm
	Power	0.75 kW
	Finished product size	250*250 mm
	Machine dimension	720720650 mm
	Weight	80 kg
	Capacity	2 pcs/min

Polyethylene yarn production line 50-60 kg/hour
