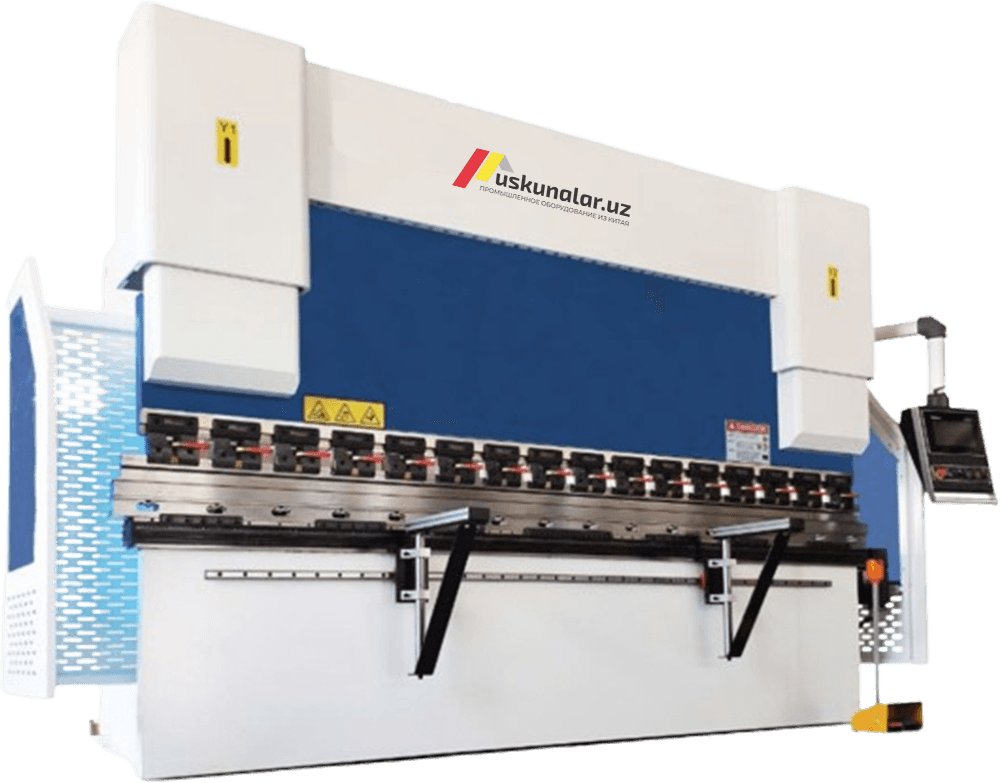

Name: Electro-hydarulic CNC press brake US-WE67K-63T
SKU: 1011
Availability: PreOrder

In the metal processing industry, many types of equipment are used, in particular, listogib equipment. This US-WE67K-63T equipment performs the function of bending metal sheets. The equipment is computer (DA-53T) controlled and all tasks and commands can be performed through this computer. The maximum bending length of the equipment with a pressure of 63 tons is 3200 mm, and its power is 5.5 kW. Dimensions: length 3300 mm, width 1450 mm and height 2100 mm.

In the metal processing industry, many types of equipment are used, in particular, listogib equipment. This US-WE67K-63T equipment performs the function of bending metal sheets. The equipment is computer (DA-53T) controlled and all tasks and commands can be performed through this computer. The maximum bending length of the equipment with a pressure of 63 tons is 3200 mm, and its power is 5.5 kW. Dimensions: length 3300 mm, width 1450 mm and height 2100 mm.

Basic parameters
	Model	US-WE67K-63T
	Bending force................................................................................................	63 ton...............................................................................................
	Bending length	3200 mm
	Columns distance	2700 mm
	Cylinder stroke (Y1, Y2)	170 mm
	Y-axis down speed	180 mm/sec
	Y-axis return speed	120 mm/sec
	Y-axis working speed	4-15 mm/sec
	Y-axis accuracy	± 0.01
	X axis (R axis) speed	400 mm/sec
	X axis (R axis) accuarcy	± 0.01
	Front sliding arms	2 pcs
	Main motor	5.5 kW
	Dimension	330014502100 mm
