Name: US-GS009-280 Bucket conveyor filling pack machine (max. film width 280mm)
SKU: 1044
Availability: PreOrder

⚙️ General Machine Concept

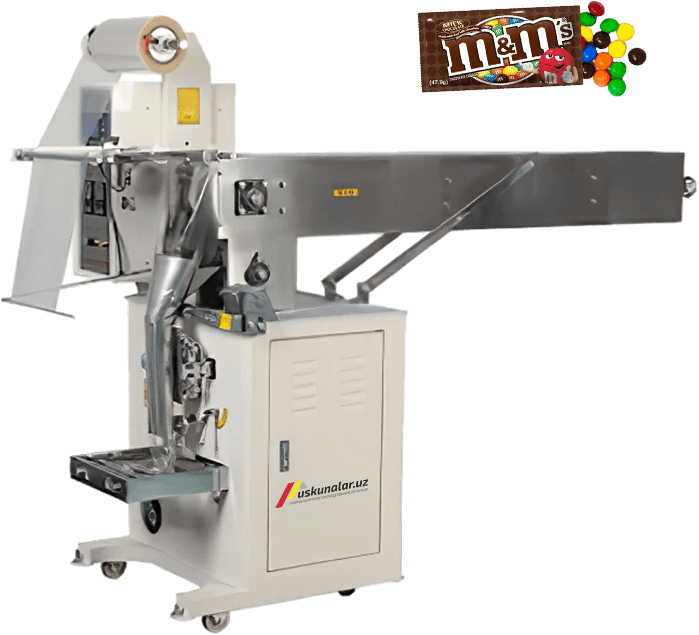

The US-GS009-280 Bucket Conveyor Filling Pack Machine is designed for packaging solid and granulated products using a bucket conveyor system, ideal for products that require manual or controlled feeding.

⚙️ Electrical Configuration and Power

The machine operates on 220V 50/60Hz power supply and consumes 2.2 kW, providing reliable and stable operation for continuous production environments.

⚙️ Packaging Speed Capacity

With a working speed of 30–75 bags per minute, this model balances productivity and accuracy, making it suitable for small to medium-scale packaging lines.

⚙️ Supported Bag Sealing Types

The system supports Center Seal, Three Side Seal, and Four Side Seal packaging styles, allowing flexibility across different product and market requirements.

⚙️ Bag Size Adjustment Range

The machine processes bags with a length of 40–200 mm and a width of 30–130 mm, covering a wide variety of sachet and pouch formats.

⚙️ Packaging Film Compatibility

It works with packaging film up to 280 mm maximum width, ensuring smooth film feeding, consistent sealing quality, and efficient material usage.

⚙️ Bucket Conveyor Filling Method

The filling process is based on a manual feeding system via bucket conveyor, making it suitable for products with irregular shapes or sensitive structures where automated dosing is not required.

⚙️ Dimensions, Customization, and Model Variations

The machine has overall dimensions of 108 × 85 × 172 cm and a weight of 320 kg, ensuring solid industrial stability. Customization is accepted, and this specification table includes other versions of this model with different configurations, therefore prices may vary depending on the selected type and options.

🪣 Equipment Overview
The US-GS009-280 is an automatic packaging system equipped with a bucket conveyor for product transfer and multiple sealing formats.

🔄 Operating Flow
Products are lifted by buckets and delivered to the packaging area, while the filling process is controlled manually.

⚡ Electrical Features
The machine operates on 220V with 50/60Hz compatibility and consumes 2.2 kW for consistent performance.

📦 Packing Speed
Depending on settings, it can produce 30 to 75 bags per minute.

📐 Bag & Film Compatibility
Supports bag lengths from 40 to 200 mm and widths from 30 to 130 mm, using film up to 280 mm wide.

✋ Filling Method
This model uses a manual filling approach, allowing flexible handling of different product types.

🏭 Application Sectors
Suitable for grains, nuts, confectionery ingredients, pellets, animal feed, and industrial materials.

💰 Model Options & Pricing
This table also includes other versions of the US-GS009 series. Pricing differs depending on configuration and specifications. Custom solutions are available.

..........ююююю......Model..........ююююююю....	Picture	Parameters
US-GS009-280		Model: US-GS009-280 Voltage/Hz: 220V 50/60HZ (Common) Power: 2.2KW Bag Type: Center / Three / Four Side Seal Pack Speed: 30-75 BAGS/MIN Bag Length: 40-200 MM Bag Width: 30-130 MM Film Width: MAX 280 MM Filling Range: Manual Machine Weight: 320 KGS Dimensions: 108 × 85 × 172 CM Customization: Accept Customize (Common).............................................................
US-GS009-380		Model: US-GS009-380 Voltage/Hz: 220V 50/60HZ (Common) Power: 2.5KW Bag Type: Center / Three / Four Side Seal Pack Speed: 30-60 BAGS/MIN Bag Length: 60-280 MM Bag Width: 70-180 MM Film Width: MAX 380 MM Filling Range: Manual Machine Weight: 420 KGS Dimensions: 125 × 95 × 206 CM Customization: Accept Customize (Common)
US-GS009-480		Model: US-GS009-480 Voltage/Hz: 220V 50/60HZ (Common) Power: 2.5KW Bag Type: Center / Three / Four Side Seal Pack Speed: 30-50 BAGS/MIN Bag Length: 80-350 MM Bag Width: 80-200 MM Film Width: MAX 480 MM Filling Range: Manual Machine Weight: 480 KGS Dimensions: 125 × 95 × 221 CM Customization: Accept Customize (Common)
