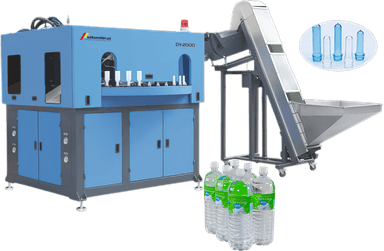

Name: Full automatic blow molding machine US-DY-2000
SKU: 1068
Price: 36000 USD
Availability: PreOrder

Currently, almost all products are packaged in plastic containers. Especially liquid products are poured into plastic bottles and put on sale. This US-DY-2000 equipment is fully automatic and can produce bottles up to 2 liters. The weight of the equipment is 1950 kg and its dimensions are: length 1950 mm, width 1850 mm and height 2100 mm. The equipment shapes bottles by heating, and the heating power is 24 kW, and the total power of the equipment is 26 kW.

Plastic bottle parameters
	Max. container volume...................................................................................	2 liter.........................................................................................................
	Max. neck diameter	50 mm
	Max. container diameter	110 mm
	Max. container height	320 mm
	Basic parameters
	Clamping force	18000 kg
	Cavity spacing	120 mm
	Number of cavity	2
	Carriage unit	66
	Theoretical output	1800-2200 bph
	Total power	26 kW
	Heating power	16 * 1.5 kW= 24 kW
	Blowing pressure	20-30 kg/cm²
	High pressure air consumption	1600 liter/min
	Machine dimension	195018502100 mm
	Machine weight	1950 kg
	Preform loader dimensions	215014502450 mm
	Preform loader weight	450 kg
