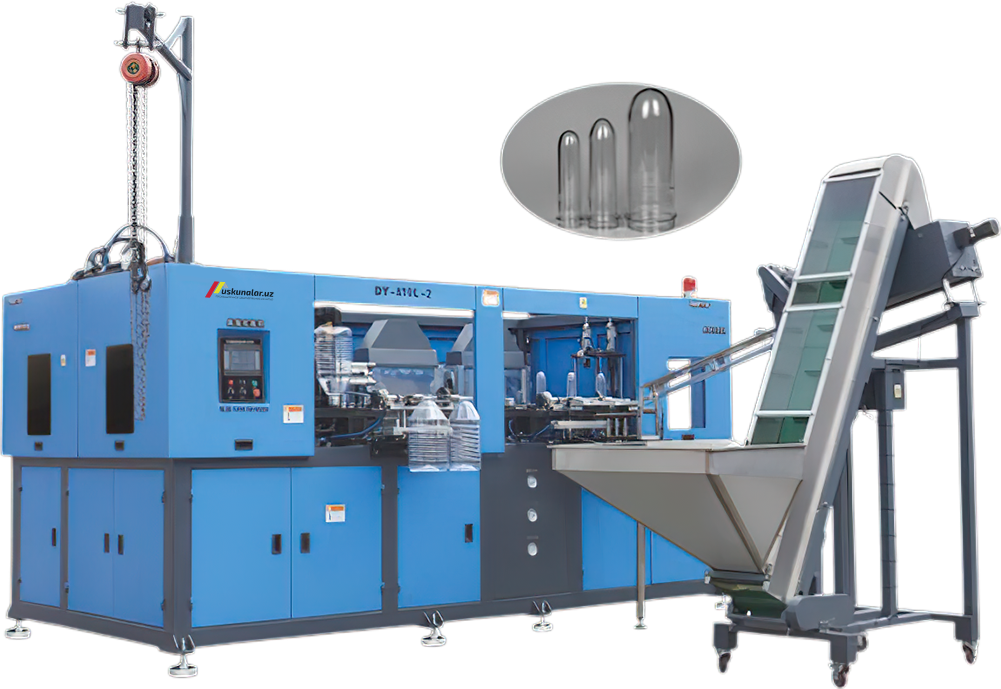

This US-DY-A10L-2 equipment is used for the production of large plastic bottles used for packaging water, oil and similar liquids. The maximum volume that the equipment can produce is 11 liters. The maximum height of the bottle is 430 mm, and the thickness is 220 mm. The production speed is from 800 to 1200 products per hour. The equipment weighs 4500 kg and has the following dimensions: length 4200 mm, width 2150 mm and height 2200.

Plastic bottle parameters
	Max. container volume.............................................................................	11 liter.......................................................................................................
	Max. neck diameter	65 mm
	Max. container diameter	220 mm
	Max. container height	430 mm
	Basic parameters
	Clamping force	32000 kg
	Cavity spacing	250 mm
	Number of cavity	2
	Carriage unit	63
	Theoretical output	800-1200 bph
	Total power	78 kW
	Heating power	48 * 1.5 kW= 72 kW
	Blowing pressure	30-40 kg/cm2
	High pressure air consumption	6000 liter/min
	Machine dimension	4200*2150*2200 mm
	Machine weight	4500 kg
	Preform loader dimensions	2200*1350*2650 mm
	Preform loader weight	550 kg
