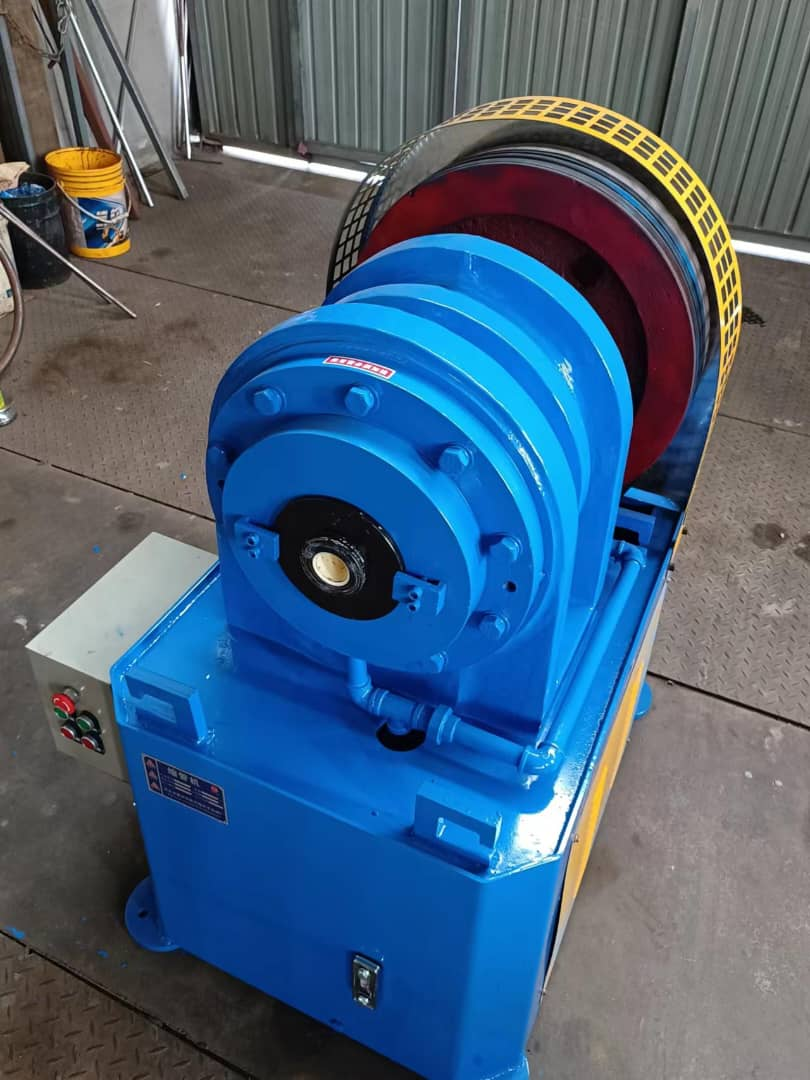

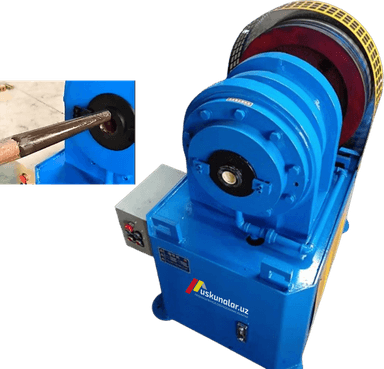

Pipe shrink machine US-KLGJ-300

This US-KLGJ-300 equipment can process 50 mm diameter pipes up to 30 cm. The thickness of the metal pipe is 2 mm. The equipment with a power of 4 kW operates at a voltage of 380 V, and the power of the oil pump is 40 W. Processing time for one product is from 7 to 15 seconds. The size of the equipment is 760*590*1210 mm and its weight is 700 kg.



Basic parameters
	Model	US-KLGJ-80	US-KLGJ-100	US-KLGJ-200	US-KLGJ-300	US-KLGJ-450
	Max. processing diameter........................	32 mm..................	48 mm.........................	38 mm.........................	50 mm.............................	60 mm.................................
	Max. processing thickness	2 mm	2.5 mm	2 mm	2 mm	3 mm
	Max. processing length	8 sm	10 sm	20 sm	30 sm	45 sm
	Voltage	380V
	Power	1.5 kW	3 kW	3 kW	4 kW	5.5 kW
	Oil pump power	40W				90W
	Forming time	5-7 seconds/time		7-10 seconds/time	7-15 seconds/time	15-30 seconds/time
	Machine size	510*530*110 mm	540*590*1160 mm	610*590*1160 mm	760*590*1210 mm	930*710*1310 mm
	Weight	280 kg	400 kg	460 kg	700 kg	1200 kg
	Price	1000 usd	1400 usd	1600 usd	2900 usd	6000 usd
