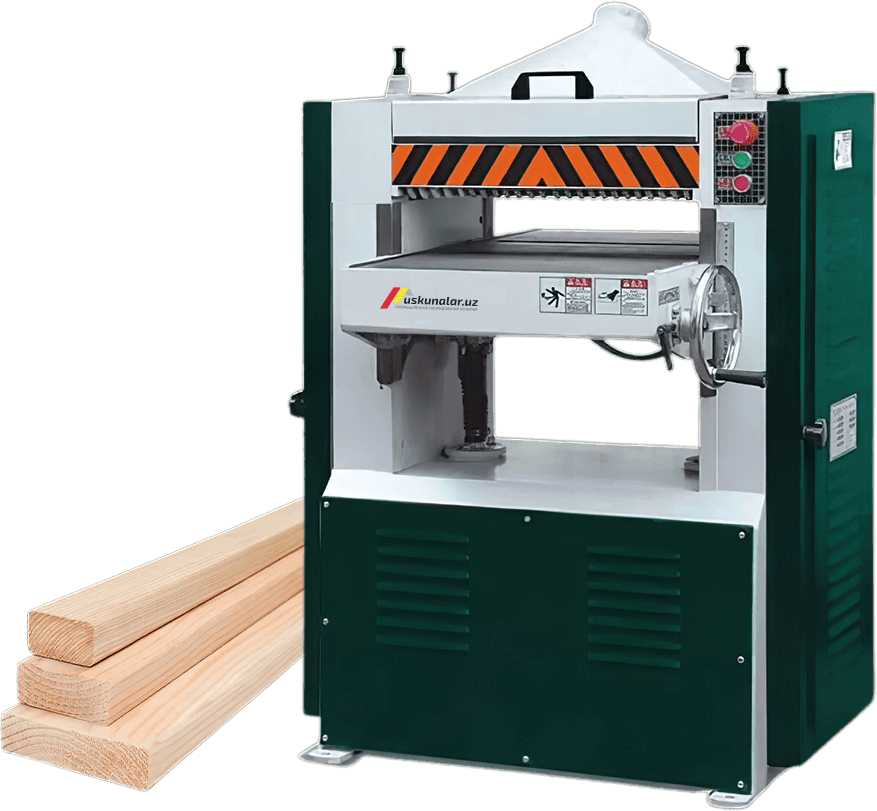

This US-MB-104H type of wood thickness planer can handle wood up to a maximum width of 400 mm. The thickness of sanded wood ranges from 8 mm to 190 mm. The motor power of the equipment is 4 kW and the total weight is 480 kg. Dimensions: length 760 mm, width 830 mm and height 1240 mm.

Basic parameters
	Model	US-MB-104H
	Spindle speed.........................................................................................	6000 rpm....................................................................................................
	Feeding speed	6-8 m/min
	Max. planing width	400 mm
	Planing thickness	8-190 mm
	Planing length	250 mm
	Max. planing depth	6 mm
	Motor power	4 kW
	Weight	480 kg
	Dimension	760*830*1240 mm
