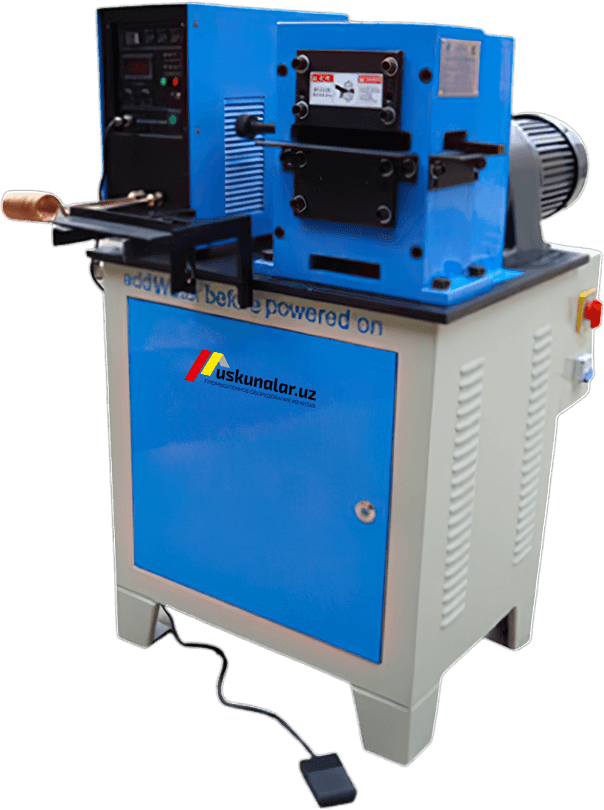

This US-TGH-40 equipment is used not only for heating metals, but also for forging on heated metal, and in particular for forging metal in three parts. The equipment operates at a voltage of 380V and the motor power of the forging equipment is 2.2 kW and the total weight of the equipment is 280 kg. The forging equipment is capable of forging metals with a diameter of 14 mm, metals with a thickness of 14*14 mm.

Basic parameters
	Model	US-TGH-40
	Heating part input voltage	380V
	Input power	4-25 kW
	Cooling water pressure.................................................................................	5-7 liters/min.........................................................................................
	Spare parts	3 induction loop
	Forging part voltage	380V
	Power	2.2 kW
	Round steel	14 mm
	Square steel	14*14 mm
	Flat steel	50*10 mm
	External size	960*760*1240 mm
	Packed size	1100*860*1310 mm
	Net weight	280 kg
