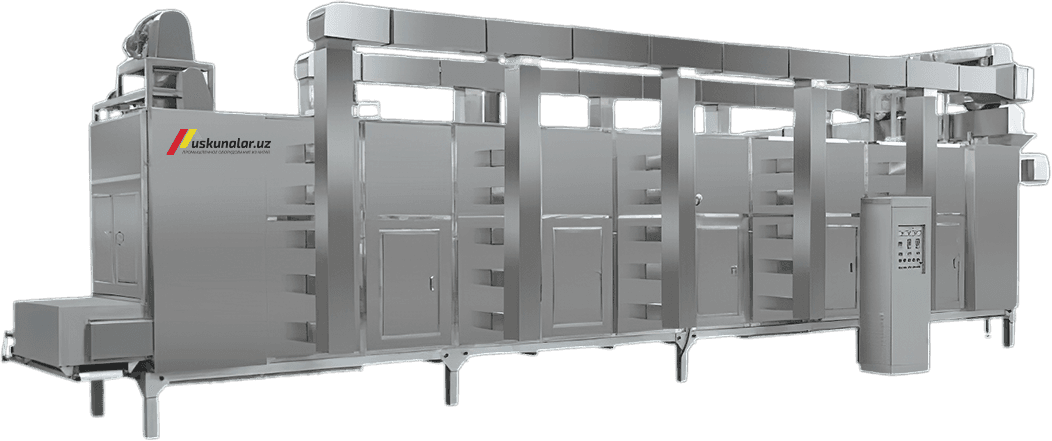

This US-ZHKX-RF-400 model equipment is mainly used for drying extruded products, especially pasta, various snacks, crackers and even extruded pet food. This equipment is heated by gas and gas consumption is 6-20.5 m3 per hour. The drying capacity is 400-1200 kg per hour. The size of the equipment is 16300*2250*4000 mm.

Basic parameters
	Model	US-ZHKX-RF-100	US-ZHKX-RF-200	US-ZHKX-RF-300	US-ZHKX-RF-400
	Installed power	22 kW	26 kW	30 kW	35 kW
	Diesel/gas consumption	6-20.5 m3/hour
	Heat temperature	60°C - 120°C
	Capacity	100-300 kg/hour	200-500 kg/hour	300-700 kg/hour	400-1200 kg/hour
	Dimension	6300*2250*4000 mm	9300*2250*4000 mm	13300*2250*4000 mm	16300*2250*4000 mm
