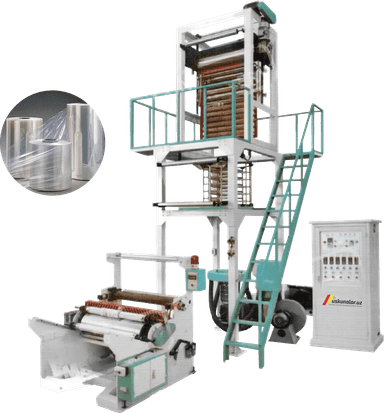

Full biodegradable film blowing machine US-XJQMJ-A45

Name: Full biodegradable film blowing machine US-XJQMJ-A45
SKU: 1154
Availability: PreOrder

+1,600views

Production of polyethylene products

ID number: 1154

By Order

+1,600views

Country of origin: China

The main motor power of this high output US-XJQMJ-A45 extruder is 11 kW. The equipment is capable of producing LDPE material up to 35 kg per hour and HDPE film up to 45 kg per hour. The overall dimensions of this extruder are 5 meters in length, 2 meters in width and 4.1 meters in height. The description below includes other models of this equipment. Their prices and parameters differ from each other.

EXW

* Contact us for pricing!

* Buy at factory price!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-XJQMJ-A45

Capacity:

35-45 kg/hour

Voltage:

380V

Dimension:

5.0*2.0*4.1 m

Main motor power:

11 kW

The main motor power of this high output US-XJQMJ-A45 extruder is 11 kW. The equipment is capable of producing LDPE material up to 35 kg per hour and HDPE film up to 45 kg per hour. The overall dimensions of this extruder are 5 meters in length, 2 meters in width and 4.1 meters in height. The description below includes other models of this equipment. Their prices and parameters differ from each other.

Basic parameters
	Model	US-XJQMJ-A45	US-XJQMJ-A50	US-XJQMJ-A55	US-XJQMJ-A60	US-XJQMJ-A65
	Suitable material	HDPE, LDPE, LLDPE
	Film width (HDPE)	100-500 mm	300-600 mm	400-800 mm	500-1000 mm	600-1200 mm
	Film thickness (LDPE)	0.009-0.05 mm	0.009-0.05 mm	0.009-0.15 mm	0.009-0.15 mm	0.009-0.15 mm
	Film thickness (HDPE)	0.02-0.15 mm	0.02-0.15 mm	0.03-0.15 mm	0.03-0.15 mm	0.03-0.15 mm
	Max. extrusion output (LDPE)	35 kg/hour	40 kg/hour	50 kg/hour	55 kg/hour	55 kg/hour
	Max. extrusion output (HDPE)	45 kg/hour	50 kg/hour	60 kg/hour	70 kg/hour	70 kg/hour
	Screw diameter	φ 45 mm	φ 50 mm	φ 55 mm	φ 60 mm	φ 65 mm
	Main motor power	11 kW	15 kW	18.5 kW	22 kW	22 kW
	Voltage	380V
	Dimension	5.0 * 2.0 * 4.1 m	5.0 * 2.2 * 4.5 m	5.5 * 2.5 * 5.2 m	5.8 * 2.8 * 6.3 m	5.8 * 2.8 * 6.3 m
