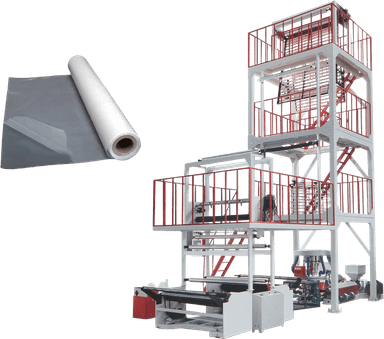

Extruder for making 2-layer polyethylene roll film US-SJ*2-FM900

Name: Extruder for making 2-layer polyethylene roll film US-SJ*2-FM900
SKU: 1170
Availability: PreOrder

+1,300views

Production of polyethylene products

ID number: 1170

By Order

+1,300views

Country of origin: China

This US-SJ*2-FM900 equipment serves for the production of polyethylene film in roll form from raw materials such as LDPE, HDPE, LLDPE. With a production capacity of 60 kg per hour, the total power of this extruder is 60 kW. The extruder produces a 2-layer film. Weight 4.5 tons, dimensions: length 5000 mm, width 3000 mm and height 4800 mm. There are other models of this equipment in the description. Their prices and parameters differ from each other.

* Contact us for pricing!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-SJ*2-FM900

Capacity:

60 kg/soat

Total power:

60 kW

Size:

5000*3000*4800 mm

Weight:

4.5 ton

This US-SJ*2-FM900 equipment serves for the production of polyethylene film in roll form from raw materials such as LDPE, HDPE, LLDPE. With a production capacity of 60 kg per hour, the total power of this extruder is 60 kW. The extruder produces a 2-layer film. Weight 4.5 tons, dimensions: length 5000 mm, width 3000 mm and height 4800 mm. There are other models of this equipment in the description. Their prices and parameters differ from each other.

Basic parameters
	Model	*US-SJ2-FM900**	*US-SJ2-FM1100**	*US-SJ2-FM1350**	*US-SJ2-FM1700**
	Screw diameter	⌀50 mm*2	⌀55 mm*2	⌀60 mm*2	⌀65 mm*2
	Screw speed	15-120 rpn
	Main motor power	15 kW*2	18.5 kW*2	22 kW*2	30 kW*2
	Extrusion output (single)	60 kg/hour	80 kg/hour	120 kg/hour	160 kg/hour
	Single sided thickness of film	0.015 - 0.15 mm
	Max. layflat width of film	800 mm	1000 mm	1200 mm	1500 mm
	Electric total capacity	60 kW	72 kW	88 kW	110 kW
	Overall dimension	500030004800 mm	550035005800 mm	680043006000 mm	650045007000 mm
	Weight.......................	4.5 ton..........................	5.5 ton............................	6.8 ton.............................	7.5 ton............................
