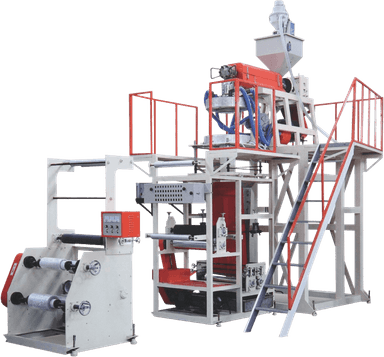

Name: Film blowing machine US-SJ-PP50
SKU: 1174
Availability: PreOrder

Polyethylene films are mainly used in the production of bags. Rolled polyethylene films are produced by this US-SJ-PP50 extruder. Product production rate is 35 kg per hour. The main motor power of the extruder is 15 kW, the dimensions are: length 3.2 meters, width 2 meters and height 3.5 meters. Other models of this extruder are listed below. Their prices and parameters differ from each other.

Polyethylene films are mainly used in the production of bags. Rolled polyethylene films are produced by this US-SJ-PP50 extruder. Product production rate is 35 kg per hour. The main motor power of the extruder is 15 kW, the dimensions are: length 3.2 meters, width 2 meters and height 3.5 meters. Other models of this extruder are listed below. Their prices and parameters differ from each other.

Basic parameters
	Model	US-SJ-PP50	US-SJ-PP55	US-SJ-PP65
	Suitable material	PP
	Film width...................................	100-500 mm....................................	150-600 mm......................................	200-800 mm........................................
	Film thickness	0.01-0.10 mm	0.01-0.10 mm	0.03-0.11 mm
	Max. extrusion output	35 kg/hour	45 kg/hour	60 kg/hour
	Screw diameter	⌀50 mm	⌀55 mm	⌀60 mm
	Barrel cooling	120W*1	120W*2	370W*3
	Main motor	15 kW	18.5 kW	22 kW
	Take-up motor	0.75 kW	0.75 kW	1.5 kW
	Winding speed	5-60 m/min
	Voltage	380V
	Dimension	3.2 * 2 * 3.5 m	4.2 * 2.5 * 4 m	4.6 * 2.8 * 4.5 m
