Name: Film blowing machine US-SJ-PP50 US-SJ-B45-700
SKU: 1176
Availability: PreOrder

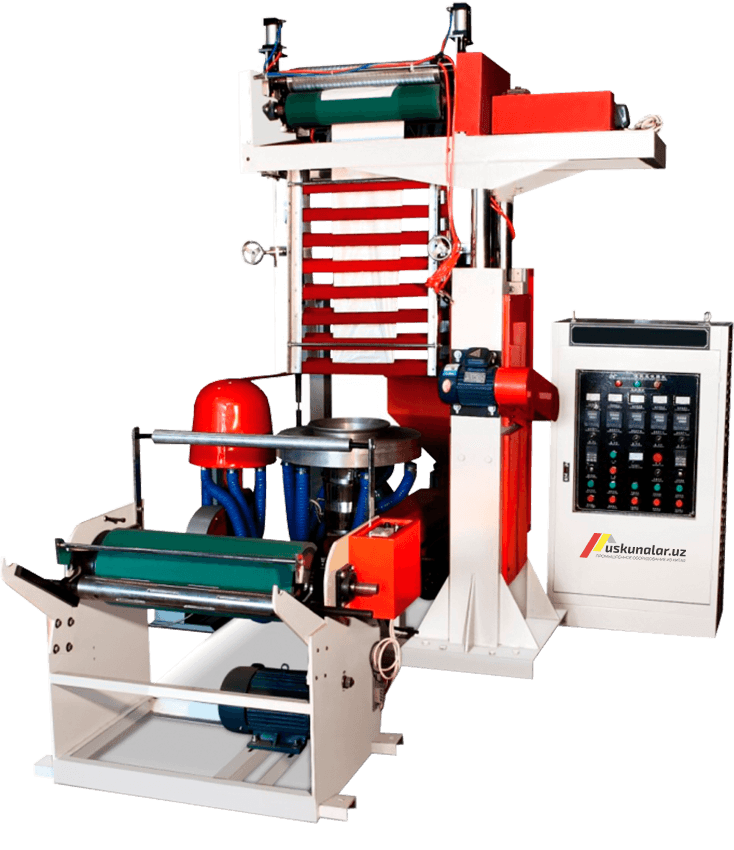

With a maximum production capacity of 35 kg per hour, this US-SJ-B45-700 extruder weighs 1.8 tons. The main motor power of the equipment is 11 kW, and the total power is 23 kW. The width of the manufactured product is 600 mm. Dimensions: length 4000 mm, width 2000 mm and height 3000 mm. There is another model of this equipment in the description. Their prices and parameters differ from each other.

With a maximum production capacity of 35 kg per hour, this US-SJ-B45-700 extruder weighs 1.8 tons. The main motor power of the equipment is 11 kW, and the total power is 23 kW. The width of the manufactured product is 600 mm. Dimensions: length 4000 mm, width 2000 mm and height 3000 mm. There is another model of this equipment in the description. Their prices and parameters differ from each other.

Basic parameters
	Model	US-SJ-B45-700	US-SJ-B50-900
	Screw diameter	⌀45 mm	⌀50 mm
	Screw speed	15-100 rpm
	Main motor power	11 kW	15 kW
	Extrusion output (single)	35 kg/hour	40 kg/hour
	Single sided thickness of film	0.008 - 0.10 mm
	Max. layflat width of film	600 mm	800 mm
	Electric total capacity	23 kW	30 kW
	Overall dimension	400020003000 mm	420025003800 mm
	Weight.............................................	1.8 ton................................................	2.4 ton.......................................................
