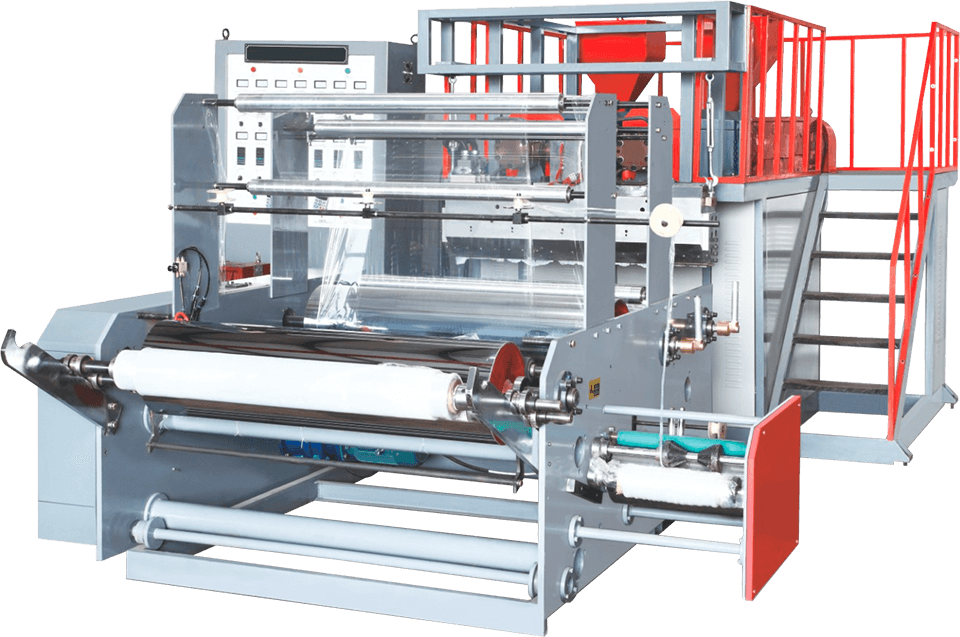

Single/double layer co-extrusion film machine US-HC-1250

Polyethylene film production extruders also vary. One of them is the US-HC-1250 model. This extruder produces 30 kg of product per hour and the product width is 1000 mm. The device has another useful function. There is a certain part to wrap the waste produced during the production of the product. The total power of the equipment is 80 kW. It weighs 4.5 tons. The dimensions are 5.5*4.0*2.0 meters. There is another model of this equipment in the description. They differ in price and parameters.



Basic parameters
	Model	US-HC-650	US-HC-1250
	Screw diameter................................................	50 mm......................................................	50 mm*2........................................................
	Width of finished product	600 mm (1300*2 rolls)	1000 mm (500*2 rolls)
	Thickness of finished product	0.05 mm
	Max. output	30 kg/hour	70 kg/hour
	Total power	34 kW	80 kW
	Dimension	4.5*2.0*1.7 m	5.5*4.0*2.0 m
	Weight	2.6 ton	4.5 ton
