Name: Linear full servo blow moulding machine US-SJ-CP6
SKU: 1188
Availability: PreOrder

Model:

US-SJ-CP6

Capacity:

13500 pcs/hour

Total power:

120 kW

Size:

5.2*1.8*2.3 m

Weight:

5000 kg

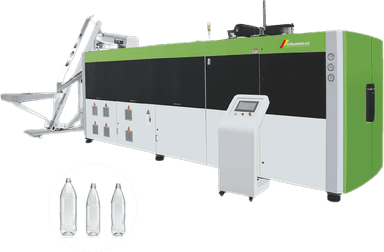

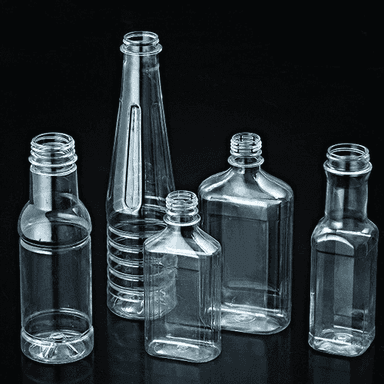

Using the latest technology, this US-SJ-CP6 machine can produce plastic bottles and many other similar plastic containers. The equipment has a production speed of up to 13,500 products per hour and the maximum plastic bottle volume is 1.5 liters. The total power of the equipment with a heating capacity of 96 kW is 120 kW. Total weight 5000 kg, dimensions: length 5.2 meters, width 1.8 meters and height 2.3 meters. Other models of this equipment are also shown in the description. Their prices and parameters differ from each other.

Basic parameters
	Model	US-SJ-CP6	US-SJ-CP7M	US-SJ-CP7	US-SJ-CP8M	US-SJ-CP8	US-SJ-CP9M
	Theoretical output	13500 pcs/hour	16000 pcs/hour	16000 pcs/hour	18000 pcs/hour	18000 pcs/hour	20000 pcs/hour
	Max. neck size	30 mm
	Max. volume	1.5 L	1.0 L	1.5 L	1.0 L	1.5 L	1.0 L
	Max. height	350 mm	300 mm	350 mm	300 mm	350 mm	300 mm
	Max. diameter	95 mm	80 mm	95 mm	80 mm	95 mm	80 mm
	Numer of cavities........................	6....................	7................	7.......................	8.......................	8....................	9......................
	Voltage	220-380V, 50-60Hz
	Heating power	96 kW
	Total power	120 kW				119 kW	120 kW
	Machine dimension	5.21.82.3 m
	Weight	5000 kg	5000 kg	5500 kg	5500 kg	6000 kg	6000 kg
