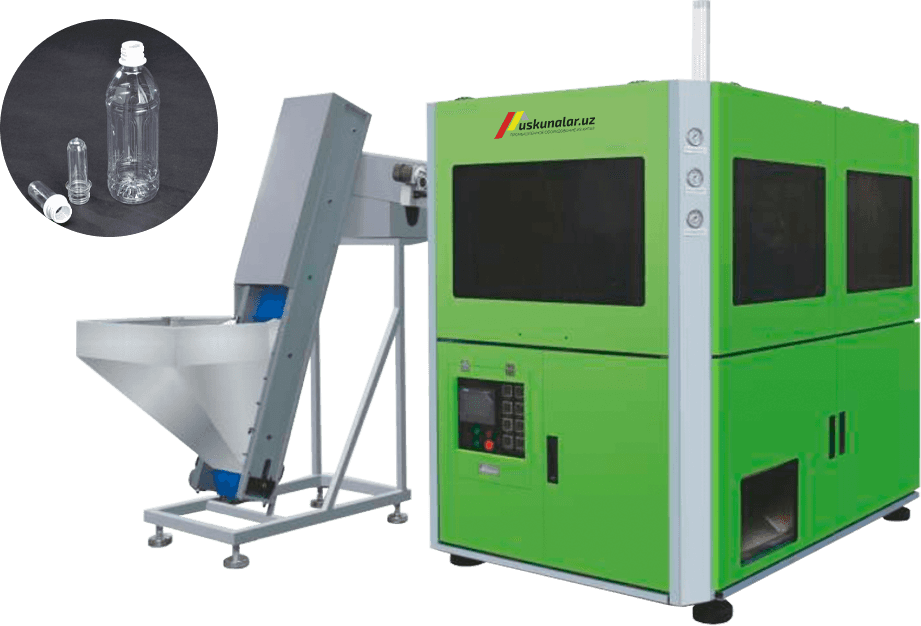

This US-OGM-3 equipment serves for automatic production of plastic bottles. The total power of the equipment is 33 kW, and the production speed reaches 2200 pieces per hour. The size of the equipment weighing 1650 kg is 2.3*1.5*2.2 meters. The equipment is capable of producing products up to a maximum of 2 liters.

Basic parameters
	Model	US-OGM-3
	Theoretical output	2200 pcs/hour
	Max. neck size	38 mm
	Max. volume	2.0 L
	Max. height	360 mm
	Max. diameter	100 mm
	Numer of cavities...................................................................................	3...................................................................................................
	Voltage	220-380V, 50-60Hz
	Heating power	32 kW
	Total power	33 kW
	Machine dimension	2.3*1.5*2.2 m
	Weight	1650 kg
