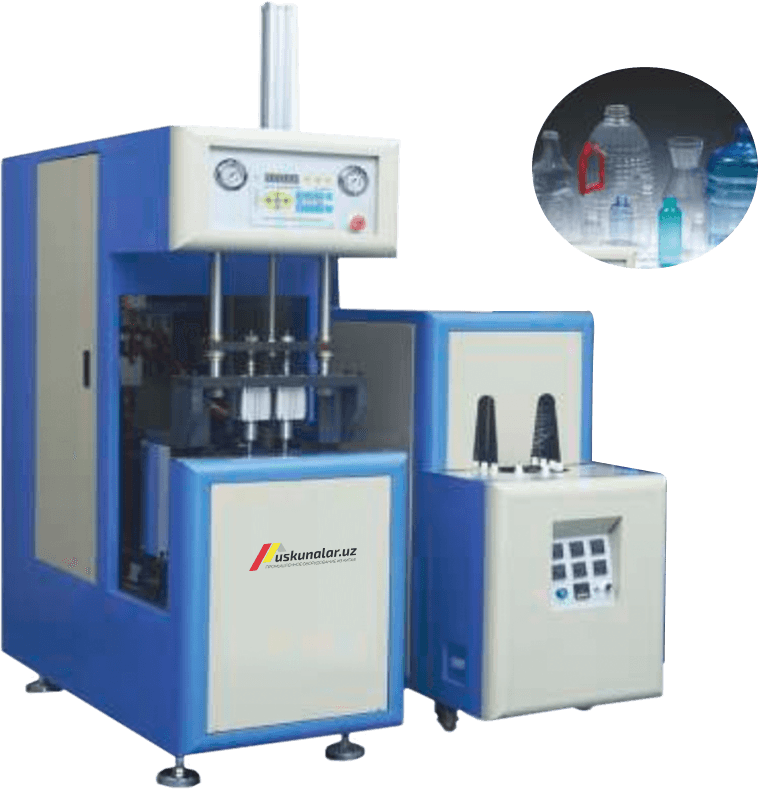

Semi-automatic blow moulding machine US-OGS-4

This US-OGS-4 equipment serves for the production of PET bottles up to 3 liters in volume. The equipment has a production speed of up to 1800 bags per hour. This equipment with a total power of 40 kW has a weight of 530 kg. Dimensions: length 1.5 meters, width 0.65 meters and height 2.0 meters. The heating equipment weighs 230 kg, and its dimensions are 1.8*0.6*1.4 meters.



Basic parameters
	Model	US-OGS-4
	Theoretical output	1800 pcs/hour
	Max. neck size	38 mm
	Max. volume	3.0 L
	Max. height	360 mm
	Max. diameter	120 mm
	Voltage	220-380V, 50-60Hz
	Heating power	38.4 kW
	Total power	40 kW
	Main body dimension	1.5*0.65*2.0 m
	Main body weight	530 kg
	Heater dimension	1.8*0.6*1.4 m
	Heater weight..............................................................................	230 kg........................................................................................................
