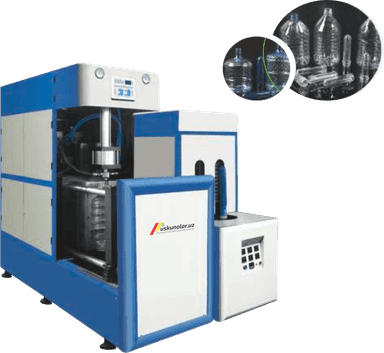

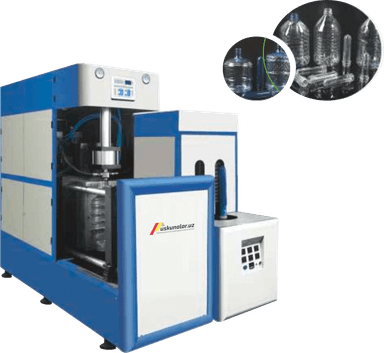

Name: Semi-automatic blow moulding machine US-OGS-1-20
SKU: 1198
Availability: PreOrder

This US-OGS-1-20 equipment is capable of producing 20 liter PET bottles. Bottle has a maximum height of 550 mm and a diameter of 300 mm. The total power of the equipment is 66 kW. The weight of the main equipment is 1250 kg, and the weight of the heating equipment is 370 kg. Production speed reaches from 90 to 200 pieces per hour.

Basic parameters
	Model	US-OGS-1-20
	Theoretical output	90-200 pcs/hour
	Max. neck size	120 mm
	Max. volume	20.0 L
	Max. height	550 mm
	Max. diameter	300 mm
	Voltage	220-380V, 50-60Hz
	Heating power	64 kW
	Total power	66 kW
	Main body dimension	1.750.782.0 m
	Main. body weight	1250 kg
	Heater dimension	2.70.71.6 m
	Heater weight............................................................................	370 kg.....................................................................................................

Basic parameters
	Model	US-OGS-1-20
	Theoretical output	90-200 pcs/hour
	Max. neck size	120 mm
	Max. volume	20.0 L
	Max. height	550 mm
	Max. diameter	300 mm
	Voltage	220-380V, 50-60Hz
	Heating power	64 kW
	Total power	66 kW
	Main body dimension	1.750.782.0 m
	Main. body weight	1250 kg
	Heater dimension	2.70.71.6 m
	Heater weight............................................................................	370 kg.....................................................................................................
