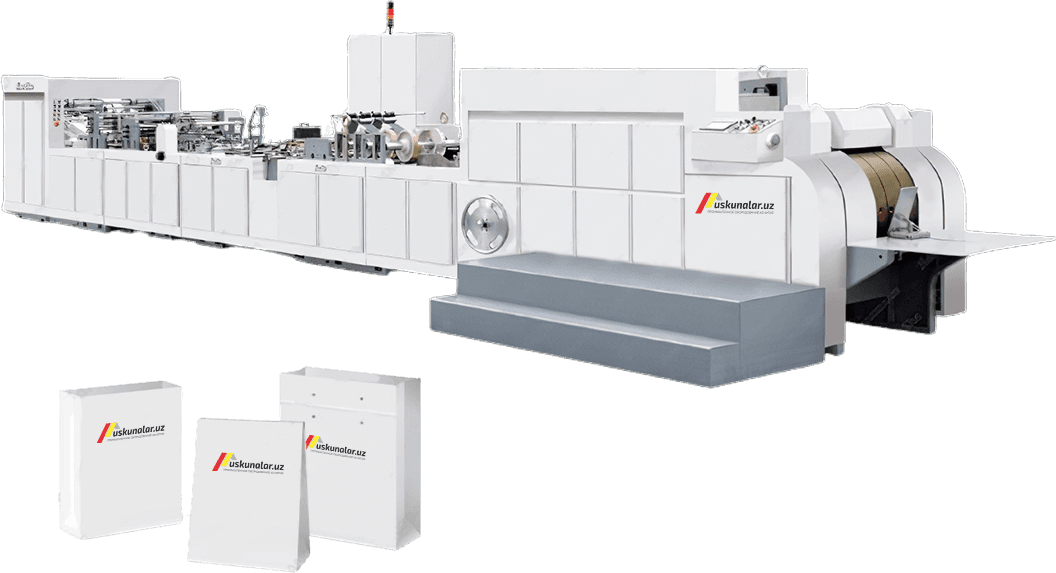

Paper bags making machine US-ZD-FP18

Name: Paper bags making machine US-ZD-FP18
SKU: 1209
Availability: PreOrder

+1,400views

Polygraphy / Printing equipment

ID number: 1209

By Order

+1,400views

Country of origin: China

With a production speed of up to 80 paper bags per minute, this US-ZD-FP18 machine has a total power of 15 kW. The width of the manufactured bag is 220-450 mm, and the height is 200-480 mm. The total weight of the equipment is about 12 tons. Dimensions: length 13000 mm, width 2500 mm and height 1700 mm. The description also includes other models of this equipment. Their prices and parameters differ from each other.

EXW

* Contact us for pricing!

* Buy at factory price!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Total power:

15 kW

Model:

US-ZD-FP18

Capacity:

80 pcs/min

Size:

13000*2500*1700 mm

Weight:

12000 kg

With a production speed of up to 80 paper bags per minute, this US-ZD-FP18 machine has a total power of 15 kW. The width of the manufactured bag is 220-450 mm, and the height is 200-480 mm. The total weight of the equipment is about 12 tons. Dimensions: length 13000 mm, width 2500 mm and height 1700 mm. The description also includes other models of this equipment. Their prices and parameters differ from each other.

Basic parameters
	Model	US-ZD-FP08	US-ZD-FP14	US-ZD-FP18	US-ZD-FP20
	Paper width	400-780 mm	550-1050 mm	630-1250 mm	710-1320 mm
	Paper length	310-530 mm	340-630 mm	340-630 mm	360-630 mm
	Paper thickness	100-160 gr/m²	100-250 gr/m²
	Bag body width	120-250 mm	180-350 mm	220-450 mm	240-500 mm
	Bag body height	215-395 mm	200-480 mm
	Bag bottom size	60-130 mm	80-180 mm	80-180 mm	100-180 mm
	Max. speed	80 pcs./min
	Total power	12 kW	13 kW	15 kW	15 kW
	Weight........................	10000 kg.............................	11000 kg..............................	12000 kg...............................	14000 kg..................................
	Dimension	1350024001600 mm	1300024001700 mm	1300025001700 mm	1350025001700 mm
