Paper bags making machine US-ZD-QFB11

Name: Paper bags making machine US-ZD-QFB11
SKU: 1210
Availability: PreOrder

+1,400views

Polygraphy / Printing equipment

ID number: 1210

By Order

+1,400views

Country of origin: China

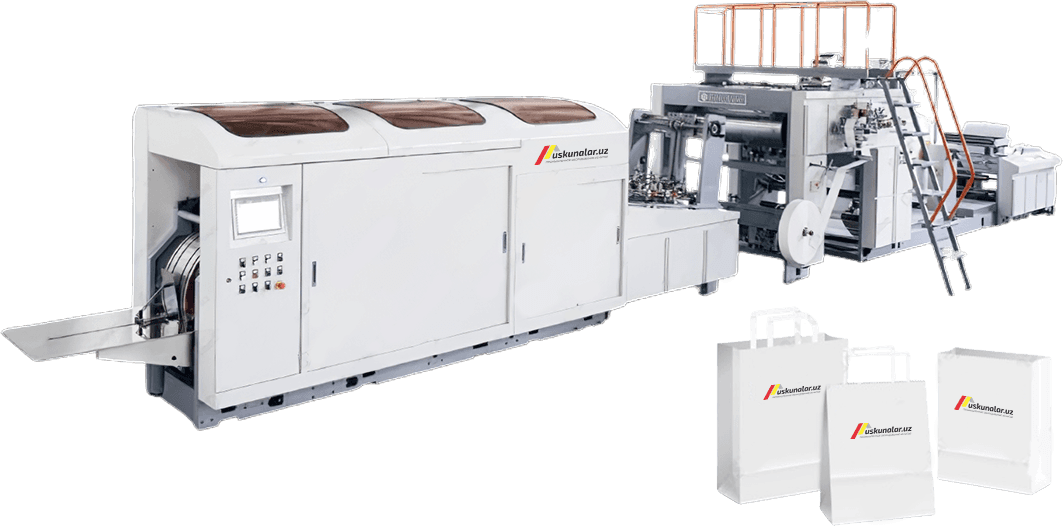

This US-ZD-QFB11 equipment is used for the production of paper bags. The maximum production speed depends on the size of the product, that is, it is possible to produce up to 180 bags per minute for a bag width of 180-280 mm, and up to 240 bags per minute for a width of 110-280 mm. This equipment with a total power of 29 kW weighs about 20 tons. Dimensions: length 16000 mm, width and height 3500 mm. The description below includes other models of this equipment. Their prices and parameters differ from each other.

* Contact us for pricing!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-ZD-QFB11

Capacity:

180-240 bags/min

Total power:

29 kW

Size:

16000*3500*3500 mm

Weight:

20000 kg

This US-ZD-QFB11 equipment is used for the production of paper bags. The maximum production speed depends on the size of the product, that is, it is possible to produce up to 180 bags per minute for a bag width of 180-280 mm, and up to 240 bags per minute for a width of 110-280 mm. This equipment with a total power of 29 kW weighs about 20 tons. Dimensions: length 16000 mm, width and height 3500 mm. The description below includes other models of this equipment. Their prices and parameters differ from each other.

Basic parameters
	Model	US-ZD-QFB11	US-ZD-QFB13E[S]	US-ZD-QFB14[S]	US-ZD-QFB18P	US-ZD-QFB21S[M]
	Paper roll width	590-890 mm (370-890 mm)	590-990 mm (400-990 mm)	590-1150 mm	630-1390 mm (590-1390 mm)	630-1530 mm [690-1710 mm]
	Max. paper roll diameter	⌀1500 mm
	Bag body width	180-280 mm (110-280 mm)	200-330 mm (125-330 mm)	200-360 mm	220-460 mm (200-460 mm)	220-540 mm
	Bag bottom size	60-150 mm	60-150 mm [70-180 mm]	80-220 mm [100-230 mm]	80-220 mm	80-254 mm [110-300 mm]
	Flat handle rope width	10 mm	13 mm	13 mm	16 mm	16 mm
	Handle patch width	52 mm
	Handle patch length	160 mm			170 mm
	Max. speed	180 bags/min (240 bags/min)	180 bags/min (220 bags/min)	160 bags/min	160 bags/min (200 bags/min)	120 bags/min
	Total power......................	29 kW				29 kW [34 kW]
	Total weight (approx)	20000 kg				23000 kg
	Dimension	1600035003500 mm	1600035003500 mm	1500035003500 mm	1600035003500 mm	1600035003500 mm
