Without handle paper bags making machine US-ZD-FJ11E

Name: Without handle paper bags making machine US-ZD-FJ11E
SKU: 1216
Availability: PreOrder

+1,700views

Polygraphy / Printing equipment

ID number: 1216

By Order

+1,700views

Country of origin: China

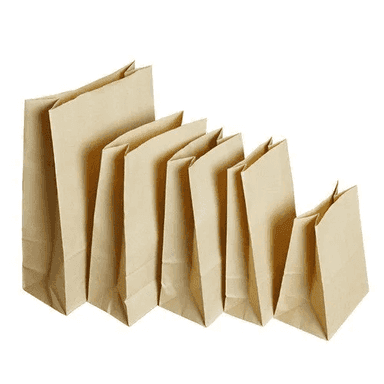

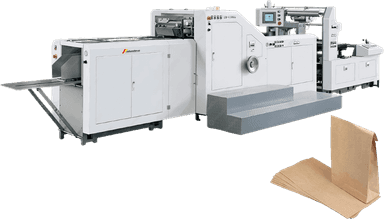

This US-ZD-FJ11E equipment is used for the production of paper bags without handles. The production speed of the equipment reaches 240 bags per minute and the total power is 16 kW. The width of the produced package is 110-280 mm, the length of the inner part of the package is 270-530 mm. With a total weight of 8,000 kg, this equipment is 10,000 mm long, 3,300 mm wide and 2,000 mm high. The description includes many other models of this equipment. Their prices and parameters differ from each other.

EXW

* Contact us for pricing!

* Buy at factory price!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Total power:

16 kW

Size:

10000*3300*2000 mm

Weight:

8000 kg

Model:

US-ZD-FJ11E

Capacity:

240 bags/min

This US-ZD-FJ11E equipment is used for the production of paper bags without handles. The production speed of the equipment reaches 240 bags per minute and the total power is 16 kW. The width of the produced package is 110-280 mm, the length of the inner part of the package is 270-530 mm. With a total weight of 8,000 kg, this equipment is 10,000 mm long, 3,300 mm wide and 2,000 mm high. The description includes many other models of this equipment. Their prices and parameters differ from each other.

Basic parameters
www	Model	US-ZD-FJ05	US-ZD-FJ08	US-ZD-FJ11E	US-ZD-FJ13E[S]	US-ZD-FJ14[S]	US-ZD-FJ18P[C]	US-ZD-FJ21S[M]
	Max. paper roll width	200-450 mm	290-630 mm	370-890 mm	400-990 mm [420-1050 mm]	590-1150 mm	590-1390 mm [650-1280 mm]	630-1530 mm [690-1710 mm]
	Max. paper roll diameter	⌀1000 mm	⌀1200 mm	⌀1500 mm
	Material thickness	45-100 gr/m²	45-130 gr/m²	50-150 gr/m²	55-160 gr/m²	80-150 gr/m²	70-160 gr/m²	80-170 gr/m²
	Tube length	130-350 mm	190-370 mm	270-530 mm	270-530 mm	340-650 mm	280-620 [380-760 mm]	380-770 mm
	Bag body width	55-125 mm	80-200 mm	110-280 mm	125-330 mm	200-360 mm	200-460 mm [220-450 mm]	220-540 mm
	Bag bottom size	30-80 mm	50-100 mm	60-150 mm	60-150 mm [70-180 mm]	80-200 mm [100-230 mm]	80-200 mm [90-180 mm]	80-254 mm [110-300 mm]
	Max. speed	200 bags/min	260 bags/min	240 bags/min	220 bags/min	150 bags/min	180 bags/min	120 bags/min
	Total power	12 kW	13.5 kW	16 kW	16 kW [19kW]	18.5 kW	18.5 kW	18.5 kW [23.5 kW]
	Weight	5500 kg	6000 kg	8000 kg	8500 kg	11000 kg	11000 kg	14000 kg
	Dimension	800030001600 mm	850030001600 mm	1000033002000 mm	1000034502000 mm	1050035002000 mm	1200035002000 mm	1160035002000 mm
