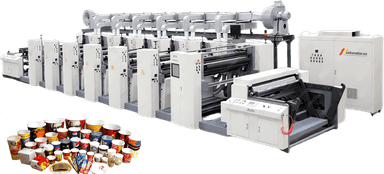

Flexographic printing machine US-YT-1300C/D

Name: Flexographic printing machine US-YT-1300C/D
SKU: 1219
Availability: PreOrder

+1,400views

Polygraphy / Printing equipment

ID number: 1219

By Order

+1,400views

Country of origin: China

One of the main types of printing equipment, this US-YT-1300C/D flexo printing machine can print up to 1300mm wide. The total power of the equipment is 15 kW, and the printing speed reaches 150 meters per minute. Other models of this equipment are also shown in the description. Their prices and parameters differ from each other.

EXW

* Contact us for pricing!

* Buy at factory price!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-YT-1300C/D

Capacity:

150 m/min

Main motor power:

15 kW

Max. printing width:

1300 mm

One of the main types of printing equipment, this US-YT-1300C/D flexo printing machine can print up to 1300mm wide. The total power of the equipment is 15 kW, and the printing speed reaches 150 meters per minute. Other models of this equipment are also shown in the description. Their prices and parameters differ from each other.

Basic parameters
	Model	US-YT-1000C/D	US-YT-1300C/D	US-YT-1500C/D
	Paper thickness	40-220 gr/m²(220-380 gr/m²)
	Max. material roll width	1020 mm	1320 mm	1520 mm
	Max. printing width.........................	1000 mm............................	1300 mm............................	1500 mm................................
	Printing repeat length	285-1200 mm (380-1500 mm)		380-1500 mm
	Max. unwinding dia.	⌀1500 mm
	Max. rewinding dia.	⌀1500 mm
	Accuracy	±0.12 mm
	Max. speed	150 m/min
	Main motor power	11 kW	15 kW	18.5 kW
	Price
