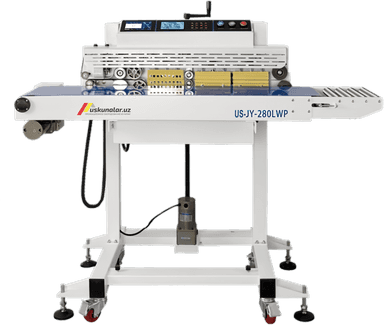

Vertical/horizontal sealing machine US-280LWP

This US-280LWP device closes the mouth of the package by heating, and each side of the package can be packaged one by one. The equipment works at a voltage of 220V, has a heating capacity of 450W. The total power of the equipment is 1000W. The width of the packaging is 15 mm. The weight of the equipment is 90 kg, it is possible to raise and lower the height of the conveyor table from the ground to 350-900 mm. The size of the equipment is 1390*600*1200 mm.



Basic parameters
	Model	US-280LWP
	Voltage	220V
	Power	1000 W
	Conveying motor	120 W
	Conveyor table ground clearance	350-900 mm
	Conveying speed	0-21 m/min
	Sealing width	15 mm
	Temperature	0-280°C
	Max. bag size	600*400*0.015 mm
	Conveyor belt	2440*250*2 mm
	Conveyer load-bearing	15 kg
	Machine size	1390*600*1200 mm
	Weight........................................................................................	90 kg.................................................................................
