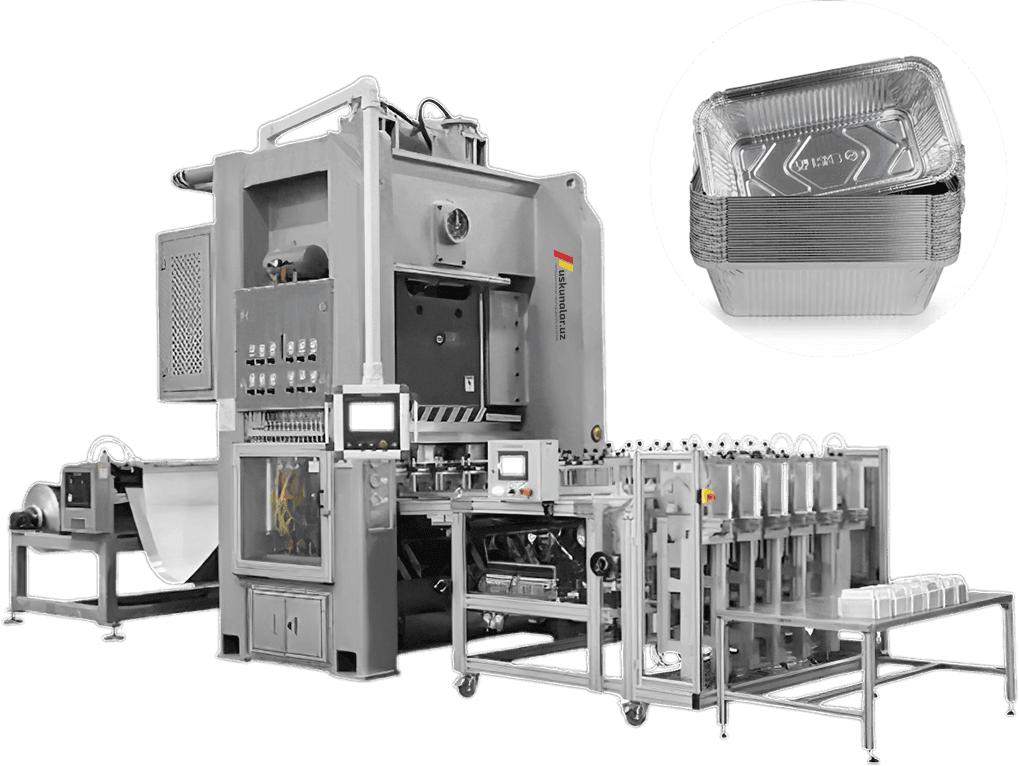

Aluminium foil container machine US-ZBFC-130

Name: Aluminium foil container machine US-ZBFC-130
SKU: 1320
Price: 97650 USD
Availability: PreOrder

1,300+views

Production of disposable tableware

ID number: 1320

By Order

1,300+views

This US-ZBFC-130 equipment performs the task of producing disposable containers from foil, that is, aluminum material. The equipment forms containers by applying pressure, and the maximum pressing pressure is 130 tons. Uskua's main engine power is 18.5 kW, weight 17500 kg, dimensions: length 7030 mm, width 2800 mm and height 3730 mm.

CIP

$97,650

1,439,150,076.0 sum

1% for conversion services
0.5% for bank services
12% VAT (not calculated in dollars)

Model:

US-ZBFC-130

Speed:

30-80 times/min

Power:

18.5 kW

Size:

7030*2800*3730 mm

Weight:

17500 kg

This US-ZBFC-130 equipment performs the task of producing disposable containers from foil, that is, aluminum material. The equipment forms containers by applying pressure, and the maximum pressing pressure is 130 tons. Uskua's main engine power is 18.5 kW, weight 17500 kg, dimensions: length 7030 mm, width 2800 mm and height 3730 mm.

Basic parameters
	Model	US-ZBFC-130
	Nominal force	130 ton
	Main motor power	18.5 kW
	Stroke range	150-260 mm
	Stamping speed range	30-80 times/min
	Table plate size	length: 1700 mm, width: 900 mm (2 sets movable plates)
	Max. mold size	1650850500 mm
	Max. feed width	1420 mm
	Max. roll outer diameter	600-1500 mm
	Stacker conveyer size	2000*1500 mm
	Min. stackabe size	100*100 mm
	Product stacking dimensions	4 lane: 600300350 mm
		5 lane: 600240350 mm
		6 lane: 600200350 mm
		7 lane: 600170350 mm
	Machine size	703028003730 mm
	Weight...............................................................................	17500 kg.............................................................................................
