Name: High speed servo driven intelligent paper cup machine USZSZB-D100 70-100 pcs/min
SKU: 1322
Price: 15629.0 USD
Availability: PreOrder

Model:

US-ZSZB-D100

Capacity:

70-100 pcs/min

Total power:

4 kW

Size:

2100*1100*1700 mm

Weight:

1300 kg

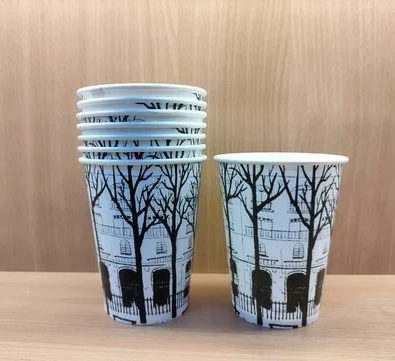

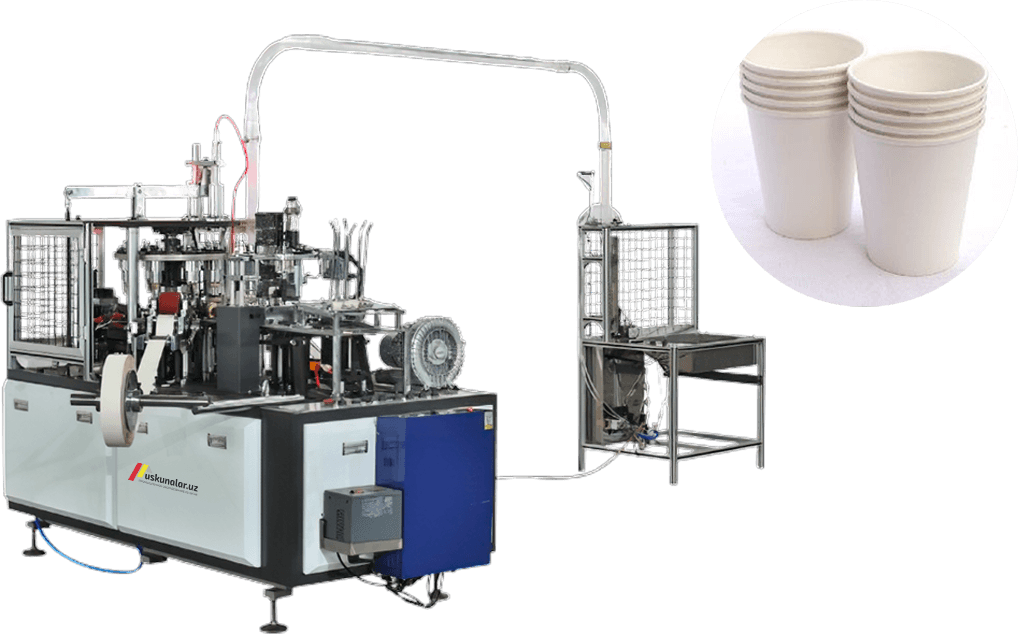

Disposable paper cups are environmentally friendly and more hygienic. This US-ZSZB-D100 machine is responsible for the production of disposable paper cups and has a production speed of 70 to 100 products per minute. The equipment will be able to work at voltage 220/380V according to the order. The total power of this equipment is 4 kW and its weight is 1300 kg. Dimensions: length 2100 mm, width 1100 mm and height 1700 mm.

Basic parameters
	Model	US-ZSZB-D100
	Suitable paper material	150-350 gr/m²(single or double PE coated paper)
	Capacity	70-100 pcs/min
	Voltage	220/380V, 50Hz
	Total power	4 kW
	Weight................................................................................	1300 kg...........................................................................................
	Dimension	210011002700 mm
	Working air source	0.6 Mpa
Paper cup size
	Top diameter	min: 30mm ; max: 70mm
	Bottom diameter	min: 30mm ; max: 50mm
	Total height	min: 30 mm ; max: 90 mm
