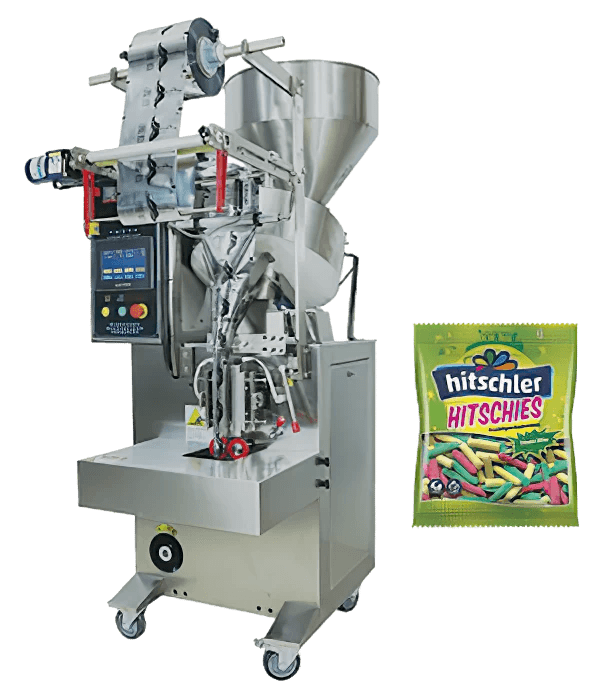

US-GS011 Inclined measuring cup filling pack machine (20-40 bags/min)

⚙️ General Machine Concept

The US-GS011 Inclined Measuring Cup Filling Pack Machine is designed for accurate counting and packaging of small solid items using an inclined measuring cup system, ensuring stable feeding and controlled output.

⚙️ Electrical Configuration and Power

The machine operates on 220V 50/60Hz power supply and consumes 2.2 kW, making it suitable for long-term industrial operation with reliable energy efficiency.

⚙️ Packaging Performance

With a working capacity of 20–40 bags per minute, this model is ideal for production lines that require precise filling rather than maximum speed.

⚙️ Supported Bag Sealing Styles

The system supports Center Seal, Three Side Seal, and Four Side Seal packaging formats, allowing flexible adaptation to different market and product requirements.

⚙️ Bag Size Adjustment Range

Bag length can be adjusted from 40 to 200 mm, while bag width ranges between 30 and 130 mm, covering a wide variety of pouch sizes.

⚙️ Film Width Compatibility

The machine is compatible with packaging films up to 280 mm maximum width, ensuring smooth film feeding and consistent sealing quality.

⚙️ Inclined Counting Filling System

The inclined measuring cup filling mechanism allows accurate counting from 0 to 150 pieces per bag, making it suitable for tablets, hardware parts, candies, and similar products.

⚙️ Machine Structure and Customization

With dimensions of 108 × 85 × 172 cm and a weight of 320 kg, the machine offers solid construction and operational stability. Customization options are available to meet specific production needs.
