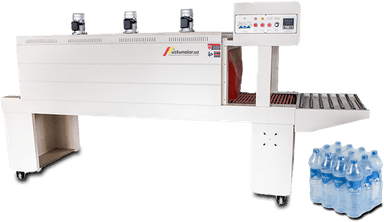

US-BSPN7050 mesh type shrink machine with cooling system (tunnel 2m)

🔹 General Overview
The US-BSPN7050 is a high-performance mesh-type shrink tunnel equipped with a 2-meter heating chamber and an integrated cooling system. Designed for industrial-scale packaging, it ensures consistent shrink quality, stable heat distribution, and efficient product cooling.



⚡ Power & Electrical Configuration
• Voltage: 380V / 50Hz
• Power: 21 kW
The powerful heating unit delivers a strong thermal output, enabling rapid shrink wrapping with excellent temperature stability.



📏 Tunnel & Machine Dimensions
• Tunnel length: 2000 mm
• Machine dimensions: 2980 × 1030 × 1500 mm
The extended tunnel ensures smoother heat penetration—a key advantage for larger or bulk-packed items.



⏱ Adjustable Conveyor Speed
• Speed range: 0–15 m/min
The system supports flexible speed control, with optional frequency conversion available for an additional cost, allowing precise tuning for various film types.





🏋️ Load Capacity & Build Quality
• Transport load: 35 kg
• Weight: 420 kg
Heavy-duty construction ensures long-term durability, vibration-free performance, and stability under continuous high-temperature operation.



🎞 Film Compatibility
• Applicable film types: PVC / POF / PE
This versatility makes the machine suitable for multi-category packaging operations.



❄️ Cooling System Functionality
The built-in cooling section provides rapid stabilization of the shrink film, enhancing clarity, shape retention, and overall packaging aesthetics.



🏭 Application Fields
Widely used in food packaging, beverages, household chemicals, cosmetics sets, industrial parts, distribution centers, and shrink-wrapped bundles requiring uniform heat processing.
