US-GS120 Mill machine- A type (10-300kg/h)

⚙️ Industrial Milling Solution
The US-GS120 A-Type Mill Machine is designed for efficient grinding of solid raw materials into fine and uniform particles for industrial use.



🔌 Electrical Configuration
This unit operates on 380V or 220V with 50/60Hz frequency, making it adaptable to different power standards without performance loss.



🔥 Motor Output
Equipped with a 1.5KW motor, the machine delivers stable rotational force for continuous and balanced milling operations.



📊 Processing Capacity
Depending on material density and fineness, the output ranges from 10–300 KGS/H, supporting both small and medium-scale production.



🔄 Grinding Structure
A precision mill disc with 50MM diameter ensures consistent crushing, while the 42MM inlet and 20MM outlet maintain smooth material flow.



📐 Compact Dimensions
With a space-saving size of 50×38×85CM, the machine fits easily into workshops, labs, and production lines.



🏭 Application Fields
Widely used in food processing, pharmaceutical production, chemical industries, herbal grinding, and cosmetic raw material preparation.



🛠️ Model Variations Notice
This product series includes multiple mill models with different capacities, specifications, and pricing, allowing customers to select according to production needs.

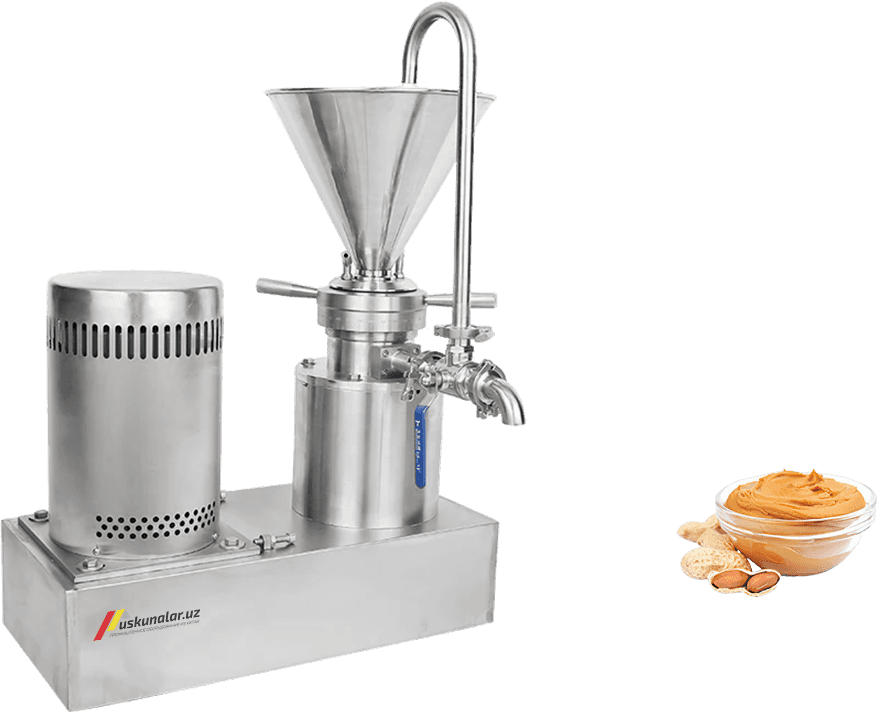

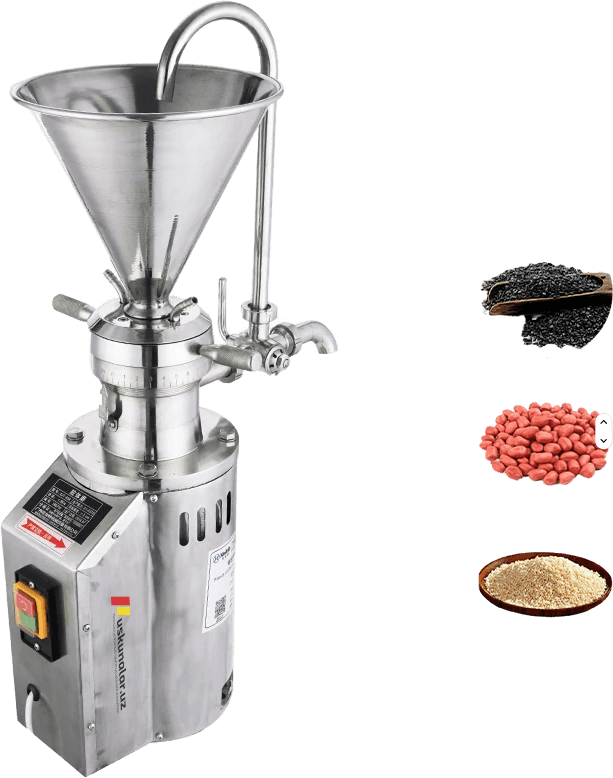

US-GS120 Mill machine- A type			US-GS121 Mill machine- B type
Parameters
Model	US-GS120	US-GS121-50	US-GS121-80	US-GS121-100
Voltage	380/220V   50/60Hz
Power	1.5 kW	1.5 kW	3 kW	5.5 kW
Capacity	10-300 kg/h	10-500 kg/h	100-1500 kg/h	100-2000 kg/h
Mill disc dia.	50 mm	50 mm	80 mm	100 mm
Exit dia.	20 mm	20 mm	25 mm	32 mm
Entrance dia.	42 mm	42 mm	57 mm	76 mm
Dimensions	50*38*85 cm	65*36*90 cm	80*50*105 cm	100*60*115 cm
