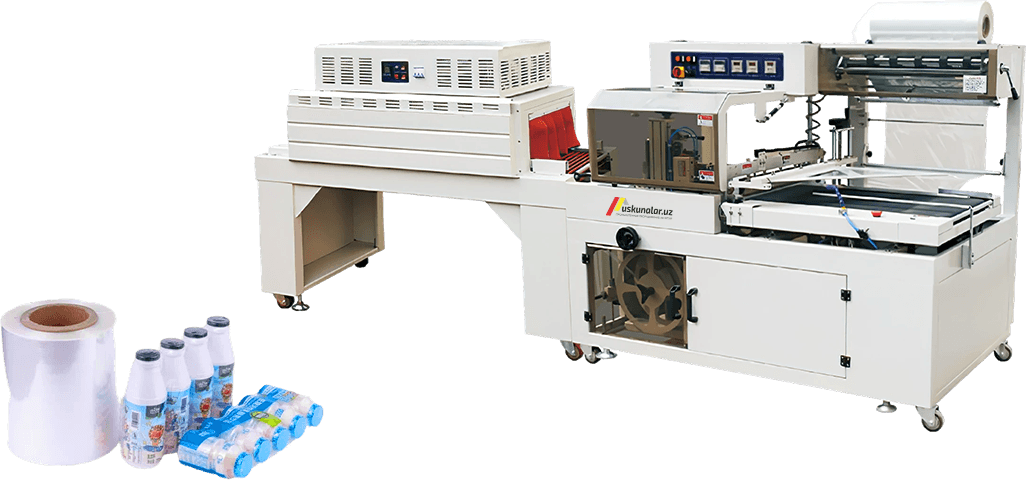

The US-GS167-450 is an automatic POF wrapping and cutting solution with an R-type air jet shrinking system, designed for long and large products that require stable and uniform heat shrink packaging.
This model operates on 220V 50/60Hz and consumes 1.35KW of power, providing reliable performance while maintaining energy-efficient operation for continuous industrial use.
Equipped with an R-type hot air circulation structure and air pressure support of 0.4–0.8 MPa, the machine ensures even heat distribution and smooth shrink results without film distortion.
With a processing speed of 0–30 pieces per minute, the machine supports medium to high production demands, improving output efficiency and reducing manual labor.
It is specially designed for oversized products, supporting a maximum length of 2500MM, width up to 350MM, and height options of 150MM or 250MM, with a load capacity of 15KG.
The system works efficiently with POF and PE films, delivering tight, transparent, and durable packaging suitable for logistics, manufacturing, and retail display.
The shrinking tunnel allows adjustable heating from 0 to 400°C, enabling precise temperature settings for different product shapes, film thicknesses, and packaging requirements.
With overall dimensions of 185 × 105 × 158CM, the machine offers a solid and space-efficient design. This series includes multiple configurations with different working sizes and performance levels, and prices vary depending on the selected model specifications.
Delivery will be made in 20-40 days
Uskunalar.uz logistics
If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.
With qualified technological services
Installation and commissioning service is provided
Convenient payment method for you
Cash, card, or money transfer
Uskunani bugun oling, daromadingiz bilan to‘lang!
📦 Machine Overview
The US-GS167-450 is an automatic R-type wrapping and cutting machine designed for large-size products, combining precise sealing and hot air shrink technology in one continuous system.
⚡ Power & Electrical Parameters
This equipment operates on 220V 50/60Hz with a total power consumption of 1.35KW, providing stable performance suitable for long production shifts.
🌬️ Air Jet Shrinking System
Integrated air jet shrink structure works under 0.4–0.8 MPa air pressure, ensuring even heat circulation and strong film contraction around products.
🚀 Packaging Output Capacity
The working speed reaches 0–30 pcs/min, making it ideal for medium to high-volume packaging requirements.
📐 Product Size Range
Supports extra-long products up to 2500MM in length, 350MM in width, and 150MM or 250MM in height, with a maximum load weight of 15KG.
🎞️ Film Compatibility & Temperature
Designed for POF and PE shrink films, with an adjustable oven temperature range of 0–400°C for different material thicknesses.
🏭 Industrial Applications
Widely used in furniture parts, aluminum profiles, doors, pipes, building materials, household goods, long cartons, and industrial product packaging.
🔁 Other Model Options
This series includes multiple wrapping and dosing-related models with different configurations, technical parameters, and price levels based on production needs.
 |
|||||
| Parameters | |||||
| Model | US-GS167-450 | US-GS167-550 | US-GS167-650 | US-GS167-750 | US-GS167-850 |
| Voltage | 220V 50/60Hz | ||||
| Power | 1.35 kW | 1.55 kW | 1.65 kW | 1.85 kW | 2.2 kW |
| Equipped with air pressure | 0.4-0.8 Mpa | ||||
| Capacity | 0-30 pcs/min | ||||
| Max. product length | 2500mm | ||||
| Max. product width | 350 mm | 450 mm | 550 mm | 650 mm | 750 mm |
| Max. product height | 150 mm or 250 mm | ||||
| Over load weight | 15 kg | ||||
| Film material | POF/PE | ||||
| Oven temperature | 0-400°C | ||||
| Dimensions | 185*105*158 cm | 216*110*158 cm | 235*120*158 cm | 255*140*158 cm | 275*150*158 cm |
