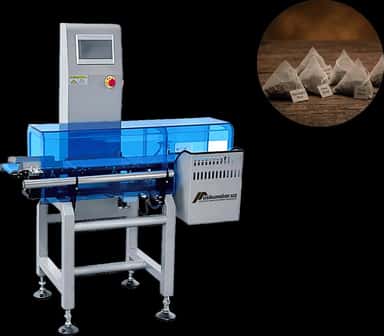

US-150W High speed online check weigher | 3-500 gr

⚡ Precision & Speed Overview
The high-speed online check weigher US-150W is engineered for continuous weight inspection in dynamic production environments. It covers a weighing range of 3–500 g with a fine division scale of 0.1 g and an accuracy of ±0.1 g (depending on product type). The conveyor belt operates at adjustable speeds from 0–90 m/min, reaching a maximum throughput of 150 pcs/min. Powered by 220 V, 50 Hz, with only ≈100 W consumption, and built from SUS304 stainless steel, the unit weighs 70 kg, ensuring durability and hygiene compliance.



📦 Suitable Product Types
This system is designed for precise weighing of snack pouches, biscuit packs, chocolate bars, candy bags, spice sachets, tea and coffee packets, pharmaceutical blister packs, capsules, cosmetic samples, small boxed items, hardware kits, electronic accessories, and lightweight industrial components. Product size limits are up to 200 mm length, 150 mm width, and 3–200 mm height. It is ideal for food processing plants, pharmaceutical factories, cosmetic production lines, electronics assembly, retail packaging centers, and logistics hubs requiring accurate weight control before shipment.



🚀 Performance Efficiency
With a maximum inspection speed of 150 items/min, the US-150W can process up to 9,000 pieces/hour under optimal conditions. The 150 mm belt width supports compact and mid-sized packaging formats. Adjustable conveyor velocity from 0–90 m/min allows integration into different line speeds without disrupting workflow.



🏭 Industrial Integration
The compact footprint and 70 kg frame enable quick installation into existing lines. Manufacturers handling thousands of units daily benefit from automated weight verification, reducing manual inspection and minimizing product giveaway or underweight risk. The stainless-steel body ensures compatibility with hygienic production standards in regulated industries.



🔧 Accuracy & Control System
The digital division scale of 0.1 g ensures precise measurement results. The system automatically identifies products outside tolerance limits, improving quality control consistency. Low energy demand of ≈100 W keeps operational costs efficient while maintaining stable performance over extended production shifts.



💡 Model Variations & Investment Options
Another model within the same series is available, offering different weighing ranges, belt dimensions, and speed capacities. Technical specifications and pricing vary depending on configuration and production needs. Businesses can select the version that best aligns with throughput requirements, available space, and budget planning.



Parameters
Model	US-150W	US-150BLR
Weighing scope	3-500 gr	3-500 gr
Max. product length	200 mm	314 mm
Max. product width	150 mm	150 mm
Suitable product height	3-200 mm
Accuracy	±0.1 gr	±0.1 gr
Belt speed	0-90 m/min	0-90 m/min
Highest speed	150 pcs/min	150 pcs/min
Belt width	150 mm
Power supply	220 V  50 Hz	220 V  50 Hz
Power	≈ 100 W
Main material	304 (stainless steel)
