⚙️ Key Production Specifications

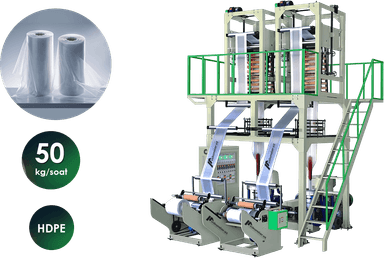

The USMD-H2-65 dual-layer polyethylene film blowing machine is designed for efficient HDPE film manufacturing with a maximum extrusion capacity of 70 kg/hour. The system produces two film rolls simultaneously with a width of 600 × 2 mm, enabling high productivity in industrial environments. The adjustable film thickness range of 0.008 mm to 0.08 mm allows manufacturers to produce both ultra-thin packaging film and stronger protective plastic layers.

🔩 Advanced Extrusion Mechanism
This equipment is equipped with an extrusion screw diameter of ϕ65 mm, which enhances polymer melting efficiency and improves material flow stability. The extrusion die configuration ϕ50/60 × 2 ensures symmetrical film formation on both sides. The machine operates using an industrial electrical supply of 380V / 50Hz / 3 phase, ensuring reliable and stable performance during continuous operation.

📏 Industrial Structure and Equipment Size
The machine has an overall dimension of 5.5 × 3.4 × 4.3 meters, making it suitable for installation in modern production facilities. Its engineered frame provides structural durability and stable performance during long working cycles. The film blowing structure supports consistent air pressure and temperature distribution, ensuring uniform film texture and controlled thickness.

🏭 Industrial Application Areas

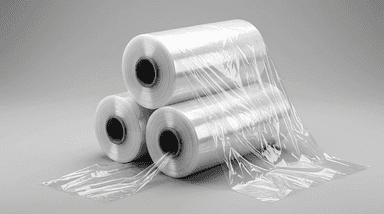

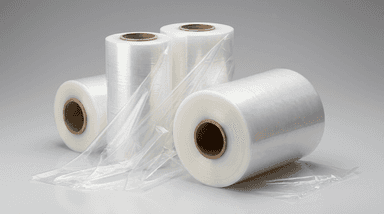

The USMD-H2-65 system is widely used in packaging material production plants, plastic processing factories, and industrial film manufacturing facilities. It is ideal for producing HDPE shopping bag film, courier packaging rolls, industrial wrapping film, garbage bag film, and agricultural plastic covering materials. The double-roll production capability improves manufacturing efficiency for companies requiring large-scale film output.

♻️ Operational Stability and Production Benefits
This extrusion line is optimized to maximize raw material efficiency while maintaining consistent product quality. The balanced mechanical configuration ensures smooth polymer distribution and stable film formation. As a result, manufacturers can achieve reliable film rolls suitable for bag-making machines, packaging converters, and large-scale plastic processing operations.

General
Parameter	Specification
Model	USMD-H2-65
Suitable Material	HDPE
Max Film Width	600 mm × 2
Film Thickness	0.008 – 0.08 mm
Max Extrusion Output	70 kg/hr
Extrusion Unit
Screw Diameter	ϕ65 mm
Screw L/D Ratio	28:1
Screw / Barrel Material	38 CRMOALA
Gear Box	200
Driving Motor	30 kw
Thermo Control	4 Zones
Barrel Cooling Fan	370W × 2
Extrusion Die
Die Size	ϕ50/60 mm × 2
Air Ring	ϕ620×2
Cooling Blower	2.2 kw
Thermo Control	2 × 2 Zones
Screen Changer	Standard Manual
Take-Up Unit
Center Steady Stick	2 PCS
Roller Width	ϕ138×650 mm
Embossing Roller Width	550 mm
Take-Up Speed	10 – 80 M/min
Take-Up Motor	1.1 kw × 2
Height Adjustable Type	700 mm
Winding Unit
Type of Winder	Surface Friction Single Winder
Roller Width	700 mm
Winding Motor	6 N.M
Winding Speed	10 – 60 M/min
Utility & Dim.
Voltage	380V / 50HZ / 3 PHASE
Cover Dimensions (L×W×H)	5.5 × 3.4 × 4.3 m
