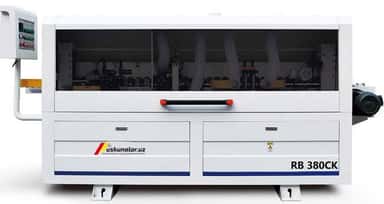

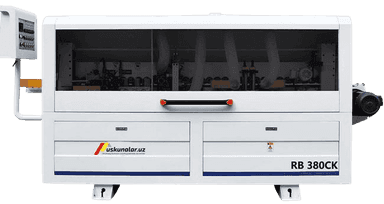

4 function semi-automatic edge bander machine US-RB-380CK

4 function semi-automatic edge bander machine US-RB-380CK.

Technical parameters of the equipment:

• Model: US-RB-380CK.
• Edge thickness: 0.4~3 mm.
• Feed speed: 13 m/min.
• Panel thickness: 10-50 mm.
• Panel length: ≥ 140 mm.
• Panel width:  ≥ 50mm.
• Glue motor power: 0.37 Kw.
• Glue tank heating power: 1.5 Kw.
• Fine trimming motor power:  0.75 Kw x 2 @ 18000 rpm.
• Buffing motor power:  0.18 Kw x 2 @ 1400 rpm.
• Total motor power: 13 Kw.
• Working pressure: 0.7 Mpa.
• Outline size: 3150 x 850 x 1510 mm/4,04 cbm.
• Net weight: 900 kg.
• Gross weight: 960 kg.
