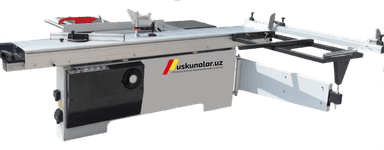

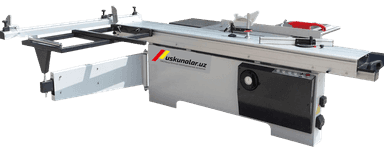

Sliding table saw machine US-MJ6128-45

Sliding table saw machine US-MJ6128-45.

Technical parameters of the equipment:

• Model: US-MJ6128-45 (US-MJ6130-45, US-MJ6132-45).
• Dimension of sliding table: 2800 x 375 mm (3000 / 3200).
• Max.cutting length: 2800 mm (3000 / 3200).
• Max.cutting width: 1250 mm.
• Max.cutting height: 70 mm.
• Max.cutting height at 45°: 60 mm.
• Main saw blade diameter: 300 mm / 30 mm.
• Scoring saw blade diameter: 120 mm / 20 mm.
• Speed of main saw shaft: 4000-6000 r / min.
• Main saw shaft diameter: 30 mm.
• Speed of scoring saw shaft: 7000-8000 r / min.
• Scoring saw shaft diameter: 20 mm.
• Motor power: 4 KW + 0.75 KW.
• Tilting saw blade: 0° - 45°.
• Overall dimensions: 2800 x 1100 x 1200 mm (3000 / 3200).
• Gross weight: 500 kg (520 / 600).
