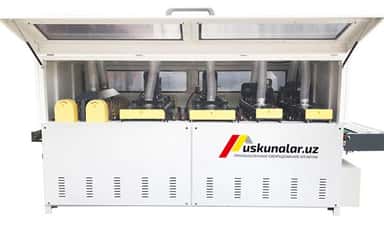

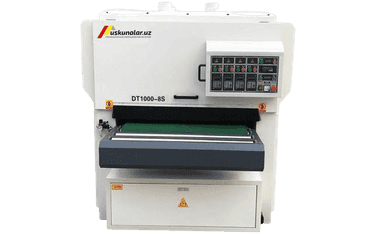

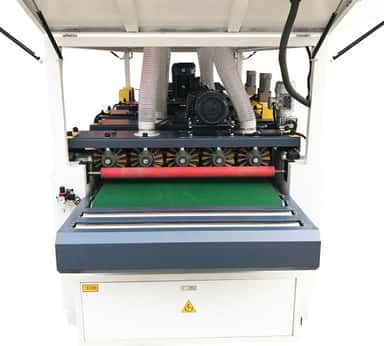

Polishing machine US-DT1000-8S (Z2Y2Y2H2)

Polishing machine US-DT1000-8S (Z2Y2Y2H2).

Technical parameters of the equipment:

• Model: US-DT1000-8S (Z2Y2Y2H2).
• Roller and disc quantity: 2 rows wheels + 2 rows plates + 2 rows plates + 2 rows rollers.
• Max sanding width: 1000 mm.
• Polishing thickness: 10 mm ~ 150 mm.
• Min polishing length: 350 mm.
• Polishing speed: 5 ~ 20 m / min.
• Polishing roller diameter: 300 mm.
• Motor power: 12.82 KW.
• Polishing roller motor power: 2.2 KW x 2.
• Roller swing motor power: 0.55 KW.
• Conveyor control motor power: 1.5 KW.
• Lifting motor: 0.55 KW-RV40.
• Polishing plates power: 1.5 KW.
• Plates swing motor power: 0.55 KW.
• Dimensions: 4100 x 1730 x 1850 mm.
• Weight: 2800 kg.
