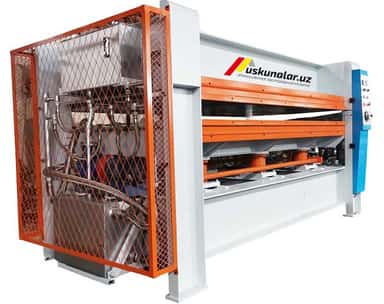

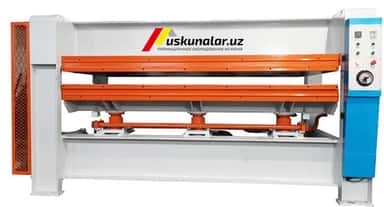

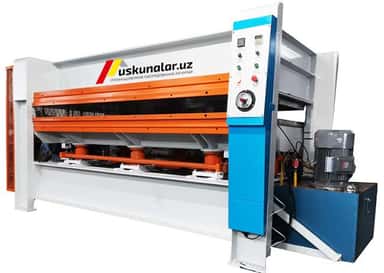

Name: 160 ton hydraulic hot press machine US-MH3848X160T
SKU: 575
Price: 26000 USD
Availability: PreOrder

This US-MH3848X160T model woodworking 160 ton hydraulic hot press machine consumes a total of 27 KW per hour in the pipe heating process, and the size of the hot press plate is 1300 x 2500 x 42 mm. The maximum pressing pressure of the equipment was 160 tons and the number of pressing plates was 1 piece. The number and diameter of hydraulic cylinders in this equipment is ɸ100 x 8, and the hydraulic pressure is 254 kg / cm². In addition, the maximum opening of this equipment in pressing is 380 mm. The overall dimensions of the equipment are 3700 x 1660 x 2100 mm, and the weight is approximately 6485 kg.

1.	Model	US-MH3848X160T (1 layer)	US-MH3848X160T (2 layers)	US-MH3848X160T (3 layers)
2.	Max pressure	160 T	160 T	160 T
3.	Working layer	1 layer	2 layers	3 layers
4.	Heating pipe power	27 KW	45 KW	54 KW
5.	Hot oil pump power	1.5 KW	2.2 KW	2.2 KW
6.	Hydraulic motor	5.5 KW	5.5 KW	5.5 KW
7.	Max opening	380 mm	170 mm	100 mm
8.	Press plate size	1300 x 2500 x 42 mm	1300 x 2500 x 42 mm	1300 x 2500 x 42 mm
9.	Pressure of hydraulic	254 kg / cm²	254 kg / cm²	254 kg / cm²
10.	Hydraulic cylinder	ɸ100 x 8 pcs	ɸ100 x 8 pcs	ɸ100 x 8 pcs
11.	Overall dimension	3700 x 1660 x 2100 mm	3700 x 1660 x 2100 mm	3700 x 1660 x 2100 mm
12.	Net weight	6485 kg	7400 kg	8500 kg
