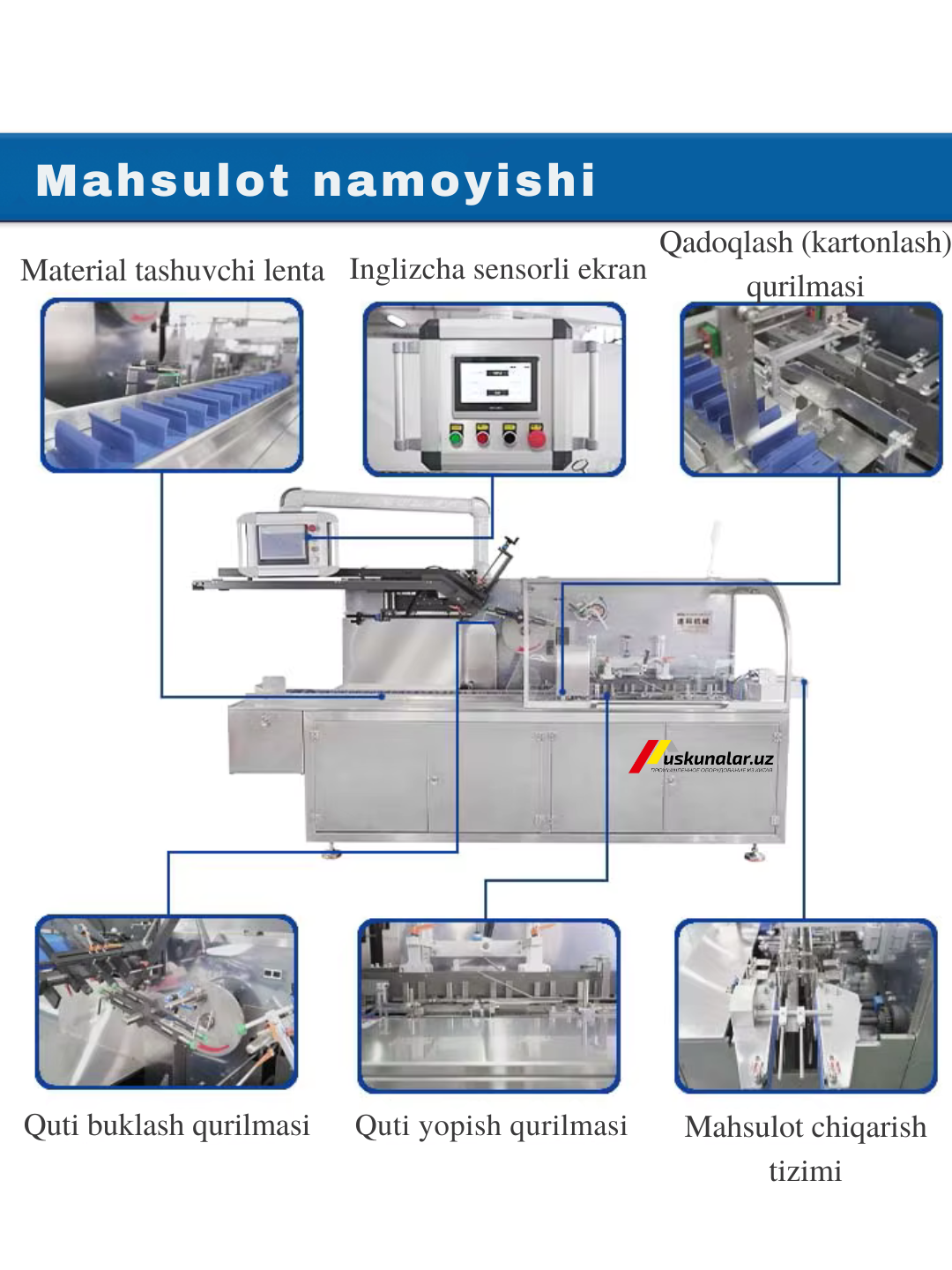

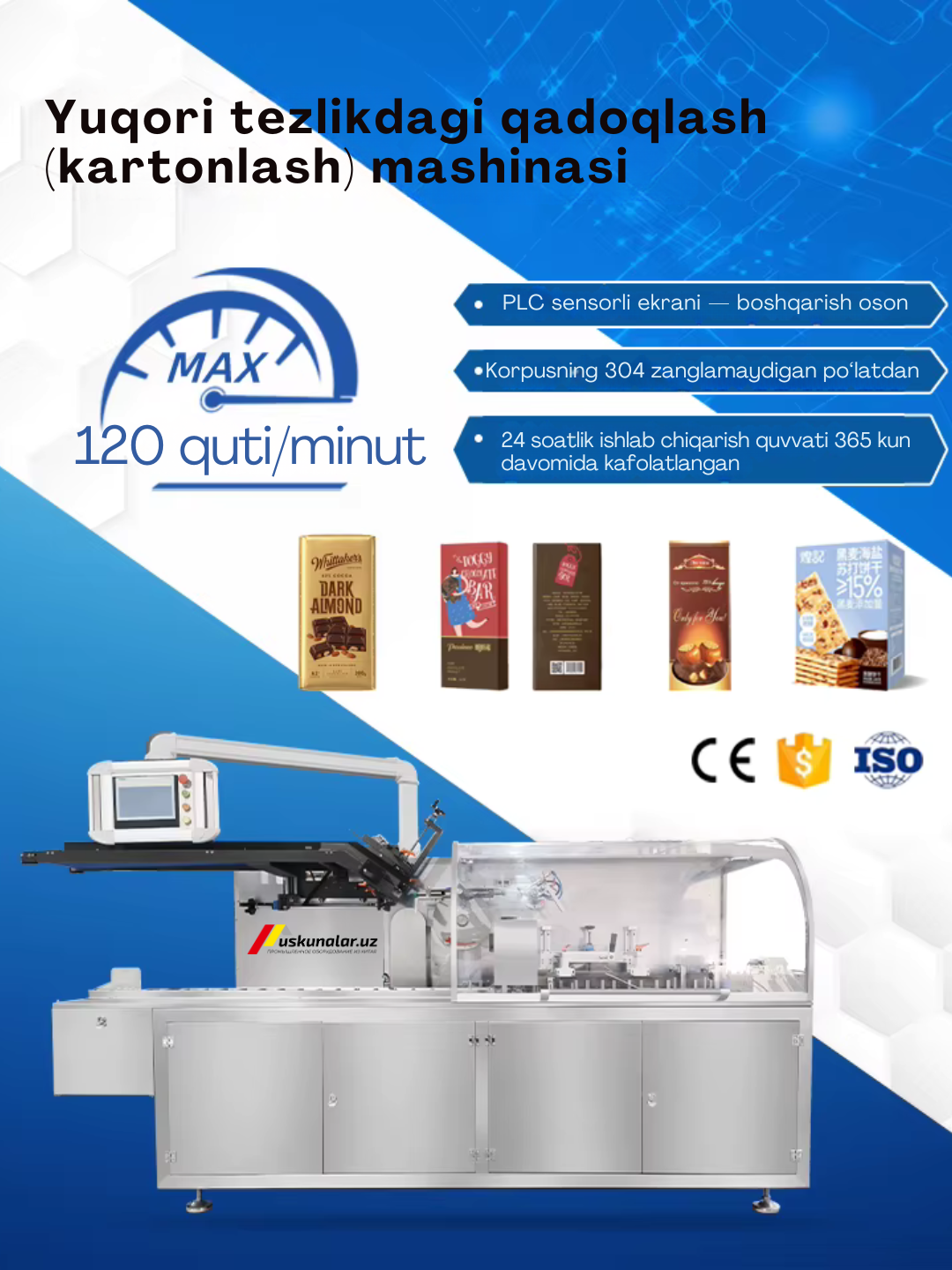

Automatic Carton Packing Equipment USZH-1990 | Carton Packaging, Box Filling, Cosmetics and Food Products

The USZH-1990 automatic carton packing equipment is a high-speed, precision-controlled system built from SUS304 stainless steel. It is ideal for the pharmaceutical, cosmetic, food, and daily chemical industries, automating production and ensuring consistent product quality.

---

📦 Scope of Application

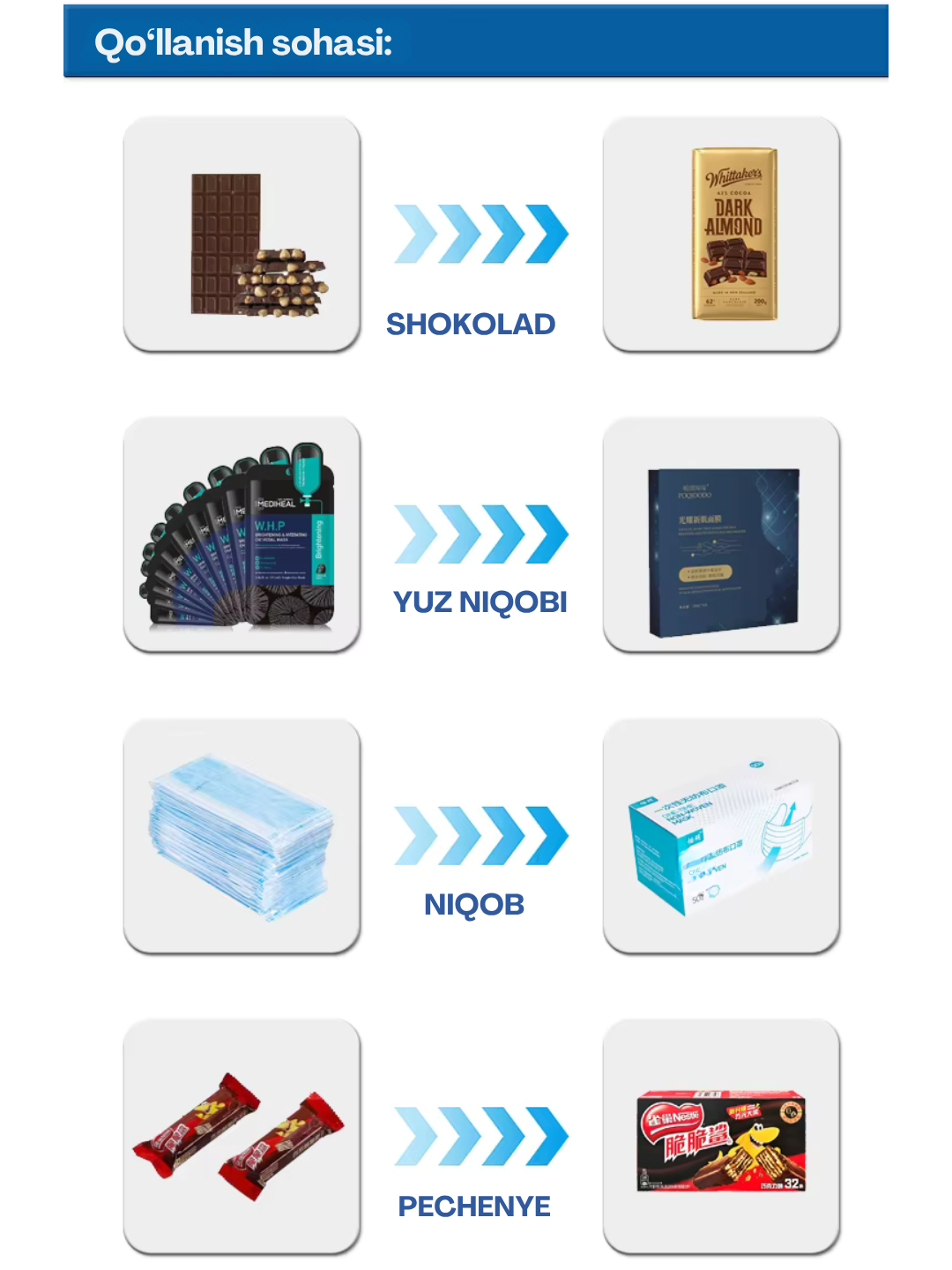

Designed for automatically packing shampoo, soap, cosmetics, toothpaste, medicines, food, and beverage products into cartons.

---

⚙️ Main Parameters

• Model: USZH-1990
• Packing speed: 120 boxes/min

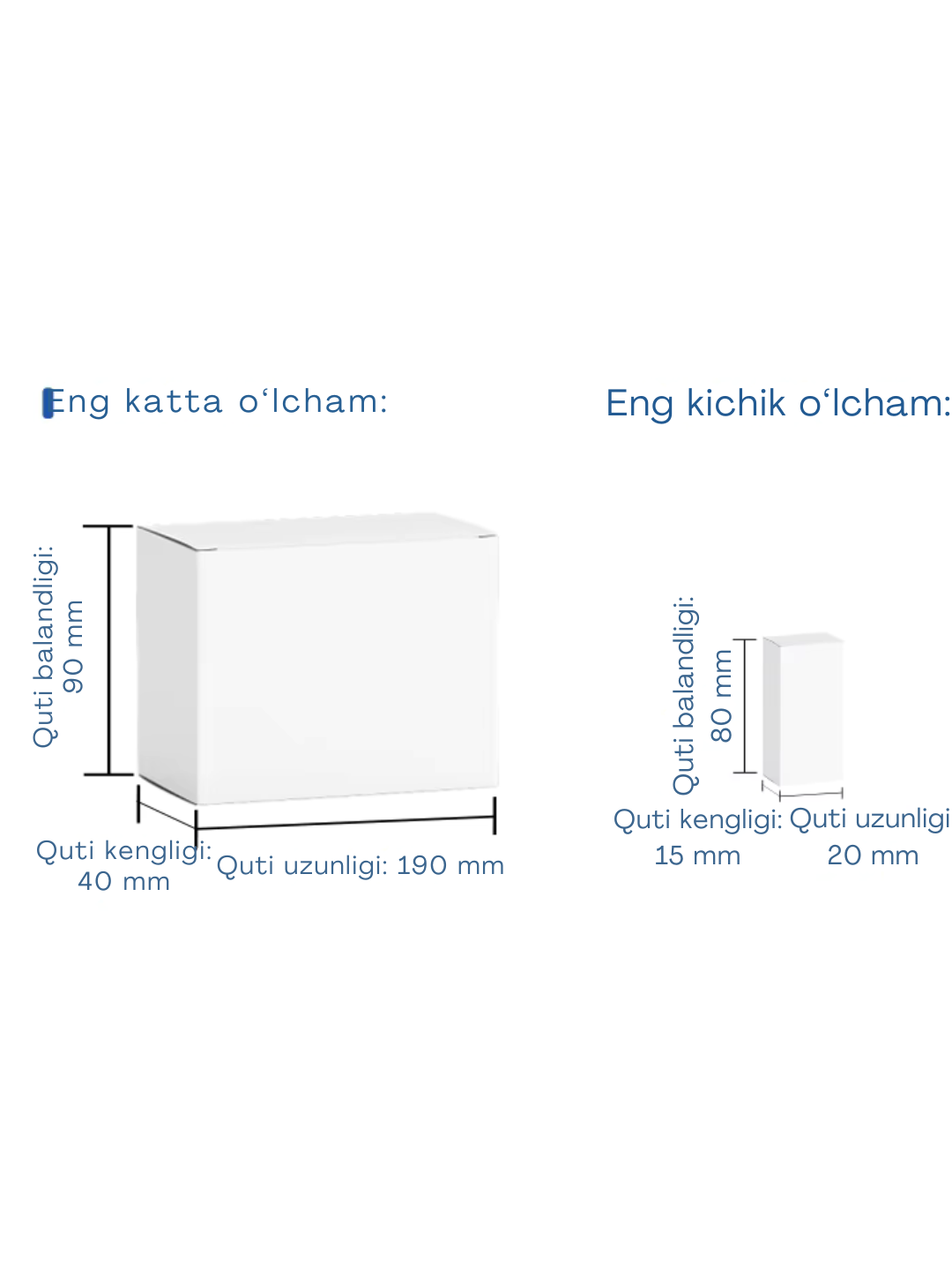

• Max box size: 190×90×40 mm
• Min box size: 80×20×15 mm
• Power: 2.075 kW
• Air pressure: 0.5–0.8 MPa
• Power supply: 380V, 50Hz
• Weight: 1500 kg
• Noise level: ≤ 80 dB
• Dimensions (L×W×H): 3316 × 1230 × 1884 mm

---

⭐ Advantages

• High packing speed and precision

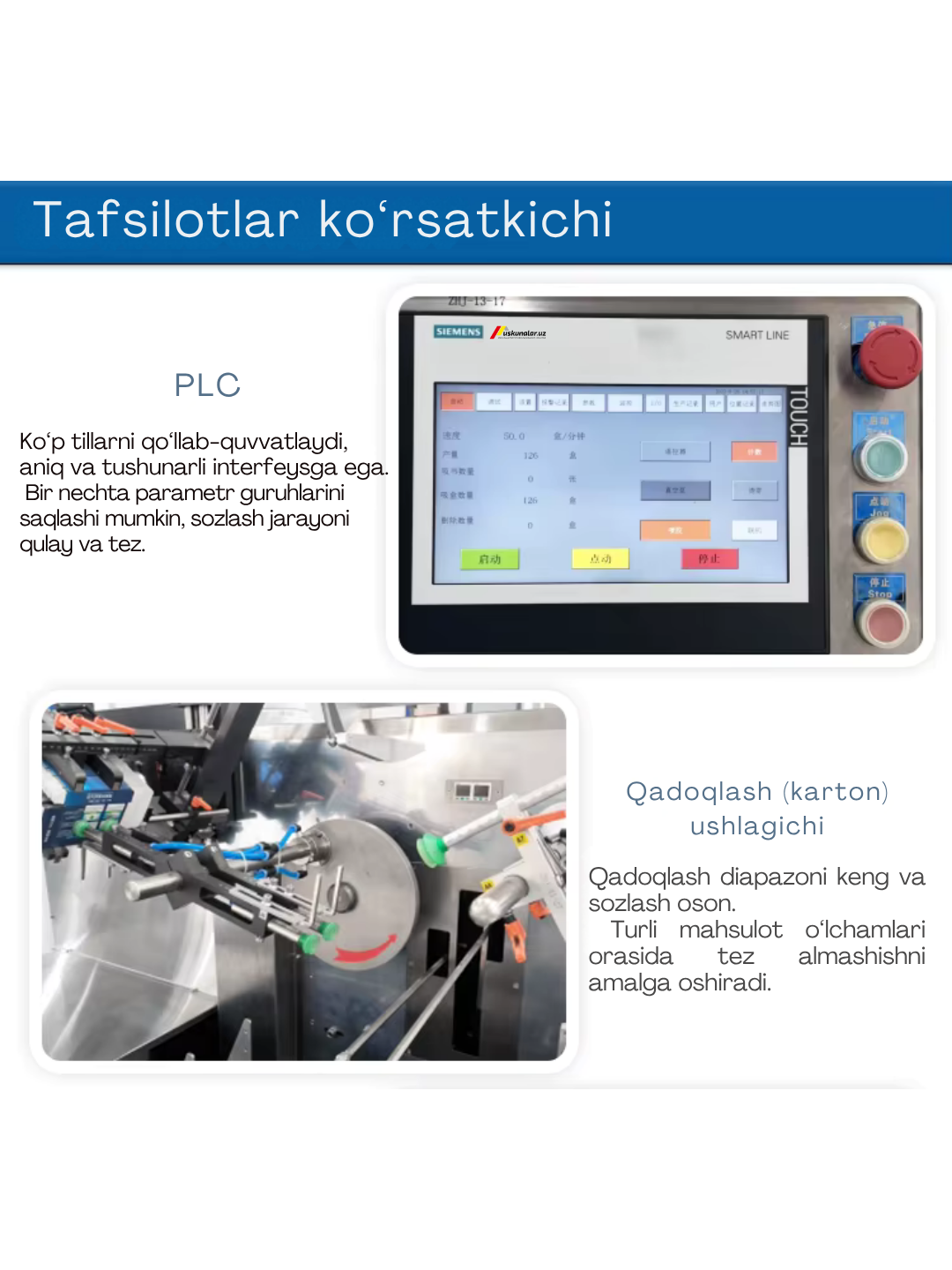

• Easy operation via touch screen
• Durable SUS304 stainless steel construction
• Energy-saving, safe, and reliable design

---

🔚 Conclusion

USZH-1990 is the ultimate solution for efficient, precise, and fully automated carton packaging in modern production lines.
