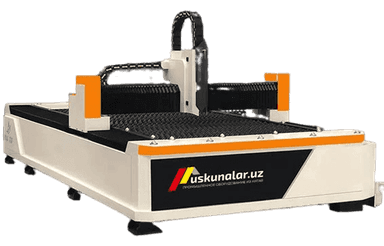

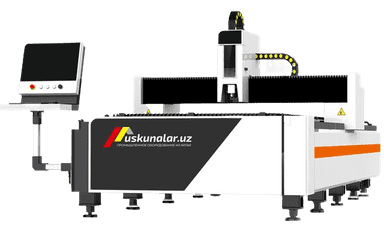

Fiber laser cutting machine US-HX-3015-1500W

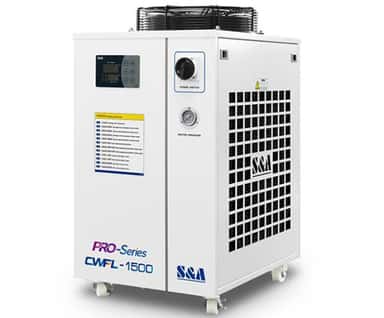

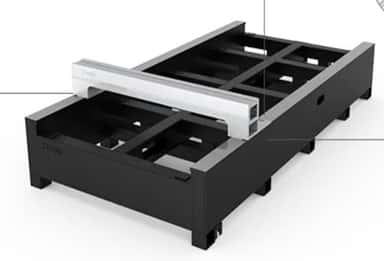

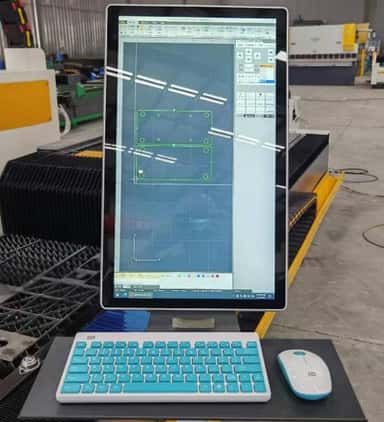

This US-HX-3015-1500W model optical fiber laser metal cutting machine is a powerful and reliable tool for metal processing. The appearance of the equipment is simple, reliable, efficient and low-noise operation, integrated design, and its components are of the highest quality. This equipment is suitable for the cutting of stainless steel, aluminum plate, carbon steel, alloy steel, silicon steel, spring steel, galvanized plate, pickling plate and other metal plate. This equipment has a power of 35 KW and operates at 220 V ± 5 % voltage. The metal processing area in the equipment is 3000 x 1500 mm, and the maximum cutting thickness is 16 mm. The air pressure of the equipment is 1.2 MPa. The equipment consists of HD tablet computer, Au3tech professional control system, convenient and flexible remote control, transmission and drive system, Reci 1500W fiber laser, CWFL-1500 chiller, Au3tech laser head and automatic oil injection system. The equipment is equipped with an Au3tech laser cutting head with automatic focus. And this equipment cuts black iron, metal up to 12 mm, and also has the ability to cut stainless steel up to 3 mm. The speed of free movement of the equipment is 100 meters per minute, and the working accuracy is 0.05 - 0.1 mm. Also, the pneumatic system in the equipment delivers air, oxygen or inert gas from external pipelines to the cutting zone and ensures high cutting quality. In addition, this laser equipment package includes a cooling generator to prevent overheating of the equipment components and a stabilizer that distributes the electrical energy correctly. The compact design of the Chiller CWFL-1500 in the equipment, along with stable operation, provides two different temperature control modes, strong flexibility. The equipment is also easy to use and maintain, making it a great choice for any metal processing project.



Technical indicators of the equipment:

• Model: US-HX-3015-1500W.
• Power: 35 KW.
• Voltage: 220 V ± 5%.
• Processing area: 3000 x 1500 mm.
• Maximum cut thickness: 16 mm.
• Cutting accuracy: 0.05 - 0.1 mm.
• Pressure: 1.2 Mpa.

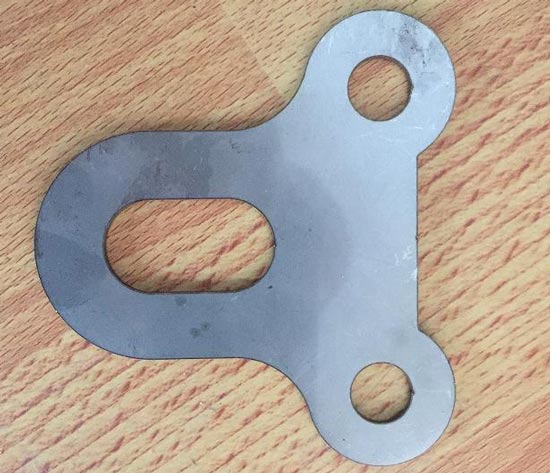

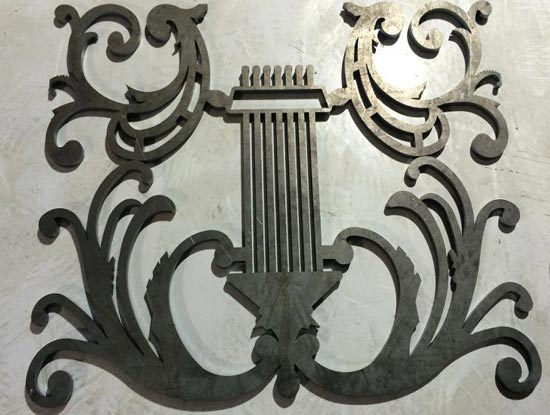

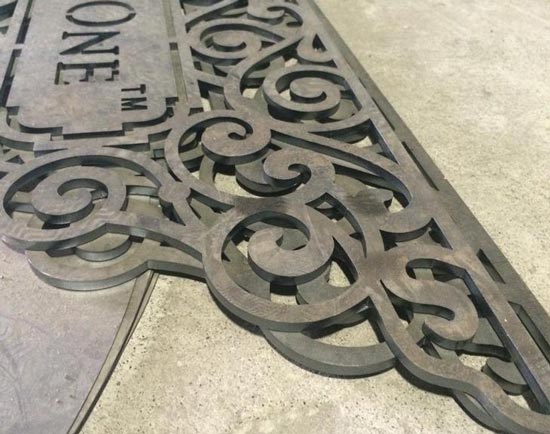

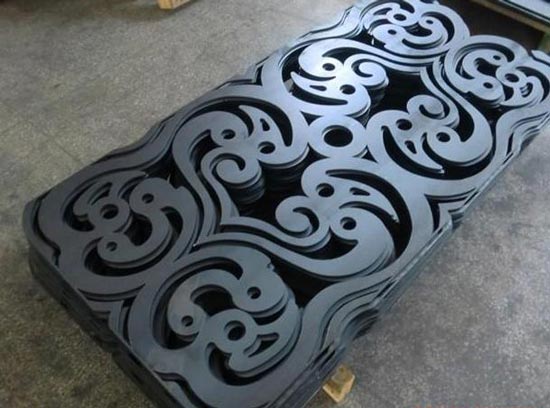

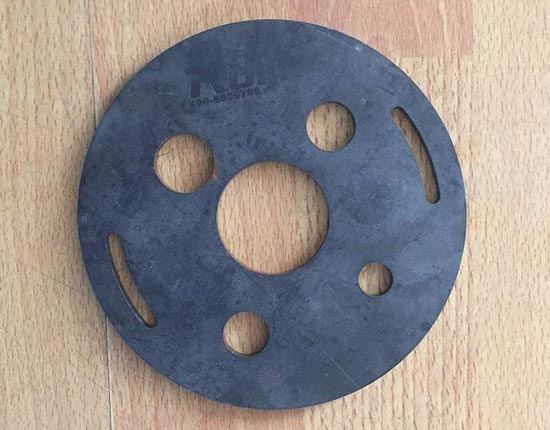

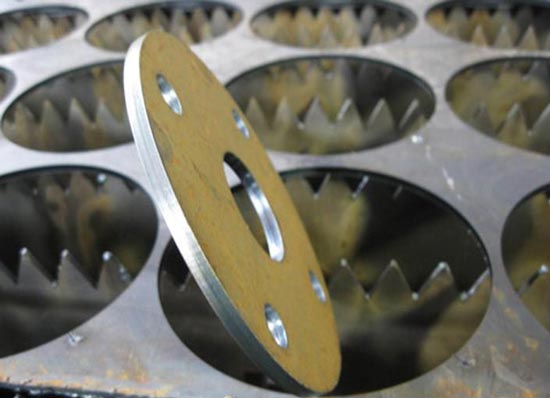

SAMPLES OF PRODUCTS
