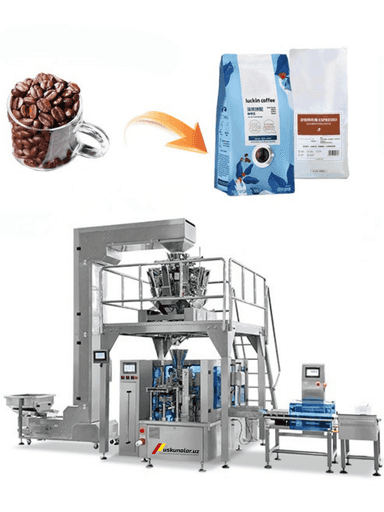

Multi-Functional Rotary Doypack Packaging Machine (20-60 bags/Min)

⚙️ Machine Introduction

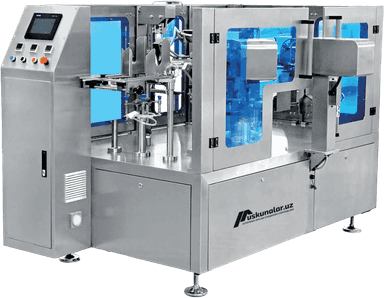

The USGD-200R premade pouch filling and sealing system is engineered for automated packing operations using pre-formed bags. Built with 8 working stations, this model delivers stable, continuous performance and supports medium- to high-volume production environments requiring reliable pouch handling.

⚙️ Products It Can Pack

This equipment is primarily designed for granular materials such as sugar, rice, beans, lentils, nuts, coffee beans, seeds, snacks, spices, pet food, fertilizer granules, detergent granules, plastic pellets, and similar free-flowing products. With a dosing range of 10–2500 g, it supports both small consumer packs and larger retail or industrial pouches with consistent accuracy.

⚙️ Bag Types and Formats

The system works with multiple pouch structures including gusset bags, four-side-seal pouches, fin-seal bags, zipper pouches, spout pouches, and similar designs. This flexibility allows manufacturers to produce various packaging styles on one line.

⚙️ Bag Size Range

Compatible pouch dimensions include widths from 80–200 mm and lengths from 100–350 mm. This range enables the production of compact retail packs and larger family-size packages without replacing major components.

⚙️ Output Capacity

Production speed reaches 20–60 bags per minute, depending on filling weight and product flow characteristics. The synchronized 8-station mechanism ensures smooth pouch feeding, filling, sealing, and discharge.

⚙️ Construction and Materials

All product-contact components are manufactured from 304 stainless steel, ensuring hygienic operation and durability. The total equipment weight is approximately 1400 kg, and the frame size measures 2170 × 1540 × 1430 mm, providing a stable industrial structure.

⚙️ Power and Utilities

The machine operates on 380V, 3-phase, 50/60 Hz power with total consumption of 3.5 kW. Required compressed air supply is ≥0.6 m³/min, supporting pneumatic motion for precise sealing and positioning.

⚙️ Sealing and Operation Control

The sealing pattern combines straight-line and mesh textures for strong closure and professional appearance. Noise emission remains at ≤70 dB, and station clamps can be adjusted simultaneously using a single control wheel for quick setup changes.
