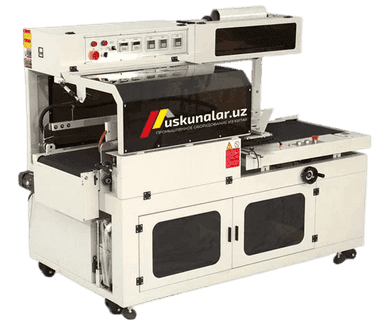

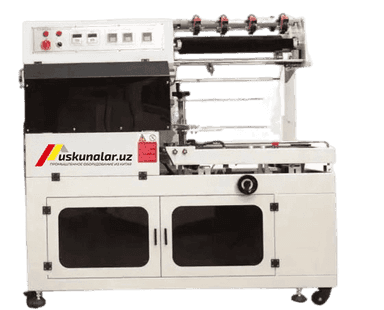

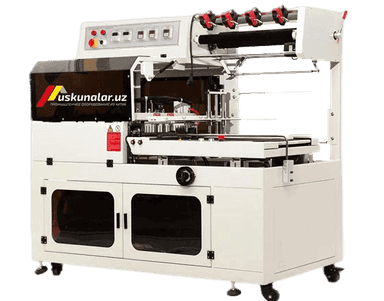

US-BF650L fully-automatic side sealer max package size 550 mm

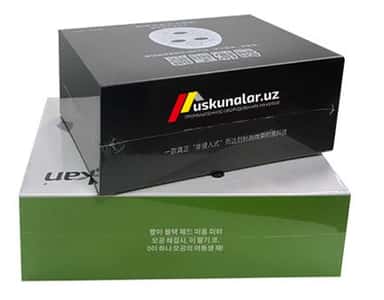

The US-BF650L fully-automatic side sealer machine is designed to wrap shrinkable film around products or packages for sealing and cutting operations, improving the display of products and increasing their aesthetic and value. It also provides protection from external impacts, moisture, pollution, and can prevent breakage of fragile items. This machine is suitable for heat-shrinkable packaging of glass bottles, plastic bottles, paper cups, and other containers in food, beverage, medicine, and cosmetics industries.

The US-BF650L  fully-automatic side sealing machine is an ideal choice for businesses looking for a reliable and efficient way to package their products. This automatic sealing machine is designed to provide a high-quality seal on a variety of materials, including POF / PE films.  It is capable of packing up to 25 bags per minute, a maximum package size of 550 mm. The cutter size is ∞ x 670 mm, and the conveyor width is 500 mm. The machine is powered by a 220 V / 50 - 60 Hz power source, with a power consumption of 1.45 KW. The machine dimensions are 2150 x 1130 x 1470 mm, and the outside packaging size is 2200 x 1240 x 1710 mm. The total weight of the machine is 420 kg.

It is easy to operate and maintain, and is capable of producing consistent results. The machine is also equipped with a variety of safety features, such as an emergency stop button and a safety guard. The machine is also designed to be energy efficient, helping to reduce energy costs. The machine is also equipped with a variety of safety features, and is designed to be energy efficient.



TECHNICAL PARAMETERS OF THE EQUIPMENTS
1.	Model	US-BF450L	US-BF550L	US-BF650L	US-BF750L	US-BF850L	US-BF950L
2.	Voltage	220 V / 50 - 60 Hz	220 V / 50 - 60 Hz	220 V / 50 - 60 Hz	220 V / 50 - 60 Hz	220 V / 50 - 60 Hz	220 V / 50 - 60 Hz
3.	Power	1.25 Kw	1.35 Kw	1.45 Kw	1.55 Kw	1.65 Kw	1.75 Kw
4.	Packing speed	15 - 25 bags / min	15 - 25 bags / min	15 - 25 bags / min	15 - 25 bags / min	15 - 25 bags / min	15 - 25 bags / min
5.	Max package size	≤350 mm	≤450 mm	≤550 mm	≤650 mm	≤750 mm	≤850 mm
6.	Cutter size	∞ x 470 mm	∞ x 570 mm	∞ x 670 mm	∞ x 770 mm	∞ x 870 mm	∞ x 970 mm
7.	Machine dimensions	1700 x 940 x 1450 mm	1950 x 1030 x 1470 mm	2150 x 1130 x 1470 mm	2350 x 1230 x 1470 mm	2550 x 1330 x 1470 mm	2750 x 1430 x 1470 mm
8.	Packaging dimensions	1750 x 980 x 1580 mm	2100 x 1140 x 1710 mm	2200 x 1240 x 1710 mm	2300 x 1340 x 1700 mm	2400 x 1440 x 1710 mm	2500 x 1540 x 1710 mm
9.	Applicable film	POF / PE	POF / PE	POF / PE	POF / PE	POF / PE	POF / PE
10.	Conveyor width	330 mm	430 mm	500 mm	600 mm	700 mm	800 mm
11.	Weight	324 kg	372 kg	420 kg	467 kg	517 kg	600 kg
