Name: Automatic plastic tube filling and sealing machine US-MIC R45
SKU: 703
Price: 16800 USD
Availability: PreOrder

The demand for perfumery and cosmetic products is increasing day by day. At the same time, this field continues to develop. This is a very good reason to start a cosmetic cream production and packaging business. The maximum working speed of this equipment is 40 pieces/min and 2400 pieces/min per hour. This equipment serves not only for the production of perfumery products but also for the packaging of creams and similar items necessary for the pharmaceutical industry.

Technical parameters
Model	US-MIC R45
Weight	450kg
Dimension	13509401580mm
Voltage	220V, 50HZ (can be customized)
Power	2 KW
Filling quantity	3-30ml/5-75ml/50-200ml
Capacity	Max. 40 tubes/min (2400 tubes/hour)
Air consumption	<30 m³/min
Heating power	400W
Suitable filling material	plastic tube
Compressed air	0.6-0.8Mpa
Material	stainless steel

Filling head
	Function: This mechanism serves to fill a plastic container with liquid.

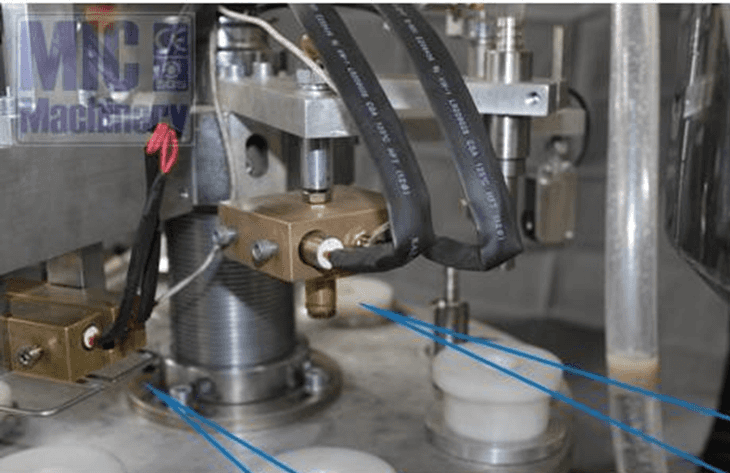

Heating heads
	This mechanism has 2 heating parts: internal and external It's contact heating and 2 heating heads melt the tube evenly.
Heating with hot air
	The heating mechanism heats up to 600 degrees and this mechanism sticks better than contact heating.

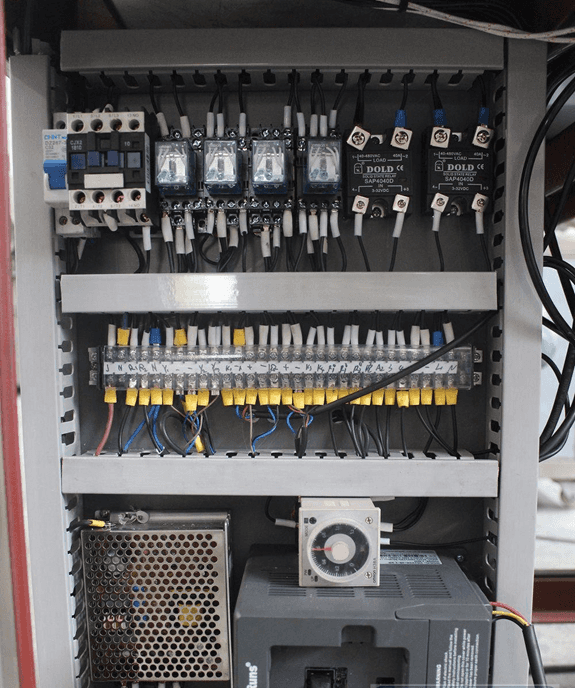

Power supply block
	Function: This unit supplies electricity to the equipment
Chiller
	Function: Water cooling system serves to cool the mold.
Extra pupm	Touch screen
