Name: CNC nesting machine (router) US-SX1325A-4
Brand: Uskunalar.uz
SKU: 730
Price: 11500 USD
Availability: PreOrder

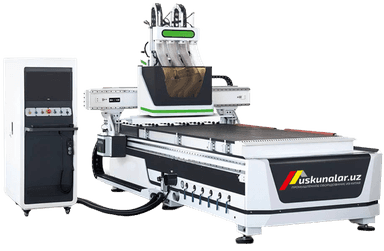

<p>This router serves for woodworking and serves as the main equipment in furniture production. The walking size is 1300*2500*200mm, and the working size is 1220*2440*150mm. The maximum operating speed of the equipment equipped with a servo motor is 25000mm/min.</p>

<p>&nbsp;</p>

<p><img alt="CNC nesting machine US-SX1325A-4" src="/media/uploads/2023/09/07/routerjpg.png" style="height:65100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>General parameters</strong></span></td>
		</tr>
		<tr>
			<td>Travelling size</td>
			<td>1300*2500*200mm</td>
		</tr>
		<tr>
			<td>Working size</td>
			<td>1220*2440*150mm</td>
		</tr>
		<tr>
			<td>Repeat positioning</td>
			<td>0.03mm</td>
		</tr>
		<tr>
			<td>Worktable</td>
			<td>vacuum worktable</td>
		</tr>
		<tr>
			<td>Shaft drive mode</td>
			<td>XY axis, Z</td>
		</tr>
		<tr>
			<td>Shaft power mode</td>
			<td>servo motor</td>
		</tr>
		<tr>
			<td>Max. travel speed</td>
			<td>50000mm/min</td>
		</tr>
		<tr>
			<td>Max. working speed</td>
			<td>25000mm/min</td>
		</tr>
		<tr>
			<td>Spindle power</td>
			<td>6kw*1+4.5kw *3 air cooling spindle</td>
		</tr>
		<tr>
			<td>Spindle speed</td>
			<td>18000 rpm</td>
		</tr>
		<tr>
			<td>Inverter</td>
			<td>7.5KW</td>
		</tr>
		<tr>
			<td>Vacuum pump</td>
			<td>7.5KW water vacuum</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>2300kg</td>
		</tr>
	</tbody>
</table>

<p>Этот фрезерный станок служит для обработки древесины и служит основным оборудованием в мебельном производстве. Ходовой размер 1300*2500*200 мм, рабочий размер 1220*2440*150 мм. Максимальная рабочая скорость оборудования, оснащенного серводвигателем, составляет 25000 мм/мин.</p>

<p>&nbsp;</p>

<p><img alt="Раскройный станок с ЧПУ US-SX1325A-4" src="/media/uploads/2023/09/07/routerjpg.png" style="height:65100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Общие параметры</strong></span></td>
		</tr>
		<tr>
			<td>Размер действия</td>
			<td>1300*2500*200мм</td>
		</tr>
		<tr>
			<td>Рабочий размер</td>
			<td>1220*2440*150мм</td>
		</tr>
		<tr>
			<td>Повторить местоположение</td>
			<td>0.03мм</td>
		</tr>
		<tr>
			<td>Рабочий стол</td>
			<td>вакуум</td>
		</tr>
		<tr>
			<td>Режим управления валом</td>
			<td>Ось XY, Z</td>
		</tr>
		<tr>
			<td>Режим мощности вала</td>
			<td>серводвигатель</td>
		</tr>
		<tr>
			<td>Макс. скорость движения</td>
			<td>50000 мм/мин</td>
		</tr>
		<tr>
			<td>Макс. скорость работы</td>
			<td>25000 мм/мин</td>
		</tr>
		<tr>
			<td>Мощность шпинделя</td>
			<td>6 кВт*1+4,5 ​​кВт *3 шпиндель воздушного охлаждения</td>
		</tr>
		<tr>
			<td>Скорость вращения шпинделя</td>
			<td>18000 об/мин</td>
		</tr>
		<tr>
			<td>Инвертор</td>
			<td>7,5 кВт</td>
		</tr>
		<tr>
			<td>Вакуумный насос</td>
			<td>7,5 кВт водяной вакуум</td>
		</tr>
		<tr>
			<td>Масса</td>
			<td>2300 кг</td>
		</tr>
	</tbody>
</table>

<p>Ushbu router yog&#39;ochga ishlov berish uchun xizmat qiladi va mebel ishlab chiqarishda asosiy uskuna vazifasini bajaradi. Yurish o&#39;lchami 1300*2500*200mm, ishlash o&#39;lchami esa 1220*2440*150mm ni tashkil qiladi. Servo motor bilan jihozlangan uskunaning maksimal ishlash tezligi 25000mm/min.</p>

<p>&nbsp;</p>

<p><img alt="CNC yog'ochga o'yma ishlov berish uskunasi US-SX1325A-4" src="/media/uploads/2023/09/07/routerjpg.png" style="height:65100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Umumiy parametrlar</strong></span></td>
		</tr>
		<tr>
			<td>Harakat o&#39;lchami</td>
			<td>1300*2500*200mm</td>
		</tr>
		<tr>
			<td>Ishlash o&#39;lchami</td>
			<td>1220*2440*150mm</td>
		</tr>
		<tr>
			<td>Joylashuvni takrorlash</td>
			<td>0.03mm</td>
		</tr>
		<tr>
			<td>Ish stoli</td>
			<td>vakumli</td>
		</tr>
		<tr>
			<td>Valni boshqarish rejimi</td>
			<td>XY o&#39;qli, Z</td>
		</tr>
		<tr>
			<td>Val quvvat rejimi</td>
			<td>servo motor</td>
		</tr>
		<tr>
			<td>Maks. harakat tezligi</td>
			<td>50000mm/min</td>
		</tr>
		<tr>
			<td>Maks. ishlash tezligi</td>
			<td>25000mm/min</td>
		</tr>
		<tr>
			<td>Shpindel quvvati</td>
			<td>6kw*1+4.5kw *3 havo sovutish shpindeli</td>
		</tr>
		<tr>
			<td>Shpindel tezligi</td>
			<td>18000 ob/min</td>
		</tr>
		<tr>
			<td>Inverter</td>
			<td>7.5KW</td>
		</tr>
		<tr>
			<td>Vakum nasos</td>
			<td>7.5KW suv vakumi</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>2300kg</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

This router serves for woodworking and serves as the main equipment in furniture production. The walking size is 1300*2500*200mm, and the working size is 1220*2440*150mm. The maximum operating speed of the equipment equipped with a servo motor is 25000mm/min.

Этот фрезерный станок служит для обработки древесины и служит основным оборудованием в мебельном производстве. Ходовой размер 1300*2500*200 мм, рабочий размер 1220*2440*150 мм. Максимальная рабочая скорость оборудования, оснащенного серводвигателем, составляет 25000 мм/мин.

Ushbu router yog'ochga ishlov berish uchun xizmat qiladi va mebel ishlab chiqarishda asosiy uskuna vazifasini bajaradi. Yurish o'lchami 1300*2500*200mm, ishlash o'lchami esa 1220*2440*150mm ni tashkil qiladi. Servo motor bilan jihozlangan uskunaning maksimal ishlash tezligi 25000mm/min.
