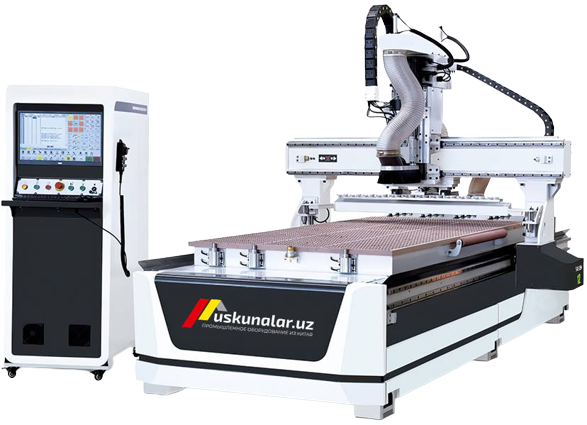

Name: Straight line milling equipment (router) US-SX1325A- 12
Brand: Uskunalar.uz
SKU: 732
Price: 12000 USD
Availability: PreOrder

<p>This US-SX1325A-12 milling machine is the most optimal equipment used in woodworking. The working area of the equipment is 1220*2440*150mm, it is equipped with a servo motor, the spindle speed is 24000 rpm, and the total weight of the equipment is 2300kg.</p>

<p>&nbsp;</p>

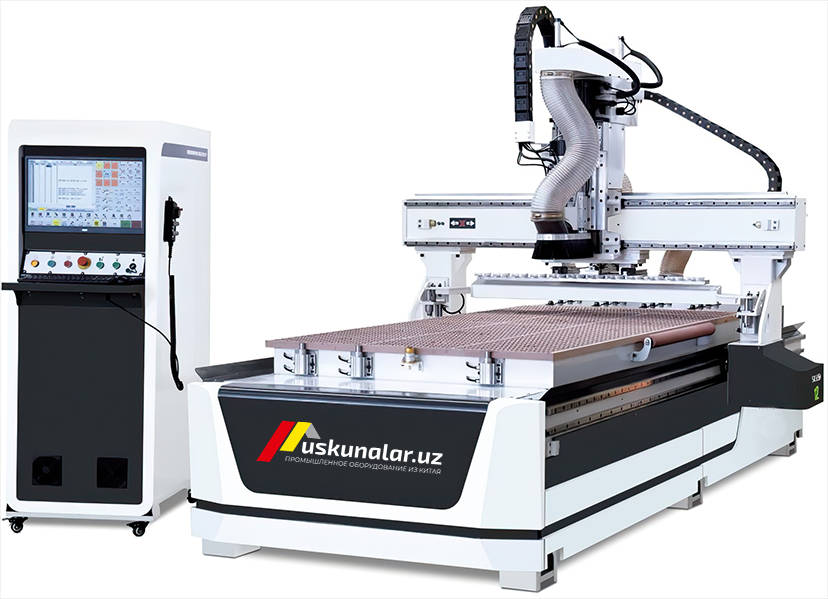

<p><img alt="Straight line milling equipment US-SX1325A- 12" src="/media/uploads/2023/09/07/555555555jpg.png" style="height:100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>General parameters</strong></span></td>
		</tr>
		<tr>
			<td>Travelling size</td>
			<td>1300*2500*200mm</td>
		</tr>
		<tr>
			<td>Working size</td>
			<td>1220*2440*150mm</td>
		</tr>
		<tr>
			<td>Repeat positioning</td>
			<td>0.03mm</td>
		</tr>
		<tr>
			<td>Worktable</td>
			<td>vacuum worktable</td>
		</tr>
		<tr>
			<td>Shaft drive mode</td>
			<td>XY axis, Z</td>
		</tr>
		<tr>
			<td>Shaft power mode</td>
			<td>servo motor</td>
		</tr>
		<tr>
			<td>Max. travel speed</td>
			<td>50000mm/min</td>
		</tr>
		<tr>
			<td>Max. working speed</td>
			<td>25000mm/min</td>
		</tr>
		<tr>
			<td>Spindle power</td>
			<td>9kw</td>
		</tr>
		<tr>
			<td>Spindle speed</td>
			<td>24000 rpm</td>
		</tr>
		<tr>
			<td>Inverter</td>
			<td>11KW</td>
		</tr>
		<tr>
			<td>Vacuum pump</td>
			<td>7.5KW water vacuum</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>2300kg</td>
		</tr>
	</tbody>
</table>

<p>Фрезерный станок US-SX1325A-12 является наиболее оптимальным оборудованием, используемым в деревообработке. Рабочая зона оборудования 1220*2440*150мм, оснащена серводвигателем, скорость шпинделя 24000 об/мин, общий вес оборудования 2300кг.</p>

<p>&nbsp;</p>

<p><img alt="Прямолинейное фрезерное оборудование US-SX1325A- 12" src="/media/uploads/2023/09/07/555555555jpg.png" style="height:100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Общие параметры</strong></span></td>
		</tr>
		<tr>
			<td>Размер действия</td>
			<td>1300*2500*200мм</td>
		</tr>
		<tr>
			<td>Рабочий размер</td>
			<td>1220*2440*150мм</td>
		</tr>
		<tr>
			<td>Повторить местоположение</td>
			<td>0.03мм</td>
		</tr>
		<tr>
			<td>Рабочий стол</td>
			<td>вакуум</td>
		</tr>
		<tr>
			<td>Режим управления валом</td>
			<td>Ось XY, Z</td>
		</tr>
		<tr>
			<td>Режим мощности вала</td>
			<td>серводвигатель</td>
		</tr>
		<tr>
			<td>Макс. скорость движения</td>
			<td>50000 мм/мин</td>
		</tr>
		<tr>
			<td>Макс. скорость работы</td>
			<td>25000 мм/мин</td>
		</tr>
		<tr>
			<td>Мощность шпинделя</td>
			<td>9кВт</td>
		</tr>
		<tr>
			<td>Скорость вращения шпинделя</td>
			<td>24000 об/мин</td>
		</tr>
		<tr>
			<td>Инвертор</td>
			<td>11кВт</td>
		</tr>
		<tr>
			<td>Вакуумный насос</td>
			<td>7,5 кВт водяной вакуум</td>
		</tr>
		<tr>
			<td>Масса</td>
			<td>2300 кг</td>
		</tr>
	</tbody>
</table>

<p>Ushbu US-SX1325A- 12 frezerlash uskunasi yog&#39;ochga ishlov berishda qo&#39;llaniladigan eng optimal uskuna hisoblanadi. Uskunaning ish maydoni 1220*2440*150mm, servo motor bilan jihozlangan, shpindel tezligi 24000 ob/min va uskunaning umumiy vazni 2300kg ni tashkil etadi.&nbsp;</p>

<p>&nbsp;</p>

<p><img alt="To'g'ri chiziqli frezer uskunasi US-SX1325A- 12" src="/media/uploads/2023/09/07/555555555jpg.png" style="height:100%; width:100%" /></p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Umumiy parametrlar</strong></span></td>
		</tr>
		<tr>
			<td>Harakat o&#39;lchami</td>
			<td>1300*2500*200mm</td>
		</tr>
		<tr>
			<td>Ishlash o&#39;lchami</td>
			<td>1220*2440*150mm</td>
		</tr>
		<tr>
			<td>Joylashuvni takrorlash</td>
			<td>0.03mm</td>
		</tr>
		<tr>
			<td>Ish stoli</td>
			<td>vakumli</td>
		</tr>
		<tr>
			<td>Valni boshqarish rejimi</td>
			<td>XY o&#39;qli, Z</td>
		</tr>
		<tr>
			<td>Val quvvat rejimi</td>
			<td>servo motor</td>
		</tr>
		<tr>
			<td>Maks. harakat tezligi</td>
			<td>50000mm/min</td>
		</tr>
		<tr>
			<td>Maks. ishlash tezligi</td>
			<td>25000mm/min</td>
		</tr>
		<tr>
			<td>Shpindel quvvati</td>
			<td>9kw</td>
		</tr>
		<tr>
			<td>Shpindel tezligi</td>
			<td>24000 ob/min</td>
		</tr>
		<tr>
			<td>Inverter</td>
			<td>11KW</td>
		</tr>
		<tr>
			<td>Vakum nasos</td>
			<td>7.5KW suv vakumi</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>2300kg</td>
		</tr>
	</tbody>
</table>

This US-SX1325A-12 milling machine is the most optimal equipment used in woodworking. The working area of the equipment is 1220*2440*150mm, it is equipped with a servo motor, the spindle speed is 24000 rpm, and the total weight of the equipment is 2300kg.

Фрезерный станок US-SX1325A-12 является наиболее оптимальным оборудованием, используемым в деревообработке. Рабочая зона оборудования 1220*2440*150мм, оснащена серводвигателем, скорость шпинделя 24000 об/мин, общий вес оборудования 2300кг.

Ushbu US-SX1325A- 12 frezerlash uskunasi yog'ochga ishlov berishda qo'llaniladigan eng optimal uskuna hisoblanadi. Uskunaning ish maydoni 1220*2440*150mm, servo motor bilan jihozlangan, shpindel tezligi 24000 ob/min va uskunaning umumiy vazni 2300kg ni tashkil etadi.

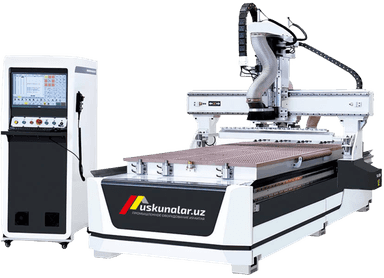

Straight line milling equipment (router) US-SX1325A- 12

Model:

Max. travel speed:

Workspace size:

Inverter:

Weight:

:

Similar Products

Get Updates!

Follow us on social media:

Catalog

Contact us

General parameters
Travelling size	13002500200mm
Working size	12202440150mm
Repeat positioning	0.03mm
Worktable	vacuum worktable
Shaft drive mode	XY axis, Z
Shaft power mode	servo motor
Max. travel speed	50000mm/min
Max. working speed	25000mm/min
Spindle power	9kw
Spindle speed	24000 rpm
Inverter	11KW
Vacuum pump	7.5KW water vacuum
Weight	2300kg
