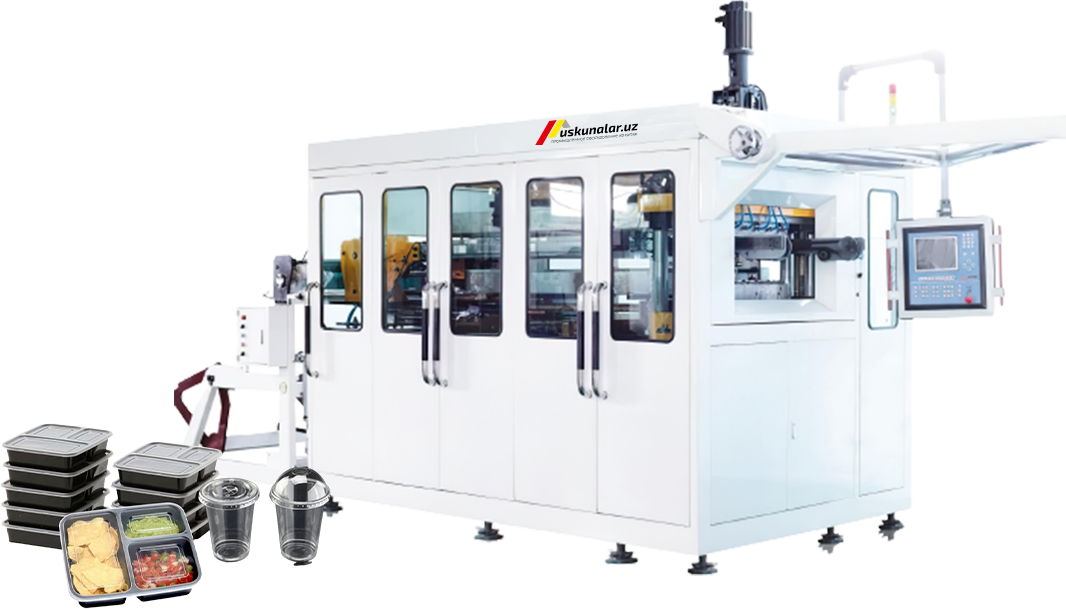

Name: Equipment for the production of plastic containers US-TQC-750
Brand: Uskunalar.uz
SKU: 739
Price: 55000 USD
Availability: PreOrder

<p>This US-TQC-750 plastic container production equipment is adapted to the production of disposable and packaging containers for certain products.&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Basic parameters</strong></span></td>
		</tr>
		<tr>
			<td>Model</td>
			<td>US-TQC-750</td>
		</tr>
		<tr>
			<td>Max. forming area</td>
			<td>750*480mm</td>
		</tr>
		<tr>
			<td>Max. forming depth</td>
			<td>125mm</td>
		</tr>
		<tr>
			<td>Sheet thickness</td>
			<td>0.3-1.8mm</td>
		</tr>
		<tr>
			<td>Sheet width</td>
			<td>760mm</td>
		</tr>
		<tr>
			<td>Max. forming speed</td>
			<td>35 times/min</td>
		</tr>
		<tr>
			<td>Air pressure</td>
			<td>0.6-0.8Mpa</td>
		</tr>
		<tr>
			<td>Air consumption</td>
			<td>3.0m<sup>3</sup>/min</td>
		</tr>
		<tr>
			<td>Water consumption</td>
			<td>0.7m<sup>3</sup>/min</td>
		</tr>
		<tr>
			<td>Rated power</td>
			<td>173KW</td>
		</tr>
		<tr>
			<td>Heating power</td>
			<td>146KW</td>
		</tr>
		<tr>
			<td>Power supply</td>
			<td>380V, 50Hz, 3 phases</td>
		</tr>
		<tr>
			<td>Dimension</td>
			<td>(L,W,H) 8500*2200*3200mm</td>
		</tr>
		<tr>
			<td>Weight</td>
			<td>6.5t</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Main parts of equipment</strong></span></td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-33-48_0Lzc7cv.png" style="height:100%; width:100%" /></td>
			<td>Industrial manual interface SIEMENS (Germany) and PLC provide a high level of automation, precise control and ease of operation. Document storage functionality simplifies operational processes.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-34-47.png" style="height:100%; width:100%" /></td>
			<td>The workstations are controlled by a stable structure with four guide columns (GCr15 steel, external surface plated with hard chrome). This part is durable and extends the life of the equipment.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-36-40.png" style="height:100%; width:100%" /></td>
			<td>YASKAWA stretch servo motor (Japan) controls the speed of the upper and lower mold, which can maintain the same force to ensure the bottom thickness of each cup is the same. In addition, the servo motor precisely controls the feeding of sheets to avoid wastage.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-38-09.png" style="height:100%; width:100%" /></td>
			<td>The hydraulically controlled system ensures sufficient movement speed and strong impact force.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-39-40.png" style="height:100%; width:100%" /></td>
			<td>The whole part is controlled by hydraulic system, which is reliable and stable. The use of a ROCKWELL (USA) contactless key ensures excellent mold positioning accuracy.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-41-09.png" style="height:100%; width:100%" /></td>
			<td>Vacuum insulation is added to the heater, which ensures fast response speed, short processing time and energy saving.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-45-35.png" style="height:100%; width:100%" /></td>
			<td>A sharp chain has higher strength, heat resistance and elasticity than steel.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-48-19.png" style="height:100%; width:100%" /></td>
			<td>This lubricator is self-lubricating for smooth and efficient operation.</td>
		</tr>
		<tr>
			<td><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-51-13.png" style="height:100%; width:100%" /></td>
			<td>The servo motor is YASKAWA brand made in Japan, its rated power is 3KW, which ensures stable performance during operation.</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><strong><span style="color:#ffffff">Product samples</span></strong></td>
		</tr>
		<tr>
			<td colspan="2"><img alt="Equipment for the production of plastic containers US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_18-03-49.png" style="height:100%; width:100%" /></td>
		</tr>
	</tbody>
</table>

<p>Это оборудование для производства пластиковых контейнеров US-TQC-750 адаптировано для производства одноразовой и упаковочной тары для определенных продуктов.&nbsp;</p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Общие параметры</strong></span></td>
		</tr>
		<tr>
			<td>Модель</td>
			<td>US-TQC-750</td>
		</tr>
		<tr>
			<td>Макс. площадь формирования</td>
			<td>750*480мм</td>
		</tr>
		<tr>
			<td>Макс. глубина формования</td>
			<td>125мм</td>
		</tr>
		<tr>
			<td>Толщина каждого слоя</td>
			<td>0.3-1.8мм</td>
		</tr>
		<tr>
			<td>Ширина каждого этажа</td>
			<td>760мм</td>
		</tr>
		<tr>
			<td>Макс. рабочая скорость</td>
			<td>35 раз/мин</td>
		</tr>
		<tr>
			<td>Давление воздуха</td>
			<td>0,6-0,8 МПа</td>
		</tr>
		<tr>
			<td>Расход воздуха</td>
			<td>3.0м<sup>3</sup>/мин</td>
		</tr>
		<tr>
			<td>Расход воды</td>
			<td>0.7м<sup>3</sup>/мин</td>
		</tr>
		<tr>
			<td>Номинальная мощность</td>
			<td>173кВт</td>
		</tr>
		<tr>
			<td>Мощность нагрева</td>
			<td>146кВт</td>
		</tr>
		<tr>
			<td>Напряжение</td>
			<td>380В, 50Гц, 3 фазы</td>
		</tr>
		<tr>
			<td>Размер</td>
			<td>8500*2200*3200мм</td>
		</tr>
		<tr>
			<td>Вес</td>
			<td>6,5т</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Основные части оборудования</strong></span></td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-33-48_0Lzc7cv.png" style="height:100%; width:100%" /></td>
			<td>Промышленный ручной интерфейс SIEMENS (Германия) и ПЛК обеспечивают высокий уровень автоматизации, точное управление и удобство эксплуатации. Функциональность хранения документов упрощает операционные процессы.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-34-47.png" style="height:100%; width:100%" /></td>
			<td>Рабочие станции управляются устойчивой конструкцией с четырьмя направляющими колоннами (сталь GCr15, внешняя поверхность покрыта твердым хромом). Эта деталь долговечна и продлевает срок службы техники.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-36-40.png" style="height:100%; width:100%" /></td>
			<td>Серводвигатель растяжения YASKAWA (Япония) контролирует скорость верхней и нижней формы, которая может сохранять одинаковое усилие, чтобы гарантировать одинаковую толщину дна каждой чашки. Кроме того, серводвигатель точно контролирует подачу листов, чтобы избежать потерь.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-38-09.png" style="height:100%; width:100%" /></td>
			<td>Система с гидравлическим управлением обеспечивает достаточную скорость движения и сильную силу удара.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-39-40.png" style="height:100%; width:100%" /></td>
			<td>Вся деталь контролируется гидравлической системой, которая надежна и стабильна. Использование бесконтактного ключа ROCKWELL (США) обеспечивает превосходную точность позиционирования пресс-формы.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-41-09.png" style="height:100%; width:100%" /></td>
			<td>К нагревателю добавлена ​​вакуумная изоляция, что обеспечивает быструю скорость срабатывания, короткое время обработки и экономию энергии.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-45-35.png" style="height:100%; width:100%" /></td>
			<td>Острая цепь имеет более высокую прочность, термостойкость и эластичность, чем стальная.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-48-19.png" style="height:100%; width:100%" /></td>
			<td>Этот лубрикатор является самосмазывающимся, что обеспечивает плавную и эффективную работу.</td>
		</tr>
		<tr>
			<td><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-51-13.png" style="height:100%; width:100%" /></td>
			<td>Серводвигатель принадлежит бренду YASKAWA, произведенному в Японии, его номинальная мощность составляет 3 кВт, что обеспечивает стабильную работу во время работы.</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><strong><span style="color:#ffffff">Образцы продукции</span></strong></td>
		</tr>
		<tr>
			<td colspan="2"><img alt="Оборудование для производства пластиковой тары US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_18-03-49.png" style="height:100%; width:100%" /></td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<p>Ushbu US-TQC-750plastik idishlar ishlab chiqarish uskunasi bir martalik va ma&#39;lum mahsulotlar uchun qadoq vazifasini bajaruvchi idishlar &nbsp;ishlab chiqarishga moslashgan.&nbsp;</p>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Umumiy parametrlar</strong></span></td>
		</tr>
		<tr>
			<td>Model</td>
			<td>US-TQC-750</td>
		</tr>
		<tr>
			<td>Maks. shakllantirish maydoni</td>
			<td>750*480mm</td>
		</tr>
		<tr>
			<td>Maks. shakllantirish chuqurligi</td>
			<td>125mm</td>
		</tr>
		<tr>
			<td>Har bir qavat qalinligi</td>
			<td>0.3-1.8mm</td>
		</tr>
		<tr>
			<td>Har bir qavat eni</td>
			<td>760mm</td>
		</tr>
		<tr>
			<td>Maks. ishlash tezligi</td>
			<td>35 marta/min</td>
		</tr>
		<tr>
			<td>Havo bosimi</td>
			<td>0.6-0.8Mpa</td>
		</tr>
		<tr>
			<td>Havo iste&#39;moli</td>
			<td>3.0m<sup>3</sup>/min</td>
		</tr>
		<tr>
			<td>Suv iste&#39;moli</td>
			<td>0.7m<sup>3</sup>/min</td>
		</tr>
		<tr>
			<td>Nominal quvvat</td>
			<td>173KW</td>
		</tr>
		<tr>
			<td>Qizdirish quvvati</td>
			<td>146KW</td>
		</tr>
		<tr>
			<td>Kuchlanishi</td>
			<td>380V, 50Hz, 3 faza</td>
		</tr>
		<tr>
			<td>O&#39;lchami</td>
			<td>(U,E,B) 8500*2200*3200mm</td>
		</tr>
		<tr>
			<td>Vazni</td>
			<td>6.5t</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><span style="color:#ffffff"><strong>Uskunaning asosiy qismlari</strong></span></td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-33-48_0Lzc7cv.png" style="height:100%; width:100%" /></td>
			<td>SIEMENS (Germaniya) kompaniyasining sanoat qo&#39;lda interfeysi va PLC yuqori darajadagi avtomatlashtirish, aniq boshqarish va qulay ishlashni ta&#39;minlaydi. Hujjatlarni saqlash funksiyasi operatsion jarayonlarni soddalashtiradi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-34-47.png" style="height:100%; width:100%" /></td>
			<td>Ish stantsiyalari barqaror to&#39;rtta yo&#39;naltiruvchi ustunli (GCr15 po&#39;lat, tashqarisi qattiq xrom qoplangan) konstruktsiya bilan boshqariladi. Ushbu qism bardoshli va uskunaning ishlash muddatini uzaytiradi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-36-40.png" style="height:100%; width:100%" /></td>
			<td>YASKAWA (Yaponiya) ning cho&#39;zuvchi servomotori yuqori va pastki qolipning tezligini nazorat qiladi, bu har bir stakanning pastki qalinligi bir xil bo&#39;lishini ta&#39;minlash uchun bir xil kuchni saqlab turishi mumkin. Shuningdek, servo vosita isrofgarchilikka yo&#39;l qo&#39;ymaslik uchun varaqni ta&#39;minlashni aniq nazorat qiladi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-38-09.png" style="height:100%; width:100%" /></td>
			<td>Shlangi boshqariladigan tizim yetarli harakat tezligini va kuchli zarba kuchini ta&#39;minlaydi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-39-40.png" style="height:100%; width:100%" /></td>
			<td>Butun qism ishonchli va barqaror bo&#39;lgan gidravlik tizim tomonidan boshqariladi. ROCKWELL (AQSh) yaqinlik kalitidan foydalanish qolipni joylashtirishning mukammal aniqligiga olib keladi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-41-09.png" style="height:100%; width:100%" /></td>
			<td>Isitgichga vakuumli izolyatsiya qo&#39;shildi, bu tezkor javob tezligini, qisqa ishlov berish vaqtini va energiyani tejashni ko&#39;rsatadi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-45-35.png" style="height:100%; width:100%" /></td>
			<td>O&#39;tkir zanjir po&#39;latdan ko&#39;ra yuqori quvvatga, issiqlikka chidamliligi va elastikligiga ega.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-48-19.png" style="height:100%; width:100%" /></td>
			<td>Ushbu moylash uskunasi o&#39;zi avtomatik moylaydi, tekis va samarali ishlashni ta&#39;minlaydi.</td>
		</tr>
		<tr>
			<td><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_17-51-13.png" style="height:100%; width:100%" /></td>
			<td>Servo motor Yaponiyada ishlab chiqarilgan YASKAWA brendiga tegishli, nominal quvvati 3KW bo&#39;lib, ish jarayonida barqaror ishlashni ta&#39;minlaydi.</td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

<table border="1" cellpadding="1" cellspacing="1" style="width:100%">
	<tbody>
		<tr>
			<td colspan="2" style="background-color:#000000; text-align:center"><strong><span style="color:#ffffff">Mahsulotdan namunalar</span></strong></td>
		</tr>
		<tr>
			<td colspan="2"><img alt="Plastik idishlar ishlab chiqarish uskunasi US-TQC-750" src="/media/uploads/2023/09/18/image_2023-09-18_18-03-49.png" style="height:100%; width:100%" /></td>
		</tr>
	</tbody>
</table>

<p>&nbsp;</p>

This US-TQC-750 plastic container production equipment is adapted to the production of disposable and packaging containers for certain products. The working area of the equipment is 750*480mm, max. working depth 125mm, working speed 35 times/min, air pressure 0.6-0.8 Mpa, heating power 146KW and voltage 380V.

Это оборудование для производства пластиковых контейнеров US-TQC-750 адаптировано для производства одноразовой и упаковочной тары для определенных продуктов. Рабочая зона оборудования 750*480мм, макс. рабочая глубина 125 мм, рабочая скорость 35 раз/мин, давление воздуха 0,6-0,8 МПа, мощность нагрева 146 кВт и напряжение 380 В.

Ushbu US-TQC-750plastik idishlar ishlab chiqarish uskunasi bir martalik va ma'lum mahsulotlar uchun qadoq vazifasini bajaruvchi idishlar  ishlab chiqarishga moslashgan. Uskunaning ishlash maydoni 750*480mm, maks. ishlash chuqurligi 125mm, ishlash tezligi 35marta/min, havo bosimi 0.6-0.8 Mpa, qizdirish quvvati 146KW va kuchlanishi 380V.

Equipment for the production of plastic containers US-TQC-750

Model:

Max. speed of operation:

Heating capacity:

Power supply:

Dimension:

Similar Products

Get Updates!

Follow us on social media:

Catalog

Contact us

Basic parameters
Model	US-TQC-750
Max. forming area	750*480mm
Max. forming depth	125mm
Sheet thickness	0.3-1.8mm
Sheet width	760mm
Max. forming speed	35 times/min
Air pressure	0.6-0.8Mpa
Air consumption	3.0m³/min
Water consumption	0.7m³/min
Rated power	173KW
Heating power	146KW
Power supply	380V, 50Hz, 3 phases
Dimension	(L,W,H) 850022003200mm
Weight	6.5t

Main parts of equipment
	Industrial manual interface SIEMENS (Germany) and PLC provide a high level of automation, precise control and ease of operation. Document storage functionality simplifies operational processes.
	The workstations are controlled by a stable structure with four guide columns (GCr15 steel, external surface plated with hard chrome). This part is durable and extends the life of the equipment.
	YASKAWA stretch servo motor (Japan) controls the speed of the upper and lower mold, which can maintain the same force to ensure the bottom thickness of each cup is the same. In addition, the servo motor precisely controls the feeding of sheets to avoid wastage.
	The hydraulically controlled system ensures sufficient movement speed and strong impact force.
	The whole part is controlled by hydraulic system, which is reliable and stable. The use of a ROCKWELL (USA) contactless key ensures excellent mold positioning accuracy.
	Vacuum insulation is added to the heater, which ensures fast response speed, short processing time and energy saving.
	A sharp chain has higher strength, heat resistance and elasticity than steel.
	This lubricator is self-lubricating for smooth and efficient operation.
	The servo motor is YASKAWA brand made in Japan, its rated power is 3KW, which ensures stable performance during operation.

Product samples
