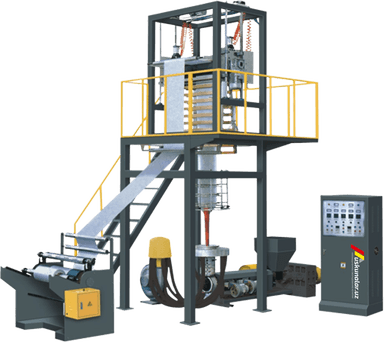

Name: A set of equipment for the production of polyethylene bags (Model B) US-SJ-60/FM 1000
SKU: 808
Availability: PreOrder

This equipment for the production of polyethylene bags belongs to the US-SJ-60/FM 1000 model and has a production capacity of 50 kg to 100 kg per hour. The thickness of the film is 0.008-0.10 mm, the weight of the equipment is 3500 kg and the size is 5.0 * 3.0 * 6.2 m. There are other models of this equipment in the description below, and their prices vary depending on the model.

Basic parameters
Model	US-SJ-50/FM 600	US-SJ-55/FM 800	US-SJ-60/FM 1000	US-SJ-65/FM 1200
Screw diameter	50 mm	55 mm	60 mm	65 mm
Screw diameter	10-120 rpm
Main motor power	18.5 kW	22 kW	30 kW	37 kW
Max. extrusion output	30-60 kg/hour	40-80 kg/hour	50-100 kg/hour	50-120 kg/hour
Max. folding width of film	600 mm	800 mm	1000 mm	1200 mm
Thickness of film	0.008-0.10 mm
Lift range of auxiliary machine	800 mm
Total power	37 kW	46 kW	58 kW	66 kW
Weight of machine	2600 kg	3000 kg	3500 kg	4200 kg
Dimension	4.6 * 2.6 * 5.5 m	4.8 * 2.8 * 5.7 m	*5.0 3.0 * 6.2 m**	5.2 * 3.2 * 6.5 m

Basic parameters
Model	US-SJ-50/FM 600	US-SJ-55/FM 800	US-SJ-60/FM 1000	US-SJ-65/FM 1200
Screw diameter	50 mm	55 mm	60 mm	65 mm
Screw diameter	10-120 rpm
Main motor power	18.5 kW	22 kW	30 kW	37 kW
Max. extrusion output	30-60 kg/hour	40-80 kg/hour	50-100 kg/hour	50-120 kg/hour
Max. folding width of film	600 mm	800 mm	1000 mm	1200 mm
Thickness of film	0.008-0.10 mm
Lift range of auxiliary machine	800 mm
Total power	37 kW	46 kW	58 kW	66 kW
Weight of machine	2600 kg	3000 kg	3500 kg	4200 kg
Dimension	4.6 * 2.6 * 5.5 m	4.8 * 2.8 * 5.7 m	*5.0 3.0 * 6.2 m**	5.2 * 3.2 * 6.5 m
